Inserta Tee Lateral Connections for Mainlines

Inserta Tee is a three-piece service connection consisting of a PVC hub, rubber sleeve and stainless steel band. Inserta Tee compression fits into the cored wall of a mainline and requires no special tooling except for the Inserta Tee hole saw bits. Inserta Tees are designed to connect 2” (51 mm) through 30” (750 mm) services to all known solid-wall, profile, closed profile and corrugated pipes manufactured today.

Inserta Tee 4
Inserta Tee 4
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4

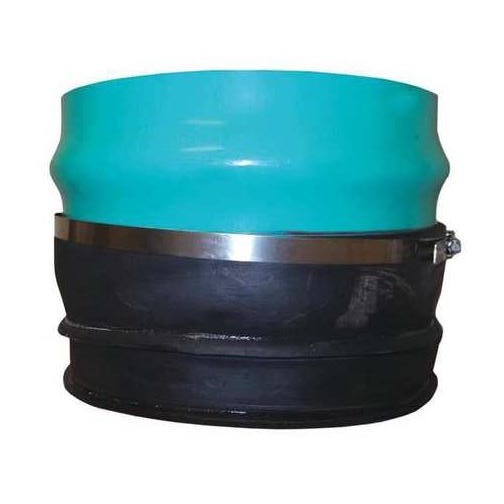

Inserta Tee 4" SDR35/SDR26 Connection Fitting

$313.25

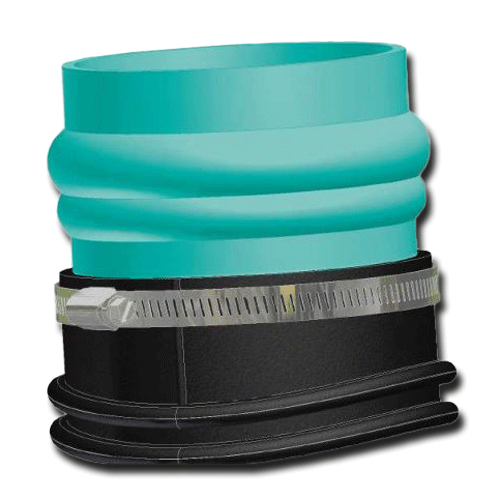

ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 4

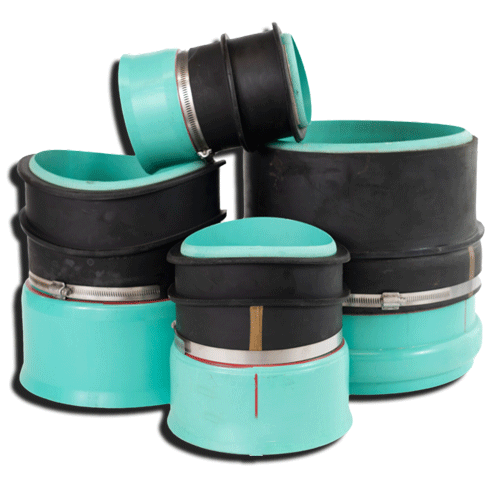

Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 4
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4

Inserta Tee 4" N12 Connection Fitting

$318.88
Inserta Tee 6
Inserta Tee 6
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6

Inserta Tee 6" SDR35/SDR26 Connection Fitting

$360.62
ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 8
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 8
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8

Inserta Tee 8" N12 Connection Fitting

$532.95
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6

Inserta Tee 6" IPS/ SCH40 Connection Fitting

$398.48
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4
Inserta Tee 4

Inserta Tee 4" IPS/ SCH40 Connection Fitting

$334.98
ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 6
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
ADS Inserta Tee fitting
Inserta Tee N12 Connection Fitting
Inserta Tee 6
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6
Inserta Tee 6

Inserta Tee 6" N12 Connection Fitting

$359.92
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
ADS Inserta Tee fitting
Inserta Tee SDR35 Connection Fitting
Inserta Tee 3 piece lateral pipe connection diagram
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8
Inserta Tee 8

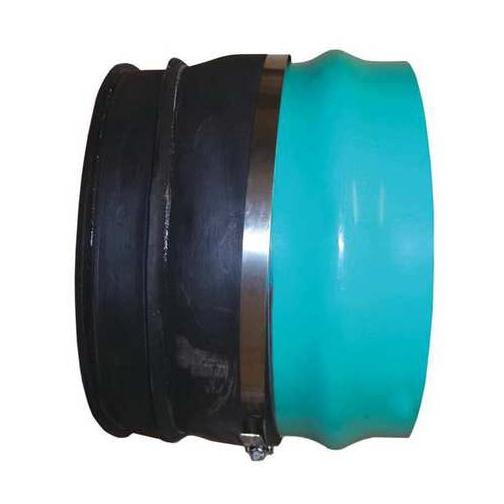

Inserta Tee 8" SDR35 Connection Fitting

$519.24
Inserta-Tee Logo
full Inserta tee product line IPS Schedule 40 corrugated pipe, sewer

Inserta Tee Manifold Adapters Fit any Mainline or Structure

Air-Testable,Watertight, and Versatile

The Inserta Tee system allows for tapping of existing lines without disturbing the bedding. It eliminates glues, epoxies, grout and awkward gaskets and the need to re-tighten bands around the mainline. These products are designed to match the internal radius of any pipe and services can be connected where needed. It allows for easier grading of the mainline while decreasing cost by reducing labor hours and pipe materials. Hole saws are available for sale for all sizes of Inserta Tees. Note: Using an installation method contrary to the steps detailed in the Inserta Tee installation instructions as well as using 3rd party hole saws will void the manufacturers warranty on the product.

Applications:

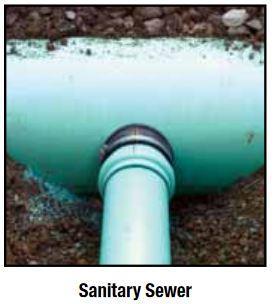

  • Sanitary Sewers
  • Storm Sewers
  • Fold-and-Formed
  • Wet Wells
  • Irrigation
  • Pipe Bursting (HDPE/PVC)
  • Catch Basins
  • Manholes
  • Cured-In-Place Products
  • Drainage
  • Slip-lining
  • Electrical Vaults Available 2009

Fittings For All Gravity Flow Pipe And Manholes

  • Ductile Iron
  • Fiberglass
  • PVC
  • Ultra Corr™
  • GOLDFLO®
  • Weholite®
  • DuroMaxx®
  • Spirolite
  • Hi Q®/Sure-Lok®
  • Vylon®
  • N-12®
  • Kor- Flo™
  • Asbestos Cement
  • Ultra Rib™
  • PermaLok
  • Corrugated Metal
  • Solflo® Max
  • Concrete
  • HP Storm
  • Pro 21®
  • Polyethylene
  • Truss
  • A2000
  • Clay
  • SaniTite® HP

Inserta Tee Comparison Chart

Inserta-tee is the premier lateral pipe connection fitting. Trusted by contractors and service workers nationwide because it offers things no other rubber fitting or saddle connection can.

The 3 part Inserta-tee can be installed for air-test compliance and its ease of installation remove the need for any type of specialized tooling. See below for a comparison between the Inserta-Tee and other other types of popular pipe connections.

Inserta tee fitting comparison chart

Inserta Tee in Action

Inserta Tee For Mainline Connections

Inserta Tee

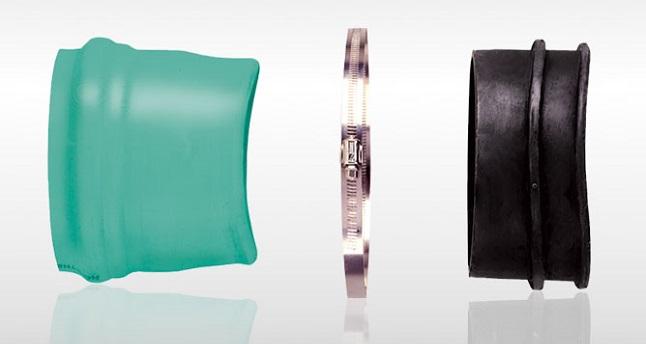

Inserta Tee is a 3-piece connection, made up of 3 units, the PVC hub, stainless steel band, and rubber sleeve. All three connect into the cored wall of the mainline and require no special tools.  It is designed to connect laterals to all acceptable solid walls, profiles, corrugated pipes, closed profiles, and manhole structures that are presently manufactured.

The Benefits Of Inserta Tee For New And Rehab Installations:

  • Reduce needed pipe materials and labor hours
  • Services are connected where needed
  • No need to disturb backfill
  • Fits all gravity flow pipes and manholes
  • Will match the pipe's internal radius or structure for minimal penetration

Inserta Tee eliminates the use of:

  • Glue, epoxies, and groat
  • You do not have to re-tighten the bands around the mainline
  • No awkward gaskets for slip lining, pipe bursting, and relining

Inserta Tee permits the following:

  • The simple installation does not need special equipment
  • Will not deal with bursting pipes, the connection is directly into the solid wall HDPE pipe

The Inserta Tee construction varies with the kind of pipe and size. OneFit is an Inserta Tee with an adjustable rubber sleeve that fits any mainline pipe.

What You Get with Inserta Tee and the OneFit Product:

You will get the same excellent performance that is dependable. This is a fitting you can count on.

  • It saves time and provides fast and efficient installation.
  • Save money, less materials, and less cost for labor

Applications for OneFit

  • Roof drain leaders
  • Storm sewers
  • Structures
  • Retention/Detention
  • Irrigation/Agriculture
  • All pipe types
  • Nyloplast® drain basins
  • Fiberlass manholes
  • Municipal repair/rehab
  • Rainwater harvesting
  • Sanitary sewers
  • Pipe bursting (HDPE/PVC)
  • Slip lining
  • Fold-and-formed products
  • Cured-in-place products
  • Manholes
  • Wet wells
  • Drainage
  • Catch basins
  • Electrical Vaults

Inserta Tee OneFit Product Specifications

This specification covers the 24”-24” (50 to 600 mm). The Inserta Tee service connection is used in gravity-flow sewers and drainage applications.

The product requirements for the Inserta Tee service connection must include a PVC hub, rubber sleeve, and stainless steel band. It's a compression that fits into the cored walls of a mainline pipe and the hub is made from strong PVC material. The stainless steel clamping assembly is made from a minimum of 301-grade steel.

When applicable, the rubber sleeve and gasket will meet the requirements of ASTM F477. The gaskets will be installed by the manufacturer. The water-based solution provided by the manufacturer will be used during the assembly. Do Not use pipe-lube.The Inserta Tee can be set up for any structure or mainline pipe.

Inserta Tee OneFit Product Specifications

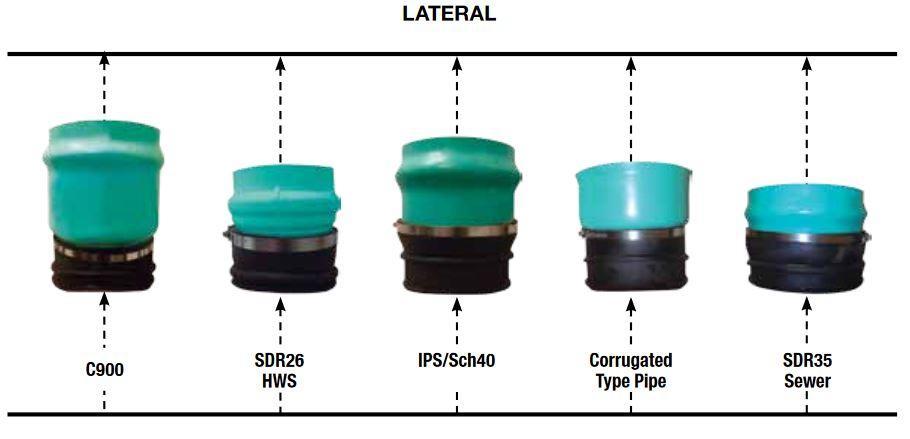

  • corrugated polyethylene,
  • corrugated polypropylene,
  • PVC C900,
  • SDR 26 HWS,
  • SDR 35 (gasketed bell,
  • SWR spigot & solvent weld bell),
  • IPS/Sch40 (gasketed bell & solvent weld bell) and corrugated PVC
  • SWR spigot & solvent weld bell),
  • IPS/Sch40 (gasketed bell & solvent weld bell) and corrugated PVC
  • SDR 26 HWS,
  • SDR 35 (gasketed bell,
  • SWR spigot & solvent weld bell),

Joint performance Inserta Tee products include a watertight bell connection that meets the requirements of ASTM D3212. The HDPE/PP installation for this product is the 3-piece service connection of a PVC Hub, Rubber Sleeve, and Stainless Steel Band.

The compression fits into the cored wall of the mainline and does not require any special tools. Inserta Tees are designed to connect to all solid walls, profiles, closed profiles, and corrugated pipes that are recently manufactured.


The Application

The Storm Sewers Sanitary Sewers Pipe Bursting (HDPE/PVC), Slip Lining Fold, and Formed Products that are cured-in-place, Manholes Wet Wells Drainage Irrigation Catch Basin Electrical Vaults  are:

  • 2” – 30” (51 - 750 mm) diameters available
  • Reduction in labor hours and pipe materials
  • Services to be connected where needed
  • Matching of the internal radius of your pipe or structure for minimal penetration
  • Watertight*, testable connection every time
  • Eliminates glues, epoxies, grout, tightening, and retightening of bands
  • No need to disturb backfill
  • No straps or clamps that require digging under the mainline pipe
  • No reinforcing bars or secondary clamps required

Inserta tee for trenchless technology

Inserta Tee fittings are the perfect solution to reconnect all of your laterals for pipe bursting, relining and CIPP projects. INSERTA TEE s provide the most efficient, cost-effective way to reinstate laterals in any gravity-flow, sewer or water application.

The versatility of INSERTA TEE allows you to locate and connect the laterals while ensuring the performance you need – every time. INSERTA TEE fittings meet all of the AST M standards for a watertight*, the air-testable connection you can rely on.

Inserta Tee OneFit
