Zurn ZF806 - Fiber Reinforced Polymer Trench Drain System

Zurn ZF806 - Fiber Reinforced Polymer Trench Drain System

Zurn ZF806 - Fiber Reinforced Polymer Trench Drain System

$2,625.00


FREE SHIPPING
SKU ZF806

The ZF806 is a sleek, high-performance trench drainage system designed for commercial and industrial settings. Featuring a 6″ channel width with a 4″ throat opening, it is constructed of fiberglass-reinforced polymer (FRP) for lightweight strength and corrosion resistance. The system includes a heavy-duty steel frame and modular sections that interlock for fast installation and alignment.

Key Features

  • 6″ wide reveal with 4″ throat, in long 10′ (or 120″) modular sections

  • Fiber-reinforced polymer channel body offers high durability and chemical resistance

  • Heavy-duty Z-frame or steel frame assembly supports load classes with robust mounting

  • Interlocking channel connections and installation accessories simplify layout and reduce labor

  • Smooth radiused bottom promotes efficient drainage and minimizes clogging

Note: Zurn trench drain products are subject to a $750 minimum order.


Downloads:

View Our Full Selection of Zurn Trench Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Chemical processing & industrial drainage

Zurn ZF806: An Overview

This guide breaks down what the Zurn ZF806 family is, when it fits, how to size it correctly, and how to avoid the most common install and maintenance issues—especially in chemical processing environments where corrosion resistance matters.

FRP channel body (fiberglass)
10' modular sections
6" wide reveal
4" throat
Class C-rated grate option

Table of Contents

What the Zurn ZF806 is (and where it’s used)

The Zurn ZF806 is a fiber reinforced polymer (FRP) linear trench drain system. FRP is essentially “reinforced fiberglass”—a composite that can be lighter than many metal channel bodies while still being rigid and well-suited for environments where certain chemicals, moisture, and corrosion are constant concerns.

Zurn positions the ZF806 line for demanding industrial and chemical processing drainage needs, where you want a modular channel that installs in long runs and supports removable grates for cleaning access.

Quick reality check: chemical resistance is never “one-size-fits-all.” Always confirm the specific chemical exposure (type, concentration, temperature, and contact time) against the manufacturer’s chemical resistance guidance before finalizing.

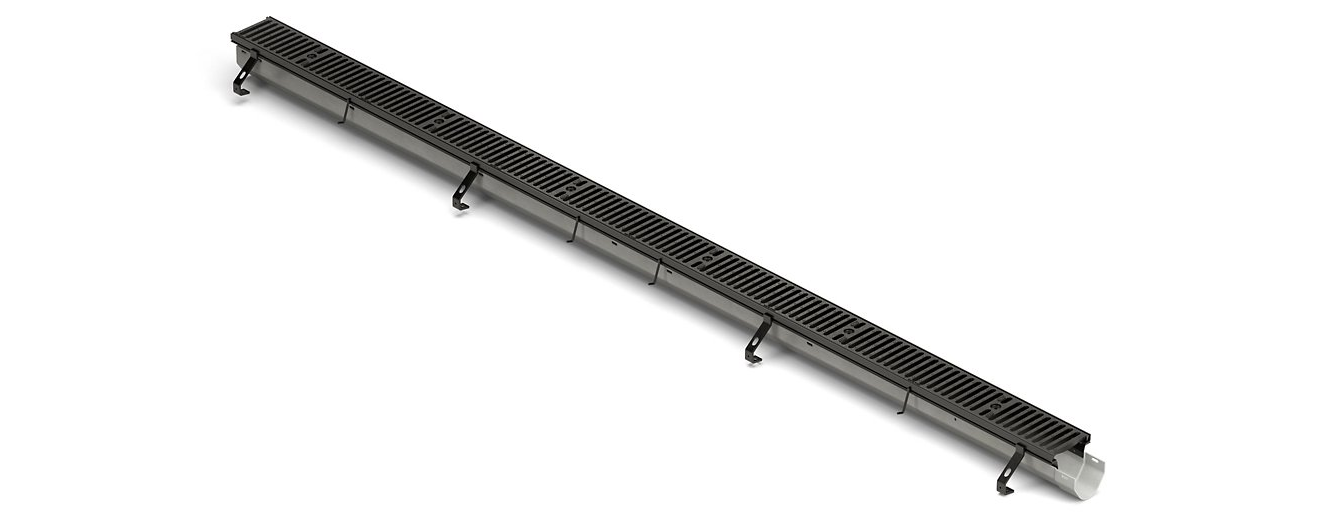

Zurn ZF806 FRP trench drain system product image
Photo: Zurn ZF806 FRP Trench Drain System

Key specs that drive selection

When people get stuck on trench drains, it’s usually because they focus on “overall width” and miss the specs that actually control performance and compatibility. For the ZF806 family, the big ones are:

Spec What it means in the real world
Channel length: 10' (120") modular sections Fewer joints on long runs and faster layout—especially helpful when you’re trying to maintain clean, straight lines.
Channel width: 6" wide reveal Helps you align with slab details, trench widths, and grate options in the 6" family.
Throat: 4" The opening size influences inlet capacity (how fast surface water can enter), especially during washdowns.
Grate load rating: Class C option Load rating is about what rolls over the grate (carts, vehicles), not just how much water it sees.
Connections: overlapping / interlocking Designed to help alignment and reduce “lip” issues that can trap debris or create trip points.

Note: The ZF806-HDG variant is typically specified when a galvanized heavy-duty frame assembly is desired (helpful where corrosion resistance is needed but stainless may not be required).

How to size a trench drain (step-by-step)

“Sizing” a trench drain usually means balancing three things: (1) how much liquid you need to capture, (2) where it can discharge, and (3) what traffic loads it must survive.

Step 1 — Map the capture zone Sketch the slab area that will sheet-flow to the drain (washdown bays, process lines, containment areas). Mark where the liquid originates and where it naturally wants to run.
Step 2 — Confirm the discharge point Identify the outlet location(s): sump, interceptor, neutralization, or sanitary connection (as allowed). This determines whether you need a single run sloping to one end or multiple runs to multiple outlets.
Step 3 — Decide “where the slope lives” In many projects, slope is created in the slab while the trench drain stays at a consistent invert; in other cases, the system can be configured to help manage slope. The key is avoiding low spots that become permanent sludge traps.
Step 4 — Choose the grate based on traffic If the area sees rolling loads (forklifts, pallet jacks, service vehicles), confirm the needed load class. Load Class C (C250) is commonly associated with moderate commercial traffic categories.
Step 5 — Plan access for cleaning In chemical processing, drains often fail from maintenance constraints, not hydraulics. Ensure grates can be removed where needed, and confirm safe methods for debris removal and flushing.
Practical tip: If you expect frequent washdowns, prioritize (a) continuous grate access and (b) predictable slope to a cleanout point. This reduces “mystery odors” and standing residue issues later.
Zurn logo
Photo: Zurn (brand mark)

Frames, grates, and load classes (plain-English)

Think of a trench drain system as two parts: the channel (the trough that carries liquid) and the top assembly (frame + grate that takes abuse).

What “HDG” usually signals

In Zurn nomenclature, HDG commonly refers to a galvanized heavy-duty frame assembly. Galvanizing is a zinc coating that helps resist corrosion—especially useful when the drain sees water, cleaning agents, or humid conditions.

Why load class matters more than you think

Load class is not a “nice-to-have.” If the grate is under-rated, it can deform, rattle, or fail—creating safety and liability issues. Zurn lists a Class C rated grate option for the ZF806 line.

  • Class C (C250): commonly referenced for moderate commercial traffic categories (e.g., parking and general commercial areas).
  • If you have uncertainty, selecting a higher class is often safer than trying to “value engineer” load rating.

Installation guidance & common pitfalls

Best-practice install sequence (field-friendly)

  1. Set control lines (stringline/laser) for straightness and finished elevation.
  2. Dry-lay channel sections to confirm run length, end caps, outlets, and transitions.
  3. Lock alignment at joints using the system’s overlapping/interlocking connection approach.
  4. Secure the frame assembly so the grate seats consistently (no rocking).
  5. Place concrete in lifts and consolidate around the channel to avoid voids.
  6. Verify slope and drainage before the area goes live—flood test if appropriate.

Common pitfalls (and how to avoid them)

  • Low spots at joints: use a laser and check each section as it’s set—don’t “fix it in the pour.”
  • Grate rocking/rattle: usually a frame seating issue; correct before operations begin.
  • Chemical mismatch: confirm compatibility early; temperature often changes the answer.
  • Hard-to-clean layouts: add access points where debris naturally collects (turns, outlets, or process discharge areas).

Maintenance plan for chemical processing areas

A trench drain that’s “perfect on paper” can still fail operationally if cleaning is inconsistent. A simple, repeatable plan helps.

Suggested routine

  • Daily/shift: remove solids, check for standing liquid, confirm grate seating.
  • Weekly: lift select grates, flush channel, inspect joints and outlet area.
  • Monthly: check downstream components (interceptors/neutralization) and confirm no corrosion at the frame/grate interface.
  • After incidents: if unusual chemicals are spilled, rinse per facility SOP and inspect for surface degradation.

Case study: retrofit trench drainage for a process washdown corridor

Project snapshot

  • Facility type: chemical handling/process area with routine washdown
  • Problem: standing liquid at slab low points + frequent debris buildup near equipment
  • Goal: capture washdown flow reliably while improving cleanability and reducing corrosion risk at the top assembly

Approach

  1. Mapped flow paths and placed the trench in the natural sheet-flow line (instead of forcing water uphill).
  2. Selected a 6" wide system to match slab/trench constraints and maintain consistent grate access.
  3. Specified a heavy-duty frame approach to better handle traffic and service carts, with attention to corrosion protection at the top assembly.
  4. Added a cleaning routine tied to shift-change so debris couldn’t harden in place.

Outcome (what improved)

  • Less standing liquid: improved drainage consistency reduced puddling after washdowns.
  • Faster cleaning: predictable access points made maintenance quicker and more repeatable.
  • Reduced top-side degradation: better corrosion management at the frame/grate interface lowered replacement frequency.

Note: This is a representative field scenario illustrating a typical selection/implementation process. Final designs should be validated against site loads, chemistry, and plumbing code requirements.

FAQ: Zurn ZF806 / ZF806-HDG

Is ZF806 the same as ZF806-HDG?

ZF806 refers to the trench drain system family. “ZF806-HDG” typically indicates a configuration that includes a galvanized heavy-duty frame assembly. Always verify the full part string (and included grate/frame) on the submittal to ensure it matches the environment and loads.

What does “6" wide reveal” mean?

“Reveal” is the nominal top opening family the system is built around (often aligned to the frame/grate size). Practically, it helps you coordinate trench width, grate selection, and slab edge details without guessing.

What is the 4" throat, and why should I care?

The throat is the inlet opening where surface liquid drops into the channel. In washdown or spill scenarios, the throat size influences how quickly liquid can enter the system before it spreads across the slab.

Is Class C strong enough for forklifts?

Sometimes—sometimes not. Forklift loads vary widely (wheel loads, tire type, frequency, impacts). Treat load class as a starting point, then confirm actual traffic conditions with the engineer/spec and select the grate/load class accordingly.

How do I keep trench drains from clogging in chemical areas?

Three basics: (1) prevent solids from entering (screens/SOPs), (2) design slope and access for flushing, and (3) set a routine where grates are lifted on a schedule—before residue hardens or crystallizes.

What’s the most common install mistake?

Losing elevation control at joints. Even small “dips” become permanent standing-liquid points. Use a laser, check every section, and correct alignment before concrete placement.

Disclaimer: This guide is educational and should be validated against project drawings, local code, and manufacturer submittals for final design.
