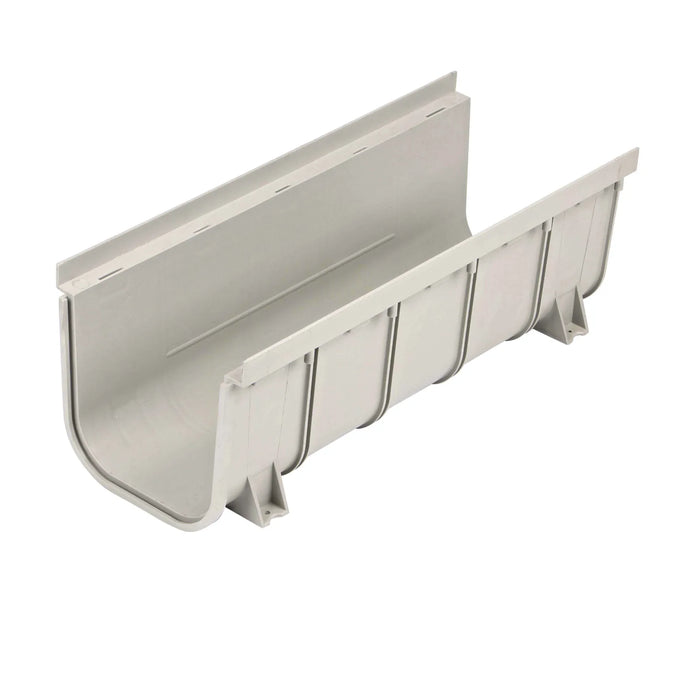

NDS 8 Inch Pro Series Channel™ Drain System

NDS 8 Inch Pro Series Channel™ Drain System

8 Inch Wide Channel Drain Kit - NDS Pro Series - 19" Long

$139.37


FREE SHIPPING
SKU 833

The 8 in. Pro Series™ Channel Drain provides a reliable solution for hardscapes prone to flooding, preventing water from causing costly damage. Its deep-profile design is engineered to capture and direct heavy water flows from driveways, patios, courtyards, walkways, and sports facilities into drain pipes. Available in both a 7-1/4″ deep profile and a 4-1/2″ shallow profile, this system offers flexibility to suit different site conditions. Constructed from durable PVC with UV inhibitors, it ensures long-lasting performance even in harsh outdoor environments.



System Selection:

  • Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as caps and grates.

Note: NDS drainage products are subject to a $750 minimum order.


Please Use the Order Form Below to Order ▼

View Our Full Selection of NDS Channel Drain Products →

Ordering Info:

Please scroll down for the complete 8 in. Series product listing with pricing. Not sure of the exact parts needed for your project? Please submit an NDS Channel / Trench Drain Quote Request >

Spec Sheets

Visit ndspro.com to download specification sheets and other technical information.

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-2 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Channel Drain System & Accessories (Free Shipping)

Please see the below product listing. Please note, accessories (grates, clips, caps, etc.) must be purchased with a channel /  trench drain system including channels and cannot ship alone.

8 Inch Channel Drain: Heavy-Duty Surface Water Management

The 8 Inch Channel Drain is engineered for hardscapes that experience heavy runoff, offering a dependable way to prevent flooding and costly property damage. Built with a deep-profile design and durable PVC construction, it provides flexibility for a wide range of residential, commercial, and athletic applications.

8 inch channel drain grates designed for high water flow
Heavy-duty 8″ grate built for performance.

What Is an 8 Inch Channel Drain?

The 8 Inch Channel Drain is a modular system designed to capture and redirect heavy water flows from driveways, patios, courtyards, walkways, and sports facilities. Available in two profiles—7-1/4″ deep and 4-1/2″ shallow—this system adapts to both high-capacity and limited-depth installations.

Constructed from PVC treated with UV inhibitors, it resists damage from sunlight and harsh conditions, ensuring long-lasting performance. Its versatility makes it the go-to solution for sites where effective drainage is essential.

Installation of an 8 inch channel drain system
Installing the 8″ channel drain in a hardscape.

Key Features

  • Deep and Shallow Profiles: Choose between a 7-1/4″ deep option for maximum capacity or a 4-1/2″ shallow option for tight spaces.
  • Durable PVC Construction: UV inhibitors protect against long-term exposure to sunlight.
  • High Flow Capacity: Designed to handle heavy runoff in large-scale or high-use areas.
  • Versatile Applications: Suitable for driveways, patios, walkways, courtyards, and sports facilities.
  • Modular System: Interlocking channel design for easy installation and customization.
8 inch channel drain with PVC body and grates
8″ channel drain system ready for installation.

Installation Overview

  1. Plan Layout: Select shallow or deep profile based on flow requirements and site conditions.
  2. Excavate Trench: Dig to proper depth/width, ensuring a stable base.
  3. Assemble Channels: Connect sections with interlocking joints for a continuous run.
  4. Position & Level: Set channels flush with surrounding surface for a smooth finish.
  5. Backfill & Secure: Use concrete or bedding material to stabilize the channel.
  6. Install Grates: Snap or secure grates into place to complete the system.

Case Study: Sports Complex Upgrade

Location: Regional sports facility  |  Surface: Concrete walkways  |  Issue: Heavy rain causing unsafe ponding

A sports complex faced recurring drainage problems along its main pedestrian walkways, leading to pooling water and surface cracks. The facility installed the 8 Inch Channel Drain in its deep-profile configuration to handle peak stormwater events. By tying into the facility’s storm drain system, the project eliminated hazardous puddles and protected the concrete from further damage.

  • Result: Walkways remain safe and dry during heavy storms.
  • Timeline: Completed installation over a long weekend with minimal disruption.
  • Maintenance: Routine seasonal cleaning of grates ensures continued performance.

Frequently Asked Questions

When should I use an 8″ channel drain?

Use an 8″ channel drain when you need to manage heavy water flow on larger surfaces such as driveways, courtyards, walkways, or athletic facilities.

What’s the difference between the deep and shallow profiles?

The deep profile is 7-1/4″ and designed for maximum capacity, while the shallow profile is 4-1/2″ and suited for areas with depth limitations.

Is the system durable outdoors?

Yes. It’s made of PVC with UV inhibitors, which resist sun damage and ensure long-lasting performance in outdoor environments.

What maintenance is required?

Maintenance is minimal—just remove grates periodically to clear debris and ensure clear flow paths.
