What a Roof Hatch Does and Why the Series Matters

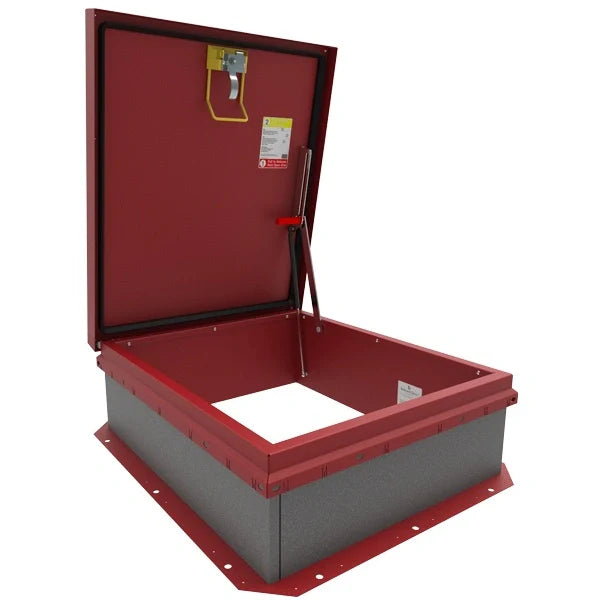

A roof hatch — also called a roof access hatch or roof scuttle — is a hinged, insulated cover mounted on a raised curb that forms a sealed, secure opening through the roof deck: essentially a dedicated doorway to the roof. It lets technicians reach rooftop HVAC, solar, and drainage equipment quickly and safely, without exterior ladders or propped stairwell doors. Done right, a commercial roof hatch improves safety, security, and the efficiency of every service trip to the roof.

The single biggest decision is the series, because it determines insulation, code listings, and how the hatch is meant to be used:

Choosing Your Series

Start with how the roof will be accessed. Most buildings need a Personnel Series hatch for routine maintenance trips. Buildings with conditioned interiors or strict energy codes benefit from the ThermalMAX thermal break. Occupancies that require code-driven smoke and heat release need a SafeMAX vent. The finder uses your first answer to recommend the right family, then lets you confirm or switch.

Choosing the Right Size

Roof hatch sizes are expressed as the width by length of the clear opening. Taller and longer openings make it easier to move people, tools, and equipment — at the cost of more material and a larger curb.

• 36" x 30" and 36" x 36" — the minimum comfortable sizes for a person with a tool bag; the most common personnel choices.
• 30" x 54" and 30" x 72" — longer openings for ladders with rails or easier equipment movement.
• 48" x 48" and 30" x 96" — large openings for big equipment, ductwork, or material handling.

A good rule of thumb: 36" x 30" covers most personnel access, and you size up when you need to move equipment or run a ladder with a safety rail. Measure the rough opening in the deck rather than the finished interior, and confirm the curb height suits your roof assembly and insulation thickness.

Don't Forget OSHA Safety Railings

OSHA requires fall protection around roof openings, and the most practical solution is a self-closing roof hatch safety railing sized to the hatch. These railings mount directly to the curb counterflashing, so they don't penetrate — or void the warranty on — the roofing membrane, and they install on both new construction and retrofit projects. A ladder safety post is the second common add-on: a telescoping grab post that gives workers a secure handhold as they step from the ladder onto the roof, which is exactly where most access falls happen. The finder automatically matches the correct railing to your chosen hatch size and offers the ladder post as an optional extra, so the compliant configuration is just a tap.

Smoke Vents and Code Requirements

A roof smoke vent is a code-recognized opening that releases heat and smoke during a fire. The single-door SafeMAX design uses gas springs and a damper to open the cover — against a 10 psf snow load — in not less than two seconds after the 165°F fusible link activates, or when pulled from interior or exterior cables. It's well-suited to factories, warehouses, hoistways, and elevator shafts. Key design factors include the total vent area required by code for your occupancy and building size, the effective vent area, and the roof structural support. If you're venting for code, choose "Smoke / heat venting" in the finder.

Installation Basics

Follow the manufacturer's manual and your roofing membrane supplier's flashing details. Position the hatch to minimize walking distance to the equipment it serves, and align a fixed ladder or ship's stair directly beneath the opening for safe egress.
