Channel & Trench Drain Selector — Find the Right NDS Drain for Your Site

Choosing a channel or trench drain gets confusing fast: NDS alone makes everything from a slim 1¼″ pool-deck channel to a 12″ commercial trench drain, and the right pick depends on where the water is, how much of it there is, and what drives over the grate. The Channel & Trench Drain Selector above walks you through your application, traffic load, and layout, then points you to the exact NDS series that fits — with a direct link to view specs, choose grates, and configure your run. It's built for contractors who already know what they need and for first-time buyers who would rather be guided than guess.

Channel drain vs. trench drain — what's the difference?

The two terms overlap so much that most people use them interchangeably, and that's mostly fine. A channel drain and a trench drain both do the same job: they capture surface water in a long, narrow linear channel set flush with the pavement and carry it to an outlet, instead of letting it sheet across a driveway or pool deck and pool up. The practical difference is scale. "Channel drain" usually describes the narrower, modular plastic systems used on residential and light-commercial hardscapes — pool decks, patios, walkways, driveways. "Trench drain" usually describes the wider, heavier systems built for steady vehicle traffic and big water volumes on commercial, industrial, and municipal sites.

Because they sit on a spectrum rather than in two separate boxes, the smartest way to choose is to ignore the label and answer three questions in order: how wide does the channel need to be for the water, what load has to drive over the grate, and do you want the slope built in or will you set it yourself. The selector above asks exactly those questions.

Width and flow capacity

Width is the first lever because it sets how much water the channel can move. A narrow channel is discreet and inexpensive but fills up fast in heavy rain; a wide channel handles serious runoff but costs more and needs a deeper trench. NDS channel widths run from about 1¼″ up to 12″:

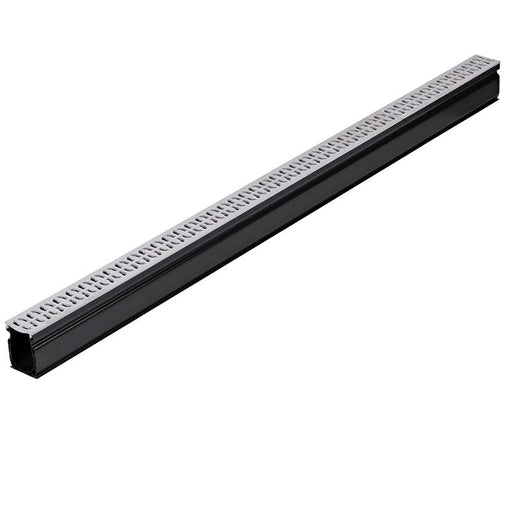

• 1″–2″ (Micro, Slim) — light flow on pool decks, spas, and walkways where the grate should nearly disappear.
• 3″ (Mini, 3″ Pro Series) — patios, tight driveways, and decorative transitions that still need real capacity.

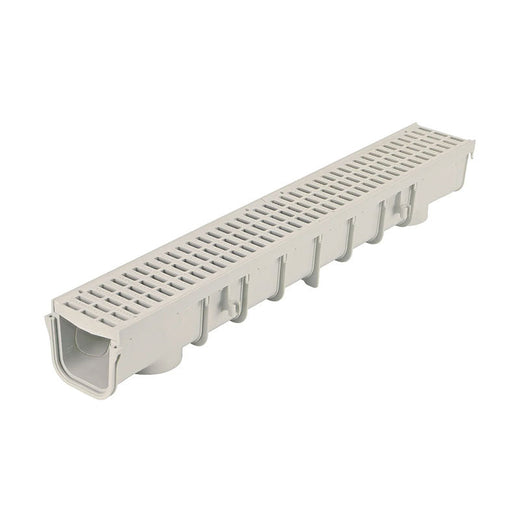

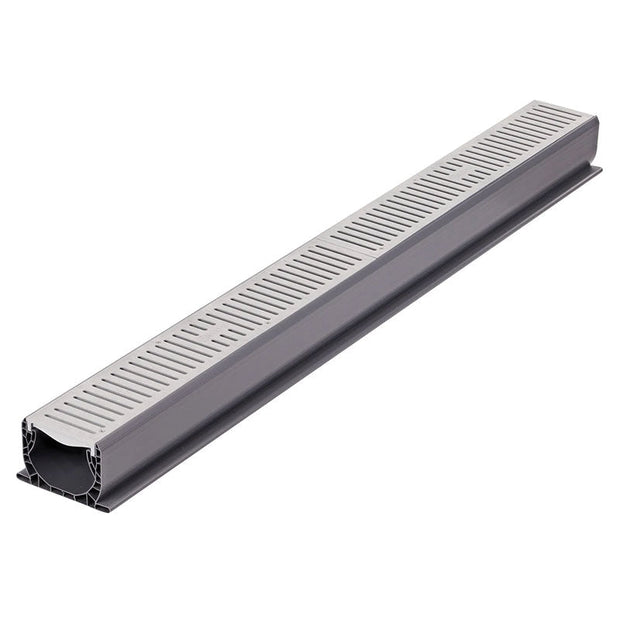

• 4″–5″ (Spee-D, 5″ Pro Series) — the workhorse range for driveways, large decks, and moderate commercial flow.
• 6″–12″ (Dura Slope, 8″ and 12″ Pro Series) — high-capacity drainage for plazas, parking, sports courts, and municipal work.

Load rating: who and what drives over it

The grate — not just the channel — determines what can safely cross the drain, so load rating is the decision that keeps you out of trouble. Grates are commonly described by class, from Class A pedestrian areas up through Class C light vehicular and H-20 full highway loading. NDS systems pair the same channel with different grate materials to hit different ratings:

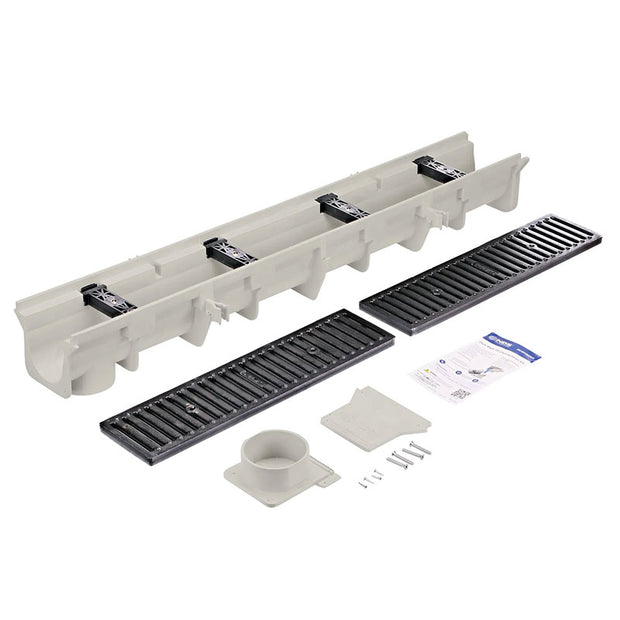

One important detail on the heavier systems: swapping grate material can change the rating. On the commercial Trench Drain Kit, for example, the ductile iron grates carry the H-20 rating, while switching to galvanized steel grates steps it down to Class C. Always confirm the grate, not just the channel, matches your traffic.

Sloped vs. neutral invert

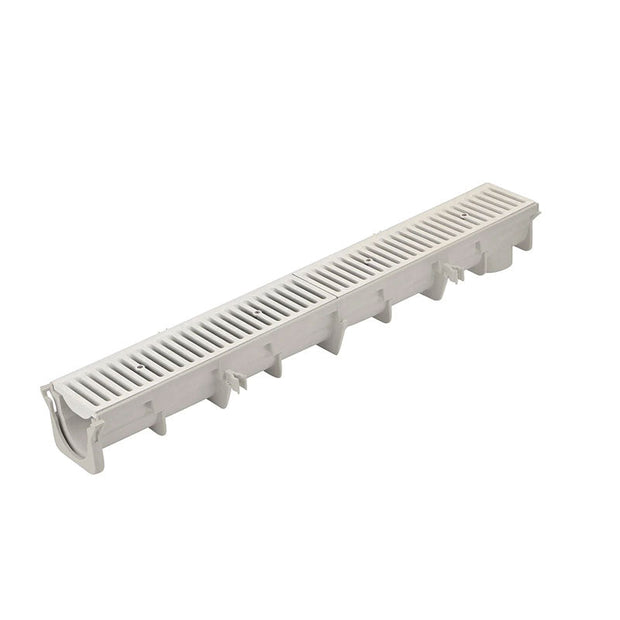

Water only moves if the channel falls toward the outlet, and there are two ways to get that fall. A neutral-invert channel has a flat bottom, so you establish the slope yourself during installation — typically a 1–2% fall set with a string line or laser. That gives you full control and is ideal where site grades are tight, which is why the Pro Series channels and the Trench Drain Kit use a neutral invert. A pre-sloped system has the fall molded into the channel itself; NDS Dura Slope carries a built-in 0.7% slope, so a long run keeps water moving without you grading each section. Pre-sloped systems shine on long commercial runs where consistent fall matters and hand-grading would be slow.

The NDS series at a glance

How much drain do I need?

Measure the linear length of the line you need to intercept — across a driveway apron, along a patio edge, or wherever water sheets toward a building. Divide that length by the channel section length to find how many channels you need, then add one grate per section, the end caps and outlet for the run, and any couplers, elbows, or tees your layout requires. Channels are cut-to-length, and most NDS systems cut in 4″ increments with a built-in saw guide, so you can trim the last section to fit. On longer runs, add outlets so water has somewhere to go before the channel fills. If you're piecing together a larger or oddly shaped layout and want a second set of eyes, our team specs orders with contractors every day at (800) 604-5537.

Installation basics

Good installation is what makes a channel drain actually work. Excavate a trench wide and deep enough for the channel plus its concrete bedding and encasement, and compact the sub-base first. Establish a consistent fall toward the outlet — neutral-invert systems rely entirely on the grade you set, while pre-sloped Dura Slope brings its own 0.7%. Dry-fit the sections with their interlocking joints or couplers and confirm the grate sits flush with the finished surface before you commit. Encase in concrete to the level your load rating requires (H-20 needs proper encasement), keeping the grates locked in place during the pour so the channel doesn't float or distort. Finally, connect the end outlet to your storm piping, French drain, or dry well per local code, and seal the joints. After installation, keeping the grate clear of leaves and debris is most of the maintenance the system will ever need.
