Armor Tile Cast In Place Detectable Warning Mat 2' x 4'



Armor Tile 2' x 4' Cast In Place ADA detectable warning mat.

Detectable warning mats are engineered to provide auditory and tactile underfoot feedback for the visually impaired. Cast In Place detectable warning mats are permanent and placed while concrete is being set.  These ground tiles are typically placed on crosswalks, curb ramps, stair landings, parking garages, escalators, and train/bus platforms.

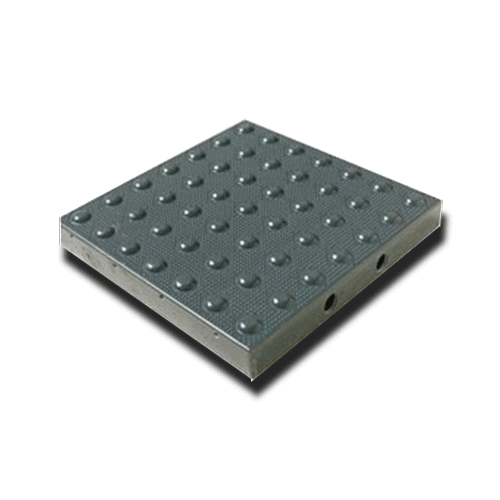

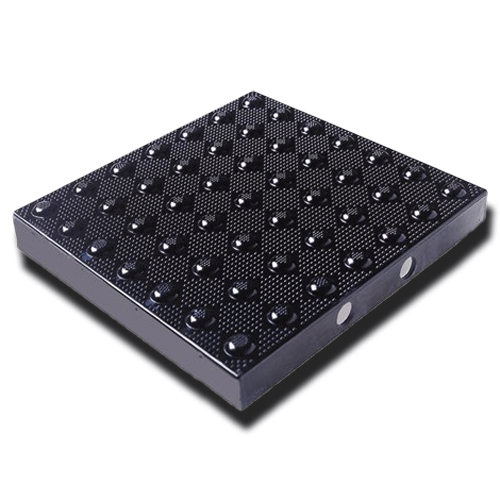

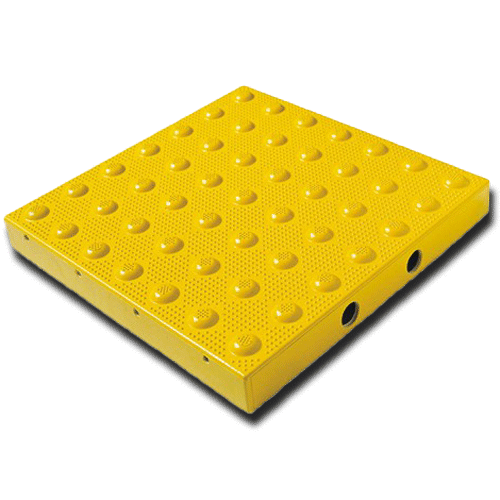

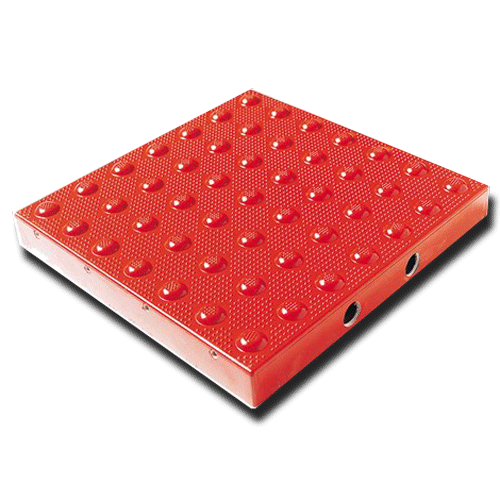

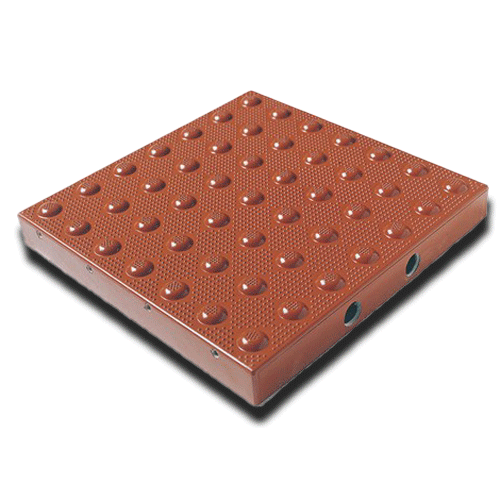

All Armor Tile detectable Cast In Place pads are certified ADA compliant and are available in 5 colors: Federal Yellow, Colonial Red, Safety Red, Black, and Dark Gray


For details on product availability and bulk pricing call us:

(800) 604-5337

Minimum Order = 5 Tiles


  • Brand: Armor Tile Cast in Place
  • Model: ADA-C-2448
  • Size: 24" x 48"
  • Free Shipping
  • Need a written quote?
             Request Online
  • Volume Pricing Available on
            Large Orders
  • Questions? Call (800) 604-5537


Looking for another size Mat?

  • 1'x1' - Cast in Place Mat
  • 2'x2' - Cast in Place Mat
  • 2'x3' - Cast in Place Mat
  • 2'x4' - Cast in Place Mat
  • 2'x5' - Cast in Place Mat
  • 3'x4' - Cast in Place Mat
  • 3'x5' - Cast in Place Mat



  • Armor Tile products ship standard ground, see map
  • Call: (800) 604-5537 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically om 3-4 business days if the order is placed before 12:00pm noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.


Cast In Place Mats are installed while cement is wet. watch the full install video or download the install guide for a step by step installation.

Full step by step installation and maintenance guides for our Cast In Place and Surface Mount Access Tiles can be found on our Installation and Maintenance Page.

Full Printable
Installation Guide


Cast in Place ADA Specification Sheet


US (non-California)
Submittal Package



Questions about Armor Tile Detectable Warning Surface products?  Visit our FAQ section here.

Armor Tile Detectable Warning Surfacing

Surface-applied truncated dome tiles are the best way to adapt any area to bring in a detectable warning system for added safety and greater navigation.

You've likely seen installed warning systems in various areas such as crosswalks, on train platforms, or while approaching an escalator. Known as tactile walking surface indicators (TWSI), or Detectable Warning Surfaces (DWS).

These pads are made with domes, or wayfinding bar tiles and barely stick out of the ground. They provide sound and tactile feel when underfoot, or touched with a cane. Truncated domes offer additional feedback of nearby hazards for those who are visually impaired.

Why We Need Detectable Warning Systems?

Detectable warning systems are required by the Americans with Disabilities Act (ADA ) and play an important role in public safety. These systems are designed to create a safe area for pedestrians, so everyone can easily navigate without needing help from others. The truncated domes offer a non-visual warning for possible hazards ahead.

Detectable warning systems are made of wayfinding bars and truncated domes that are easily detected underfoot or using a guidance cane. The surfaces are raised to provide a non-visual indication of changes in a walkway but also make it easier to follow a path allowing people of all abilities to navigate any space.

Detectable warning systems are extremely helpful to accomplish the following:

  • Create a safe and easy way to navigate space
  • Provide non-visual alerts
  • Warn of any changing conditions

How Do Detectable Warnings Make Transit Safer?

These systems are especially helpful for people who suffer from low to no vision as well as helping people of all abilities within a transit facility.

Tactile walking surface indicators will help guide pedestrians to the right platform thanks to their simple contrast to the surrounding area which will draw pedestrians' attention.

In low light areas, tactile warning systems can serve as a path-marking, or wayfinding system because the truncated domes offer an easily detectable path. Not only are truncated dome tiles great for path-marking but also serve as non-visual warnings. The domes will alert pedestrians about any changes in the path up ahead.

For those without visual impairments, feeling the dome tiles underfoot can communicate to pedestrians to stop and look around the area for any hazards before moving forward. These systems are also very important in transit facilities. They will alert the public of drop-offs at the edge of the train or subway platforms.

Why Detectable Warnings Are Important in Transit Facilities

Transit facilities can be difficult to navigate for the visually impaired, especially in areas that have curb ramps. Due to the dangerous drop-offs at train and subway platforms, detectable warnings are critical to maintaining the safety of transit facilities.

The use of ramps was initially used to help people in wheelchairs to navigate and access public spaces and to board public trains.

The slope between the sidewalk and curb ramps made it very difficult for the visually impaired to get around public areas due to the fact that the slopes between the ramps and walkways are difficult to detect.

How are Armor Tile Warning Surfaces Used at Transit Facilities

When construction of the new transit facility started, the installation of the detectable warning system was taken into consideration. Casting in place truncated dome tiles might be the best ADA tiles for new construction. The detectable warning pads can be directly set in wet concrete forming a long-lasting installation.

Surface-applied truncated dome tiles are the best way to adapt any area to bring in detectable warning systems for added safety and greater navigation

Armor-Tile being displayed outside the Flagship Amazon Fresh Store

Amazon Fresh Opening

During the event, a few customers got the opportunity to view the Woodland Hills’ new grocery store, Amazon Fresh. Thanks to new technology.

Surrounding the store’s entryway is Armor-Tile® surface applied detectable warning tiles. These tiles have been created to allow the public more accessible entry for those with visual impairments. According to John Heffner, Vice President of Armor-Tile®, it’s encouraging to see large companies are taking the right approach for accessibility.

The surface of these tiles offers state and federal mandated truncated domes that are just large enough to offer tactile warnings, while promoting pedestrian safety.

The truncated domes will alert a person with visual impairments they are approaching the entrance to the store or entering the parking lot when leaving the store. These detectable warning tiles will be felt underfoot by offering a distinct palpable difference between the surrounding pavement and the tile.

Also, when tapped by a guidance cane, the truncated domes will send off an audible warning which is a unique sound letting the person know there is a change in the walking surface.

These tiles are installed at curb ramps, pedestrian crossings, transit platforms, parking areas, and at Amazon Fresh. John Heffner said they are very proud to have their product featured at the new Amazon Fresh store and excited to have this new addition to their community.

If you have a new store or revamping your current store, you need better accessibility. You should seriously consider looking into Armor-Tile® surface applied detectable warning tiles for added safety and better accessibility.

Armor-Tile Cast In Place

Armor-Tile Cast in Place truncated dome tiles are the leaders in ADA detectable warning tiles and are packaged with the most cost-effective installation on the market to date. The Cast in Place tactile detectable warning pavers are very easy to install directly into fresh, new concrete which will instantly make your space more accessible to those who are visually impaired. These tiles are manufactured using a diamond-hard vitrified polymer composite.

Truncated domes along with wayfinding bar tiles have set the standard for durability as well as wear and are weather resistant in ADA detectable warning products. These ADA tiles have been rated the lowest life cycle cost of any detectable warning product available on the market.

Across the board, Armor-Tile Cast in Place truncated domes and wayfinding bar tiles are the very best ADA solutions at the most affordable price. They want to help make your project as accessible as possible for the visually impaired pedestrian and their Cast in Place tiles meet and even exceed all ADA detectable warning requirements anywhere.

Armor-Tile ADA Applications

Public, as well as private areas across the United States, use Armor-Tile ADA detectable warnings to offer visually impaired pedestrians with physical warnings of various changes in surface conditions. People who are visually impaired need to know when a sidewalk changes into an intersection and their truncated domes and wayfinding bar tiles offer the perfect detectable warning they will ever need.

Armor Tile yellow and black Detectable Warning System Train Platform pedestrian safety

Armor Tile Truncated Domes on a train platform

Applications for Tactile Attention Indicator Truncated Domes

These applications make curb ramps ADA accessible and in alignment with all safe pedestrian crossing avenues across a vehicle roadway. Any entrance into a vehicular area where no curbs or other elements separate it from the pedestrian paths including curb ramps, wheelchair ramps, at the top of stairs or escalators, and blended transitions.

Armor-Tile Surface Applied has set the standards for durability as well as weather and wear resistance in detectable warning products. It is your choice to cost-effectively retrofit your existing sidewalks to bring your facility up to ADA detectable warning requirements. Their Surface Applied truncated domes and wayfinding bar tiles are created to install into any existing cured concrete surface where detectable warning systems will be required.

Surface Applied tiles are designed with beveled edges to give your facility a seamless transition from a walking surface to an ADA tactile system. The Surface Applied tactile walking surface is a perfect, cost-effective ADA tile solution for projects that already have concrete and are looking to provide accessibility to pedestrians.

Truncated domes help to make your facility as accessible as possible for visually impaired individuals. Between their excellent material technologies and polymer processing, they have created an innovative and intelligent design to give you the ultimate detectable warning tiles. Armor-Tile domes have gone beyond manufacturing their surface applied tiles using a diamond-hard vitrified polymer composite that has definitely set the industry standards for durability, weather, and wear resistance, and will ensure it will offer access to your facility for many years to come.

Black Armor Tile Truncated Domes installed

Black Truncated Domes

The Complete Installation System

They will ship the total installation system with their detectable warning surface complete with the required adhesive, and fasteners needed to make your sidewalk extremely accessible. Their installation system will guarantee this retrofit detectable warning surface will securely fit into your existing concrete.

Their detectable warning surface is designed with very sleek beveled edges that create a smooth transition between your concrete and truncated domes or wayfinding bar tiles that are totally compliant with all ADA codes.

These surfaces are manufactured using a diamond-hard vitrified polymer composite. Their truncated domes and wayfinding bar tiles are ahead of the industry in durability, weather and wear resistance. When you purchase Armor-Tile®, you can set it up and just forget it! The Armor-Tile® ADA tiles are very lightweight and very easy to handle. You can cut to conform to various sizes and radius ranges to fit anywhere it's necessary. Their detectable warning surface tiles are available in 5 different sizes for your specific needs. - 24”x24”, 24”x36”, 24”x48”, 24”x60”, 36”x48”, 36”x60”.

Armor Tile installation instructions by Kinesik

How Truncated Domes Came About

In 1965, creator and inventor Seiichi Miyake came up with a design that is now used in almost every country in the world. He wanted to help a friend and spent his own money to create what were known at that time as Tenji blocks. Since that time, truncated domes became the perfect warning surface system built-into sidewalks and pedestrian thoroughfares. These domes are installed throughout many countries including Japan, Australia, the United Kingdom, Canada, and the United States. Originally, the design was a series of lines that indicated if someone was traveling along the path, and should continue to move forward.

The second design consisted of truncated domes that would indicate a pedestrian should stop because of a change in the direction of the sidewalk to a motorway or they were reaching the area for the train boarding platforms and should wait for the train to stop.

The first place for the design was placed on a street in Okayama City, Japan which was located nearby the Okayama School for the Blind. Ten years later, these domes became a mandatory requirement for the Japanese National Railways.

Since that time, the U.S enacted the ADA and truncated domes became mandatory on all sidewalks, all train stations, and for public thoroughfares that coincide with automobile traffic. The lined tiles are not required in the U.S but the textured tiles are required everywhere else. In Japan, the lined tiles indicate “Go”, while the textured tiles indicate “Stop”.

When Did Truncated Domes Become A Part Of The Construction World In The US?

In 2010, both the Federal Code and the State of California Building Code were changed. State requirements clearly specified that while the diameter of the base must be 0.9 inches, the top diameter must be 0.45 inches. As of 1991, ADA guidelines required that domes have a theoretical 0.9-inch diameter, 0.2-inch height, and 2.35-inch center-to-center spacing.

As of date, California requires that while the base diameter must be 0.9-inches, the top diameter must be 0.45-inches. Recently, the Federal Code stated there must be a 0.65-inch minimum base to base spacing between the adjacent domes. This is in addition to the existing center-to-center spacing requirements already in place. Also, the 2010 CBC change required truncated dome sections must occupy the entire length and width of a curb ramp, doubling the amount of panels now required.

Yellow Truncated dome tiles on ground with brown shoes
