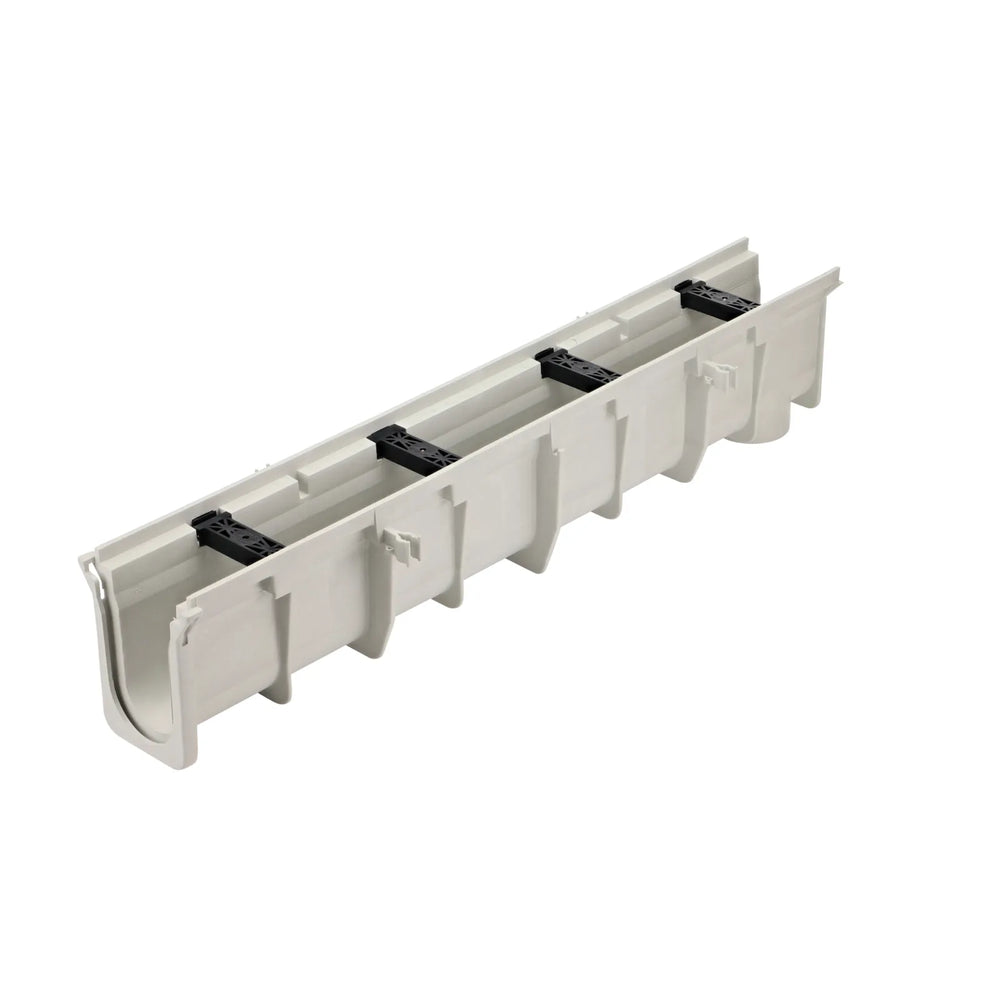

Dura Slope® Channel Drain, 7.7 in. to 8.0 in. Invert Depth, 6 in. Wide X 4 ft. Long X 9.5 in. Deep

Remove heavy flows of runoff from hardscapes with the Dura Slope® Channel Drain. This channel drain section has a built-in 0.7% slope with depths from 7.69 in. to 8.03 in. and is made of high-density polyethylene (HDPE) containing UV inhibitors. Channel comes with recyclable blank grate inserts to protect the channel from debris during installation, eliminating the need for using plywood. A durable alternative to concrete drains, the lightweight Dura Slope channel drainage system has lower freight costs compared to concrete, and is designed for easier handling and installation. The modular system consists of pre-sloped and neutral sections that snap together for secure alignment and minimal joint movement during installation. Each channel features a bottom outlet, rebar clips, and grate locking system.

System Selection:

• Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as caps and grates.



Note: NDS drainage products are subject to a $750 minimum order.

Please Use the Order Form Below to Order ▼
