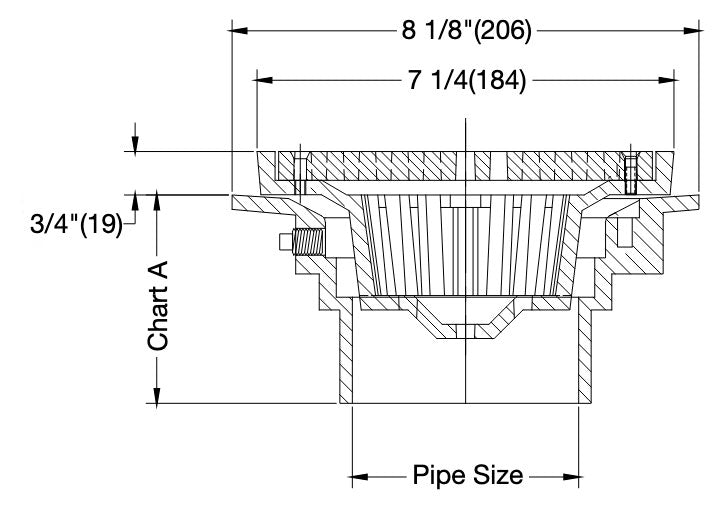

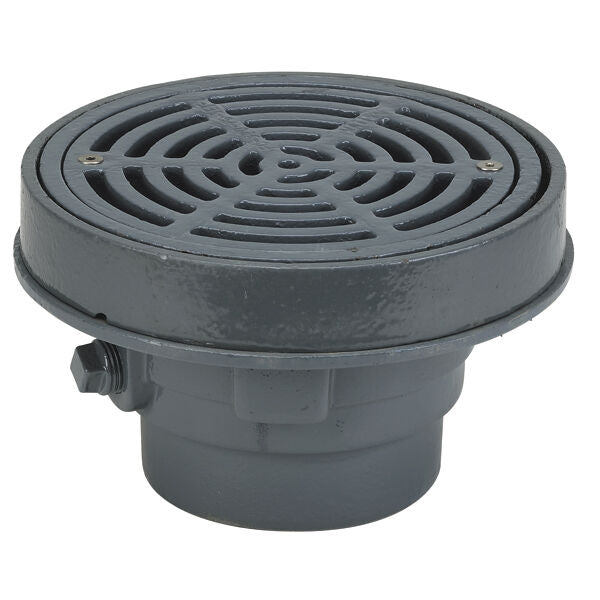

The Watts FD-320-Y-SET is a heavy-duty area drain constructed from epoxy-coated cast iron, featuring an 8″ (203 mm) diameter fixed round top, a loose-set heel-proof ductile iron grate supported by a bucket, an anchor flange, a membrane clamp with weepholes for perimeter drainage, and a no-hub connection as standard. It is rated for heavy commercial traffic use.

Key Features

• 8″ round fixed top featuring a heel-proof ductile iron grate supported by a removable bucket

• Epoxy-coated cast-iron body with anchor flange and membrane clamp including weepholes for effective perimeter drainage

• No-hub (MJ) outlet standard with optional sizes (2″, 3″, 4″, 6″) and multiple outlet connection types (push-on, threaded, inside-caulk)

• Rated for heavy-duty load applications (HD) with free-area of approximately 18 sq in

• Compatible with accessories such as nickel-bronze top, sediment bucket, trap primer tapping, back-water valve, galvanized body, side outlet, and alternative body materials (PVC/ABS)
