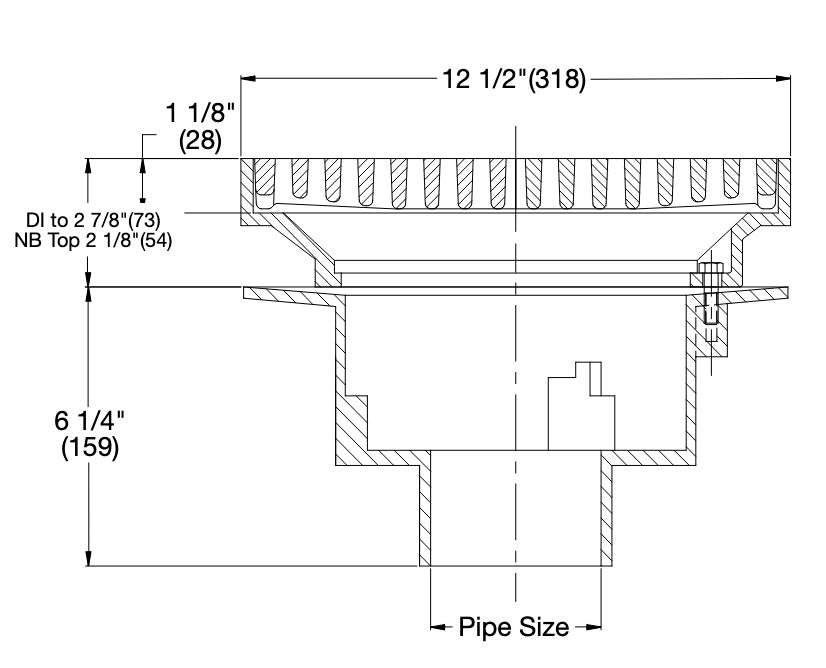

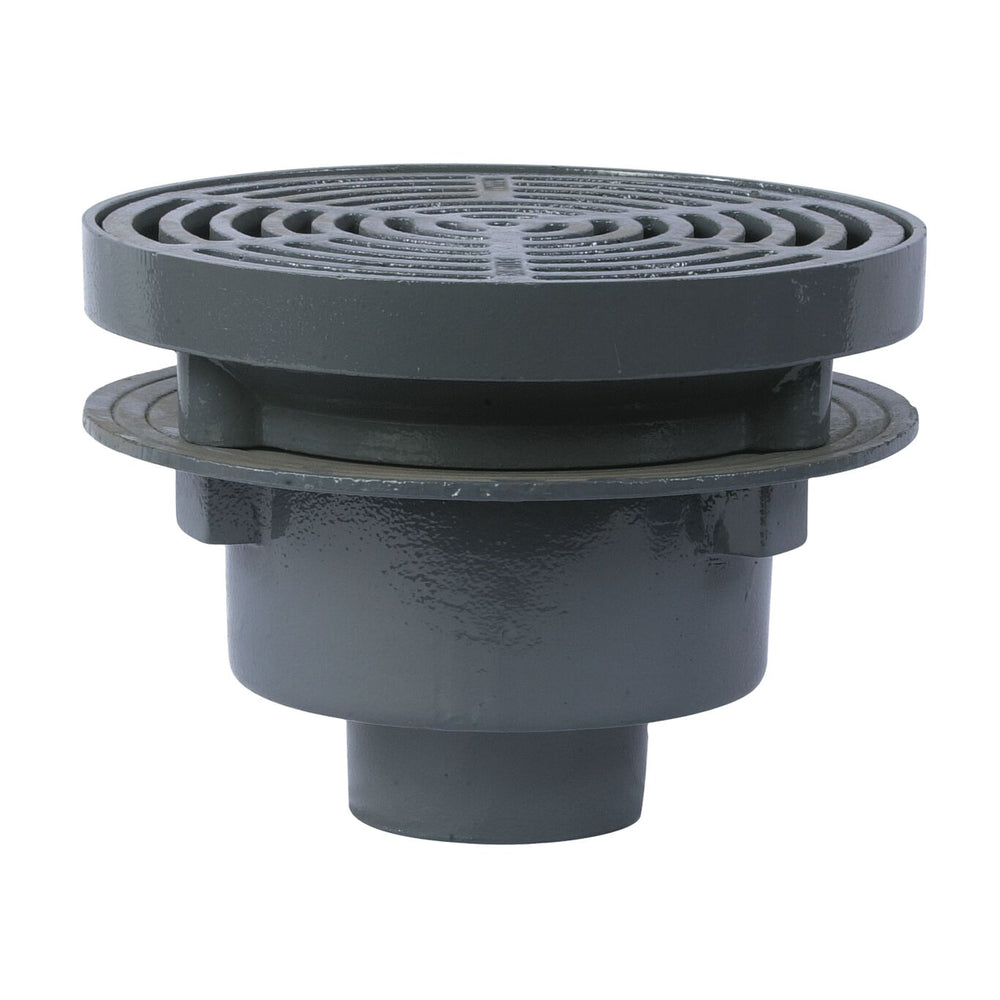

The Watts FD-340-Y is an epoxy-coated cast-iron area drain engineered for heavy commercial traffic applications. It features an anchor flange for secure mounting, perimeter weepholes to manage seepage, a fixed 12-½″ diameter round top with a heel-proof ductile-iron grate, and a standard no-hub outlet.

Key Features

• Fixed 12-½″ diameter round top with heel-proof grate suited for high-traffic conditions

• Epoxy-coated cast-iron body with anchor flange and dual weepholes for enhanced drainage integrity

• No-hub outlet connection standard, with multiple outlet size options available

• Load-rated for extra-heavy duty use (XHD classification)

• Compatible with additional features such as sediment bucket, backwater valve, or galvanized body finishes

Downloads:

• Specification Sheet
