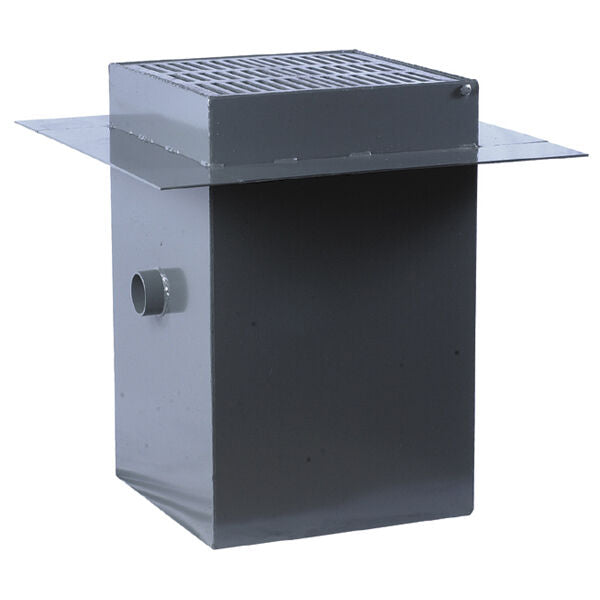

The Watts FD-410 is an epoxy-coated steel catch basin engineered for heavy commercial traffic installations. It features an anchor flange for secure mounting, a loose-set heavy-duty ductile-iron grate over a 24½″ square opening, and a standard no-hub outlet. The design incorporates an internal trap to prevent sewer gas escape, and optional depths are available to suit varying piping inverts.

Key Features

• Epoxy-coated steel body with anchor flange for robust installation

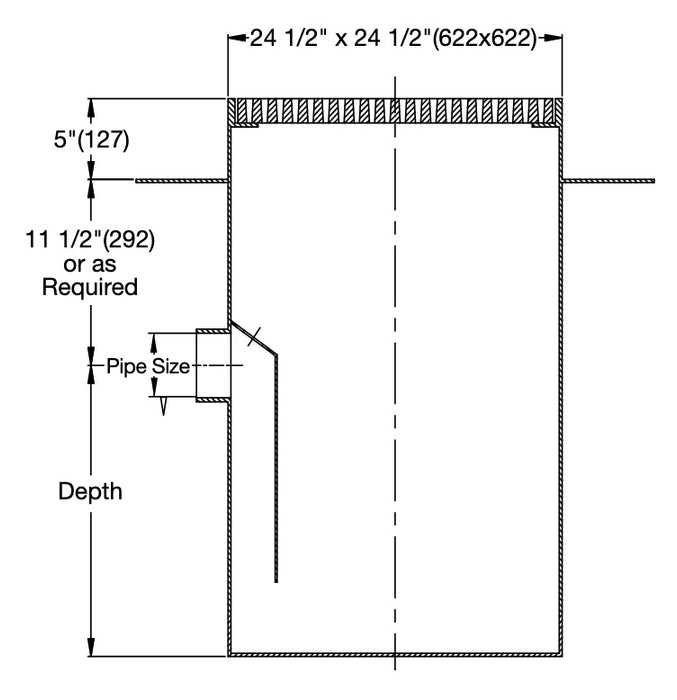

• 24½″ x 24½″ top with loose-set heavy-duty ductile-iron grate rated for high load conditions

• Internal trap included to inhibit sewer gas emission, enhancing safety and hygiene

• Standard no-hub outlet connection for streamlined integration with drainage systems

• Rated for XHD load classification (7,500–10,000 lbs live load) to support parking decks and heavy-traffic zones

Downloads:

• Specification Sheet
