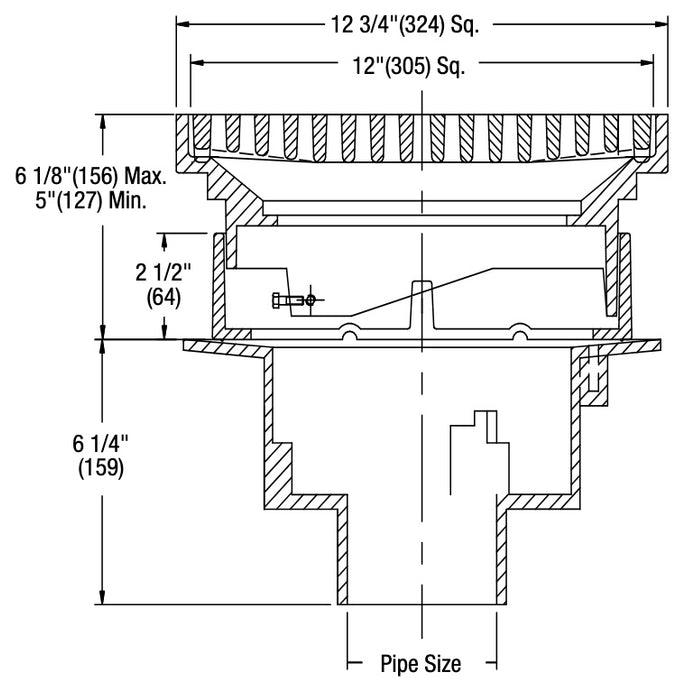

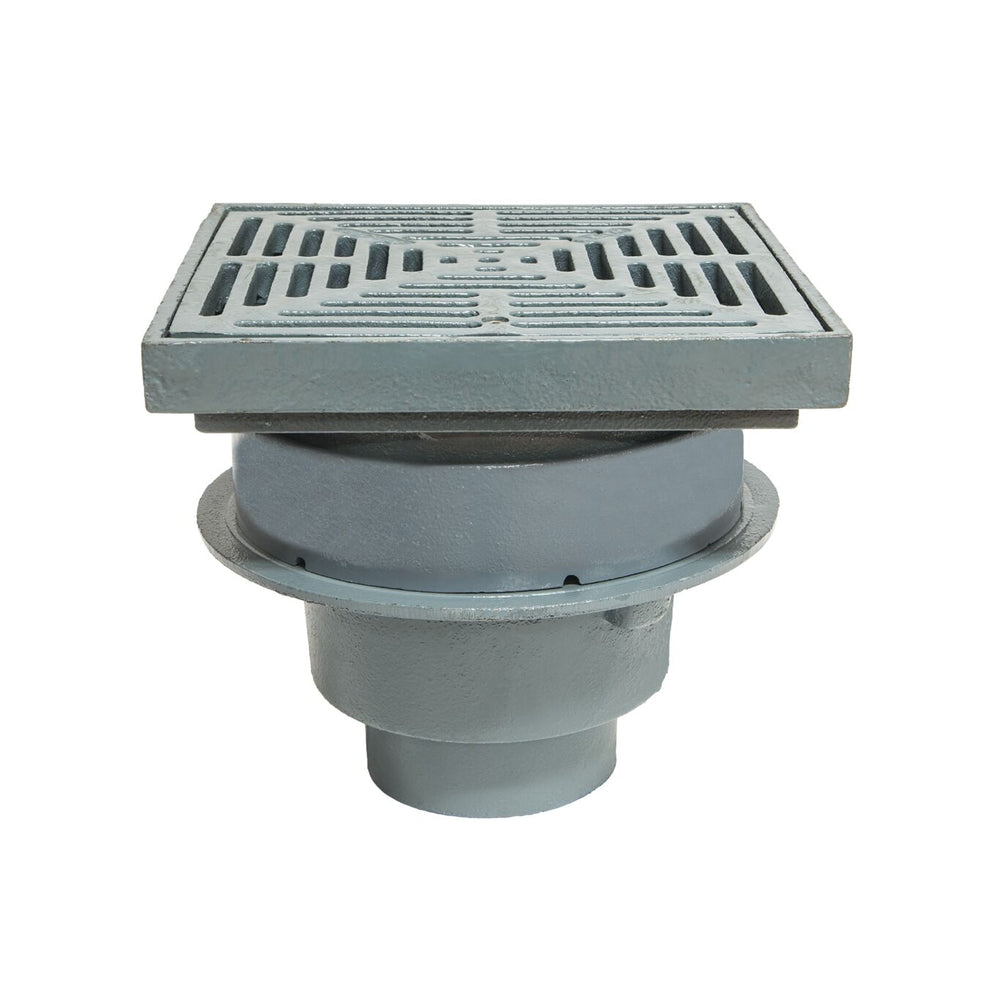

The Watts FD-460 is a heavy-duty epoxy-coated cast-iron area drain designed for commercial installations requiring reliable drainage and robust performance. It comes with an anchor flange for secure mounting, dual weepholes for perimeter seepage capture, and a 12¾″ × 12¾″ square adjustable top fitted with a heel-proof ductile-iron grate. Standard outlet connection is no-hub.

Key Features

• Adjustable 12¾″ × 12¾″ square top plate to align with finished floor elevation

• Epoxy-coated cast-iron body with anchor flange and dual weepholes to handle perimeter seepage

• Heel-proof ductile-iron grate rated for extra-heavy-duty traffic conditions

• Standard no-hub outlet connection with multiple size options available

• Load-rated for XHD (extra-heavy-duty) service environments

Downloads:

• Specification Sheet
