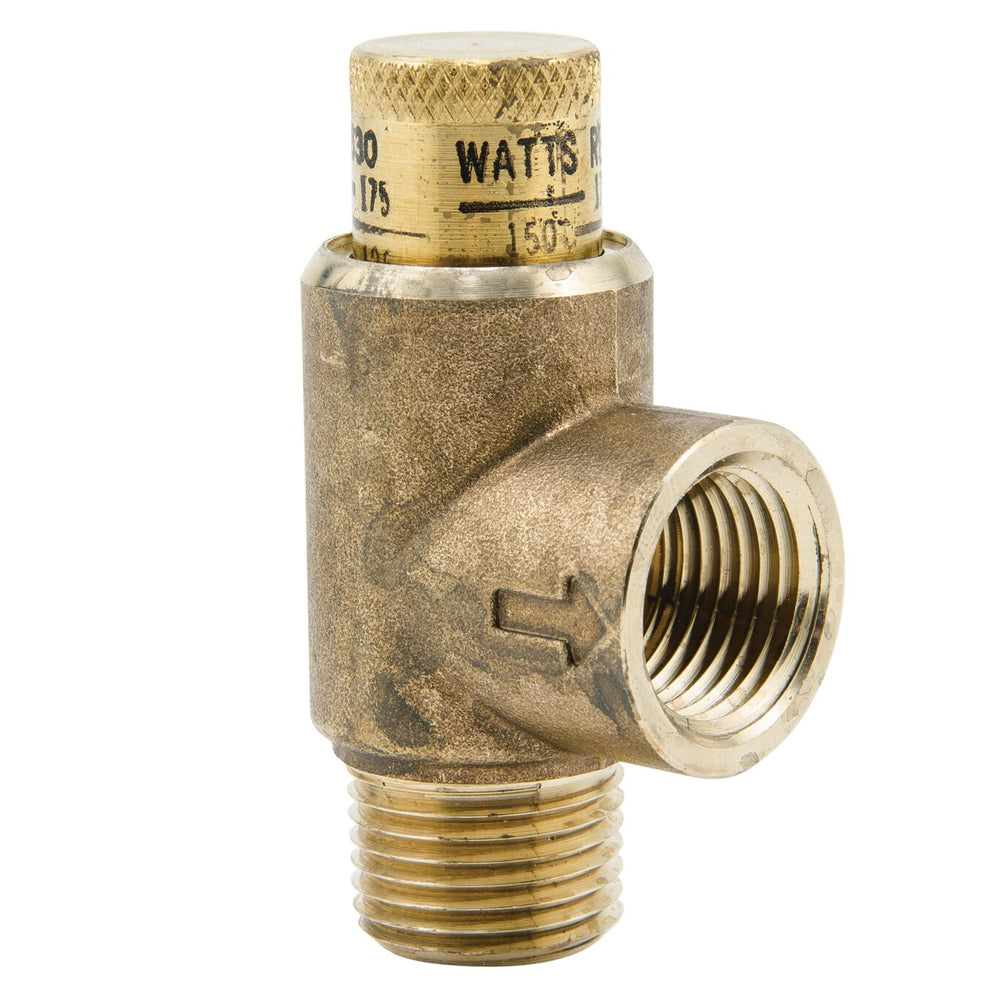

Watts LF530-C 1/2 - Part of the LF530C Series
$246.22
FREE SHIPPING
SKU 0556035
This 1/2 inch lead free calibrated pressure relief valve is designed for use as protection against excessive pressure build-up in systems containing water, oil and air. It has a lead free brass body, 1/2 inch NPT male inlet and 1/2 inch NPT female (drain) outlet. This valve has an adjustable pressure of 50 to 175 psi (3.4 to 12.1 bar) and maximum working temperature of 180 degrees F.
Features- Lead free brass body construction
- All stainless steel spring
- Adjustable range 50 to 175 psi
- Maximum temperature 180 degree F
| Specifications | |
|---|---|
| Body Material | Lead Free Brass |
| Brand | Watts |
| Buy American Act Compliant | YES |
| EAN | 098268435191 |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | YES |
| Maximum Working Pressure-PSI | 300 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0556035 |
| Pressure Range | 50 to 175 PSI |
| Pressure Relief Setting-PSI | 150 |
| Series | LF530C |
