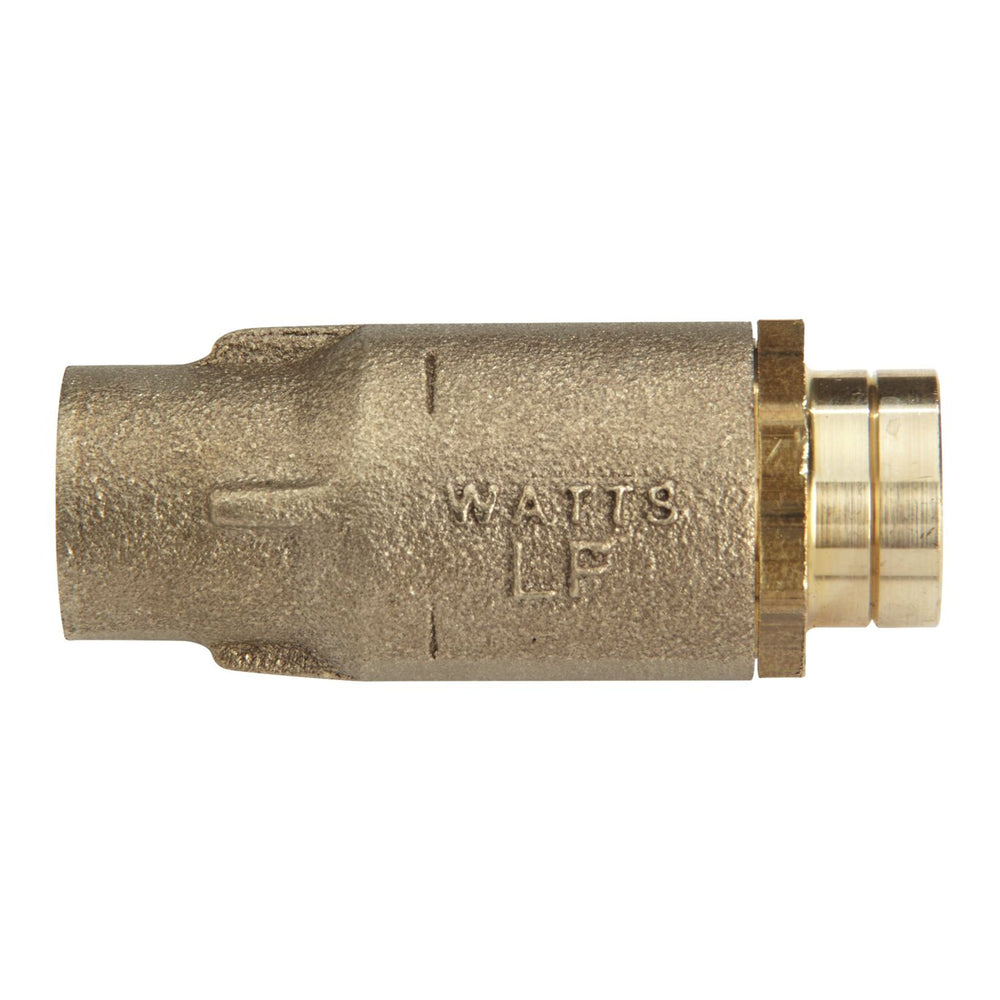

Watts LF601S 1/2 - Part of the LF601 Series
$576.45
FREE SHIPPING
SKU 0555181
This 1/2 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, Viton® disc, and soldered end connections. The maximum pressure rating is 400 psi (27.6 bar), WOG non-shock at 100 degrees F (38 degrees C).
Features- Lead free brass body
- Integral lead free brass seat
- Silent operation
- Viton® disc
| Specifications | |
|---|---|
| Body Material | Brass |
| Body Pattern | Straight |
| Brand | Watts |
| Disc Material | Viton |
| Disc Type | Conical |
| EAN | 098268432916 |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 15 MM |
| Inlet Connection Type | Socket |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | YES |
| Maximum Operating Temperature-Celsius | 38.00 |
| Maximum Operating Temperature-Fahrenheit | 100 |
| Maximum Working Pressure-PSI | 400 |
| Minimum Temperature - Celsius | -29.00 |
| Minimum Temperature-Fahrenheit | -20 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Socket |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 0555181 |
| Pressure-Temperature Rating | 400 PSI at 100 degree F |
| Pressure-Temperature Rating-BAR | 27.6 BAR at 38 degree C |
| Seat Material | Lead Free Brass |
| Series | LF601 |
| WOG Rating | 400 PSI |
