Watts LFDPTG3-3-0-200 1/2 - Part of the LFDPTG-3 Series
$219.45
FREE SHIPPING
SKU 0121662

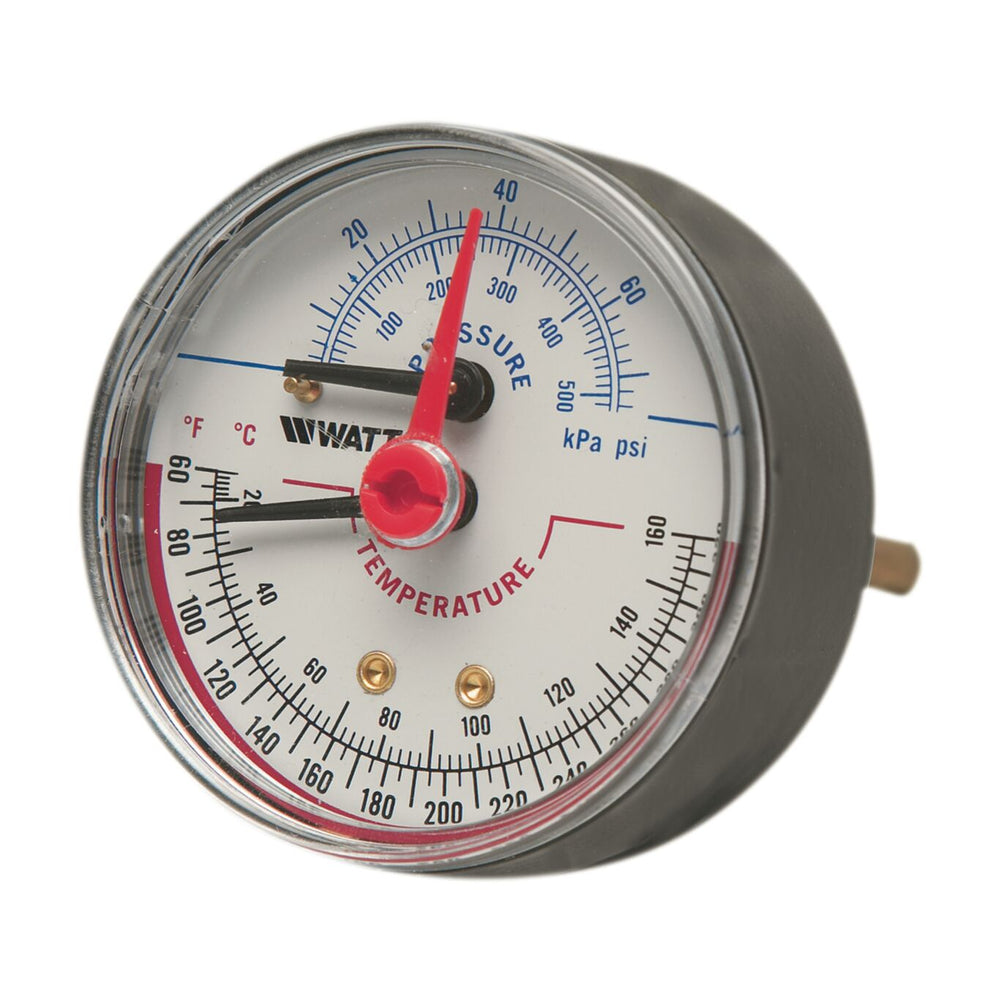

This 1/2 inch lead free combination pressure and temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center, back-entry, black enamel steel case, Kostil Polymer window, 1/2 inch NPT connection, copper alloy Bourdon tube pressure element, and bimetal spiral spring. Accuracy is ASME, Type B. This gauge features a 3 inch dial with pressure rating scale from 0 to 200 psi and temperature range 60 to 320 degrees F.
Features- Kostil polymer window
- Copper alloy Bourdon sensing element
- ABS polymer case
- 1/2 IN (15 MM) NPT connection
| Specifications | |
|---|---|
| Air Valve | No |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Material | Steel |
| Dial Size | 3 IN |
| EAN | 098268589115 |
| Entry Style | Back |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Male Threaded |
| Lead Free | YES |
| Manual Shutoff | No |
| Maximum Operating Temperature-Fahrenheit | 320 |
| Minimum Temperature-Fahrenheit | 60 |
| Part Number | 0121662 |
| Pressure Scale | 0 to 200 PSI |
| Sensing Element | Yes |
| Sensing Fluid | No |
| Series | LFDPTG-3 |
| Stem Shaft Material | Lead Free Brass |
| Temperature Range | 60 to 320 degrees F |
| Thermostat Probe Length | Does Not Apply To Product |
| Thermowell | No |
| VR Retaining Valve | Yes |
