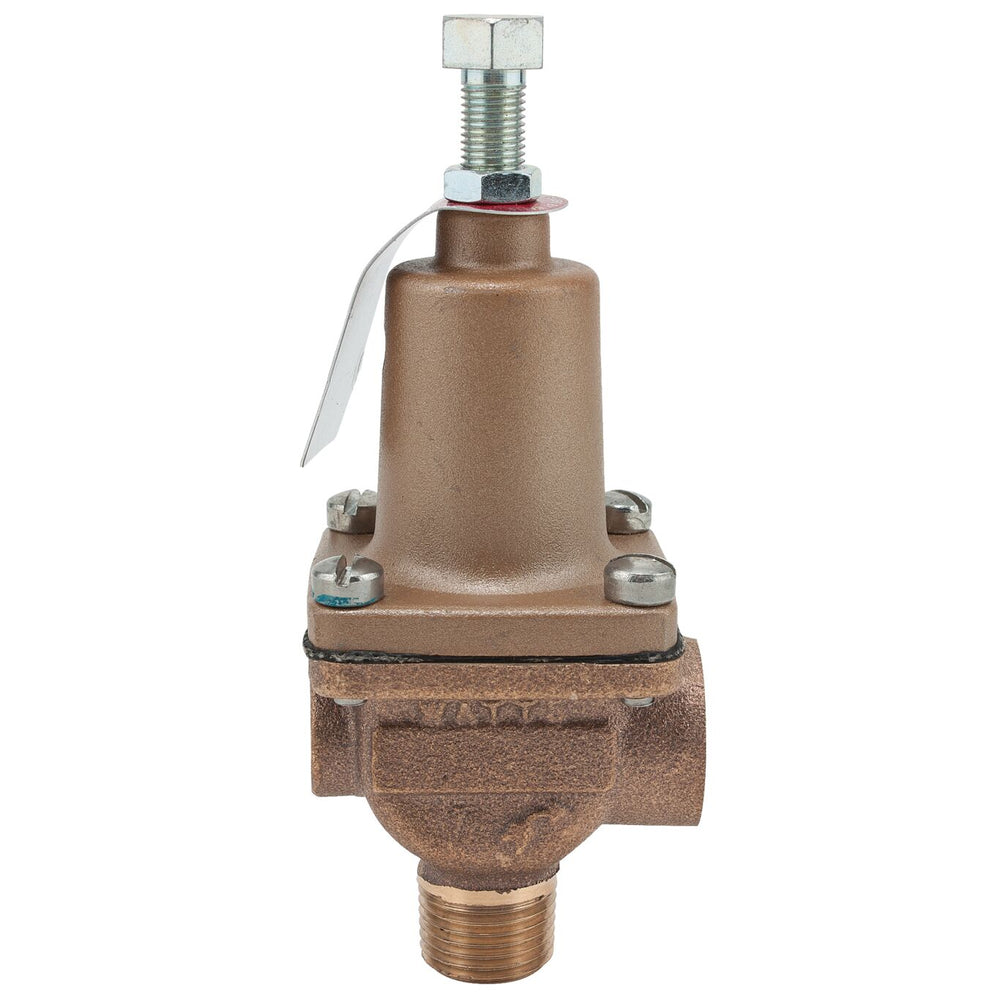

Watts N30-005030 - Part of the N30 Series
$677.77
FREE SHIPPING
SKU 0109265
This 1/2 inch pressure relief valve for wells is used to protect against excessive pressures in well systems. It is not diaphragm actuated, and is used for pressure-relief service only. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female (drain) outlet connections, and stainless steel spring. Its pressure range is 5 to 25 psi (0.34 to 1.72 bar) and a standard pressure setting of 30 to 45 psi (2.06 to 3.1 bar).
Features- Rugged bronze body
- Stainless steel spring
- NPT threaded male inlet connection
- Automatic reseating
| Specifications | |
|---|---|
| Body Material | Bronze |
| Brand | Watts |
| EAN | 098268009187 |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0109265 |
| Pressure Range | 5 to 25 PSI |
| Series | N30 |
