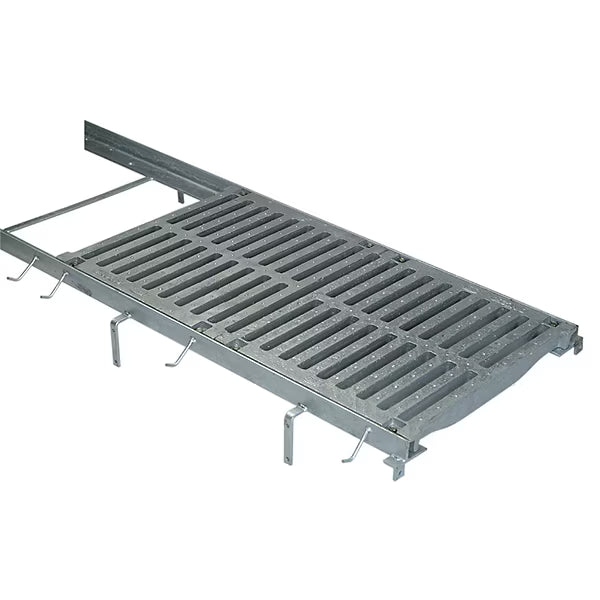

The Zurn Z723 is a heavy-duty frame and grate system designed for industrial or high-traffic trench drain installations. With a 23-inch wide reveal and steel or stainless top frame, this system supports large-opening drainage applications and supports dynamic loads. Features like four-corner grate lock-down and co-plane rail straps ensure structural integrity and durability in demanding installations.

Key Features

• 23″ wide reveal top frame with an approximate 18″ clear opening for high-capacity flow

• Heavy-duty frame and grate system with four-corner lock-down to handle dynamic loads

• Co-plane straps maintain parallel alignment of rails for long runs

• Modular 80″ (approx) lengths for efficient installation

• Customizable with finishes (carbon steel, galvanized steel, stainless) and multiple grate cover options

Note: Zurn trench drain products are subject to a $750 minimum order.

Downloads:

• Specification Sheet - Z723
• Product Definitions and Weight Classification Guide
