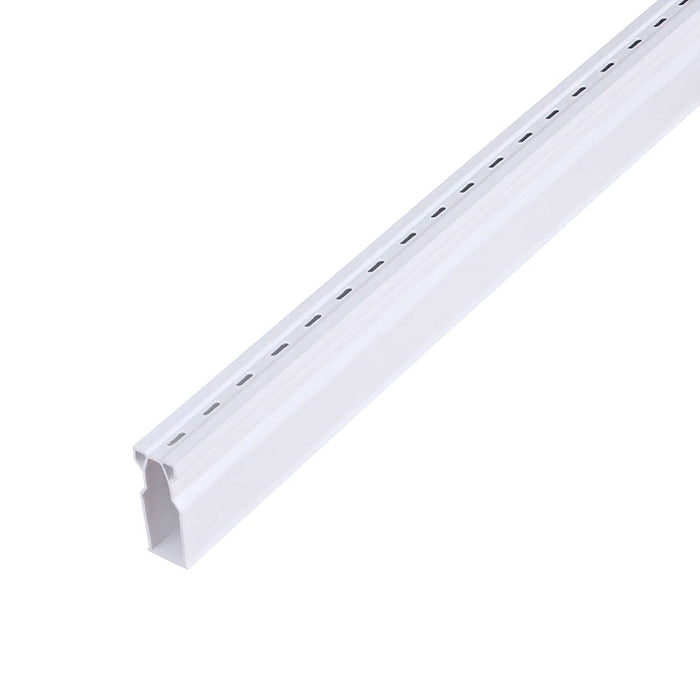

NDS Micro Channel Drain System

NDS Micro Channel Drain System

NDS Micro Channel Drain System

$114.98


FREE SHIPPING
SKU NDS-MICRO-1

The NDS Micro Channel Drain is a compact 1¼″ wide PVC drainage system designed for light-duty residential use in areas like pool decks, patios, spas, and walkways. Its slim profile makes it discreet, while modular components ensure easy installation and customization.

  • Light-Duty Rated – Designed for Class A pedestrian traffic (foot, bike, wheelchair).

  • Durable PVC Build – UV-stabilized in white, sand, or gray to resist fading and cracking.

  • Modular Accessories – Includes elbows, tees, outlets, and end caps for flexible layouts.

  • All-in-One Design – Channel and grate are molded together for quick installation.


System Selection:

  • Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as caps and grates.


Please Use the Order Form or System Builder Below to Order ▼

Frequently Asked Questions

Build Your Micro Channel™ System

Configure your drain layout and get an instant parts list.

1-1/4 in. wide · integrated grates
10 ft sections
Ultra-low profile for tile & pavers
Showers, balconies, pool decks, patios
System Configuration
Parts List
📐

Enter your footage above to
generate an instant parts list.

Use this list as a guide. Quantities are estimates — always add 10% for cuts and waste.

View Our Full Selection of NDS Channel Drain Products →

Ordering Info:

Please scroll down for the complete Micro Series product listing with pricing.

Looking for a Written Quote?

Please submit an NDS Channel / Trench Drain Quote Request >

Spec Sheets

Visit ndspro.com to download specification sheets and other technical information.

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-2 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Channel Drain System & Accessories (Free Shipping)

Please see the below product listing. Please note, accessories (grates, clips, caps, etc.) must be purchased with a channel /  trench drain system including channels and cannot ship alone.

NDS Micro Channel Drain System — Compact Drainage Guide, Installation & Case Study

Guide • NDS Micro Channel Drain System

NDS Micro Channel Drain System: A Compact, Low-Profile Solution for Pool Decks, Patios & Walkways

The NDS Micro Channel Drain System is a slim, 1¼″-wide PVC channel designed for light-duty residential areas—think pool decks, spas, patios, garden paths, and entryways. Its discreet profile keeps the focus on your hardscape while quietly collecting nuisance water and directing it away from slip-prone surfaces.

NDS Micro Channel Drain close-up showing slim profile
Micro Channel’s slim 1¼″ profile fits tight joints and borders

Why Choose Micro Channel? (Tech Explained Simply)

  • Light-Duty Rated: Built for Class A pedestrian traffic—safe for foot, bike, stroller, and wheelchair use around the home.
  • Durable PVC: UV-stabilized colors—white, sand, or gray—to resist fading and cracking under sun exposure.
  • Modular Accessories: Elbows, tees, outlets, end caps help you trace curves, corners, and T-intersections without custom fabrication.
  • All-in-One Build: Channel and grate are molded together for quick, fuss-free installs and fewer loose parts.
NDS Micro Channel Drain running along a residential pool coping
Clean, unobtrusive drainage along pool coping and deck joints

Best-Fit Applications

  • Pool Decks & Spas: Capture splash-out and rinse water to reduce slips and surface staining.
  • Patios & Paver Terraces: Keep entertainment areas drier without bulky grates or trench covers.
  • Walkways & Entries: Intercept roof runoff and hose-down water before it reaches door thresholds.
  • Planter Borders: Tuck into tight joints along edges to guide overflow to a drain point.

Layout & Sizing Tips (Step-by-Step)

  1. Trace the water path: Mark the low side of slabs (pool coping edge, patio perimeter, walkway border) where water naturally travels.
  2. Plan discharge: Route outlets to lawn basins, dry wells, or storm connections per local code. Add tees to consolidate short runs.
  3. Mind the grade: A gentle fall (≈1–2%) toward the outlet improves flow; use a string line or laser for consistent pitch.
  4. Select color: Match white/sand/gray to your deck, grout, or paver tone for a discreet look.
  5. Use accessories: Elbows for corners, tees for branch lines, end caps to terminate at walls or borders.
NDS Micro Channel Drain parts and accessories ready for installation
Modular elbows, tees, outlets, and caps simplify custom layouts

Installation Overview (DIY-Friendly)

Overview: Cut a narrow slot, set the channel to a slight fall, connect accessories, and backfill/finish the surface.
  1. Score & Saw: Mark the run; cut a narrow trench or kerf in pavers/concrete per manufacturer guidance.
  2. Dry-Fit: Lay the channel and accessories (elbows/tees/outlets) to confirm lengths and joints. Trim as needed.
  3. Set Grade: Establish a consistent fall toward your outlet. Secure with bedding material or adhesive (per instructions).
  4. Connect Outlets: Tie to drain pipe, basin, or dry well. Use proper adapters and solvent-weld where specified.
  5. Finish Edges: Re-set pavers or patch concrete neatly around the channel; keep the grate top flush with the finished surface.

Case Study: Pool Deck Makeover That Stays Dry

Location: Suburban backyard pool + spa • Problem: Splash-out water and hose-downs left slick puddles along the coping and at the back door. A full deck re-grade wasn’t feasible.

Solution: The contractor installed an NDS Micro Channel Drain in a subtle border joint around the spa spillway and along the deck toward a hidden outlet near landscaping. Sand-color PVC blended with travertine pavers, and tees pulled water from two short branch lines into the main run.

  • Install time: ~5 hours (two-person crew), including cutting and edge finishing.
  • Outcome: Noticeably drier surfaces after swim days; the back-door threshold stayed clear during storms.
  • Homeowner notes: The low-profile channel is “nearly invisible” compared with traditional trench grates.

Maintenance & Care

  • Seasonal checks: Inspect quarterly (and after heavy storms) for leaves, mulch, or sand buildup.
  • Gentle cleaning: Rinse with a hose; use a plastic putty knife or soft brush along the grate slots. Avoid harsh solvents.
  • Snow/ice: Use plastic shovels near the drain and avoid metal blades that could nick the grate.

FAQs

Is Micro Channel strong enough for cars?

No—it's Class A pedestrian only. For driveways or vehicle routes, choose a heavier trench drain system.

Can I bend the channel around curves?

The channel is straight, but you can create segmented curves using short sections with elbows and careful miters, or transition to round basins in tight radii.

Will the color fade?

The PVC is UV-stabilized to resist fading and embrittlement in sunlight. Periodic rinsing helps keep the surface clean.

Spec Snapshot

  • Channel Width: 1¼″ (approx.)
  • Traffic Rating: Class A pedestrian (foot/bike/wheelchair)
  • Material & Colors: UV-stabilized PVC in white, sand, or gray
  • Design: Channel + grate molded together (all-in-one)
  • Accessories: Elbows, tees, outlets, end caps
  • Typical Uses: Pool decks, spas, patios, walkways, entries, planter borders
