NDS SPEE-D® Channel Drain System

NDS SPEE-D® Channel Drain System

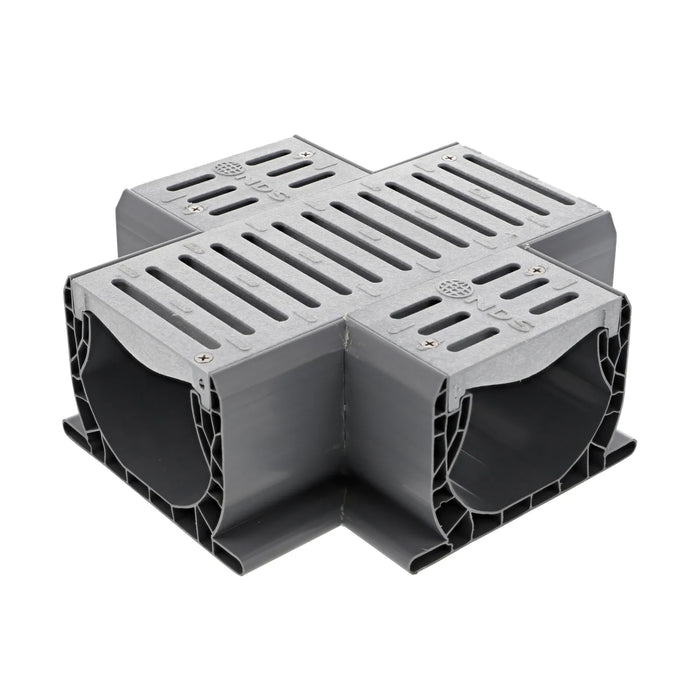

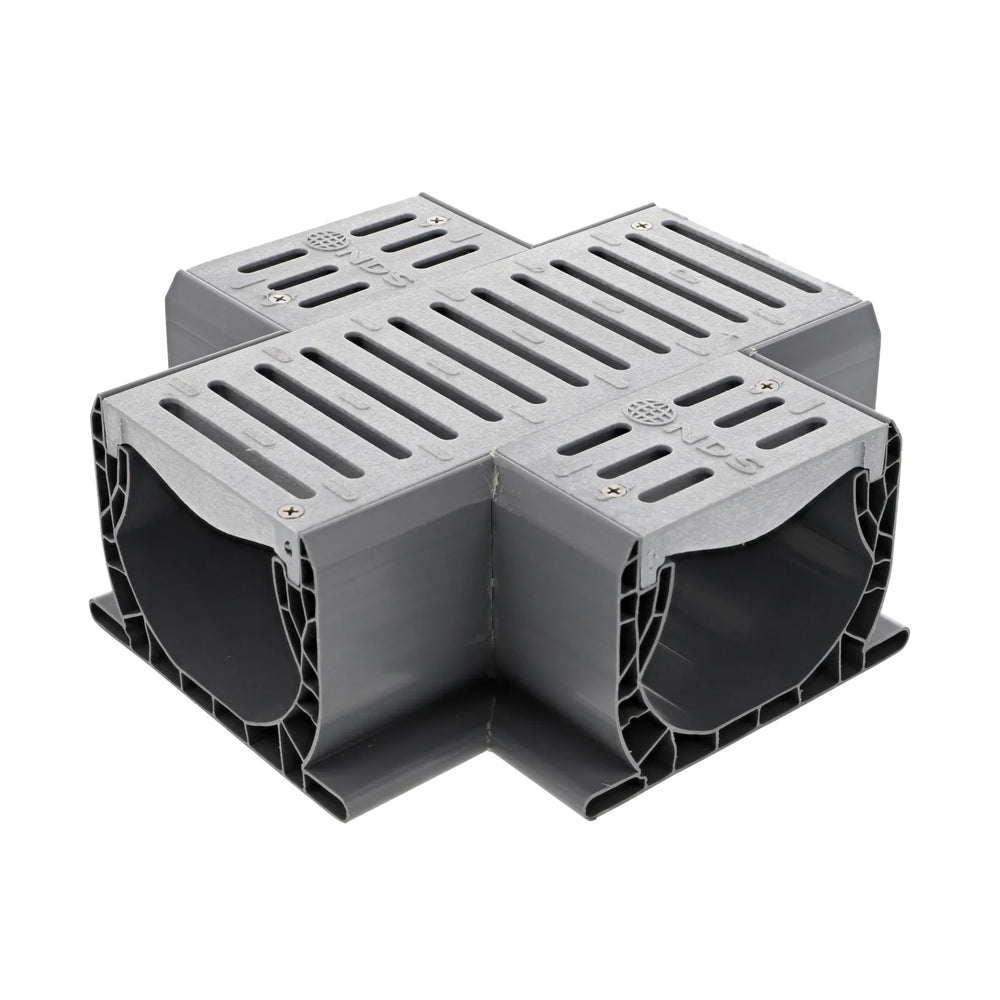

Spee-D® Channel Drain Cross and Grate, Gray Plastic

$265.67


FREE SHIPPING
SKU 2361

Add an intersection to your custom Spee-D® Channel Drain layout to create and connect perpendicular channel runs. The Spee-D Channel Drain Cross and Grate connects to Spee-D Channel Drains with a coupling. Channel is made of polyvinyl chloride and can be solvent-welded with PVC glue for a water-tight connection. Grate is made of gray polyethylene treated with UV inhibitors. Removable snap-in grate makes it easy to clean inside the system. The Spee-D Channel Drain cross is made of polyvinyl chloride (PVC) and the slotted grate is made of high-density polyethylene (HDPE), treated with UV inhibitors. Spee-D Channels are part of the NDS Profile Channel series, and ideal for capturing moderate flows from driveways, concrete & paver patios, pool areas, courtyards, and walkways.



System Selection:

  • Scroll down to select your system components. Multiple channel units are connected together and then paired with accessories such as caps and grates.


Please Use the Order Form Below to Order ▼

Build Your Spee-D® System

Configure your drain layout and get an instant parts list.

4¾" wide × 3¾" high channel
Available in 4 ft & 10 ft sections (cut-to-length)
Flying buttress walls + anchoring flanges
Applications: driveways, patios, pool decks, walkways
System Configuration
Parts List
📐

Enter your footage above to
generate an instant parts list.

Use this list as a guide when ordering from mainlinematerials.com.
Quantities are estimates — always add 10% for cuts and waste.

View Our Full Selection of NDS Channel Drain Products →

Ordering Info:

Please scroll down for the complete Spee-D® Series product listing with pricing.

Looking for a Written Quote?

Please submit an NDS Channel / Trench Drain Quote Request >

Spec Sheets

Visit ndspro.com to download specification sheets and other technical information.

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-2 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Channel Drain System & Accessories (Free Shipping)

Please see the below product listing. Please note, accessories (grates, clips, caps, etc.) must be purchased with a channel /  trench drain system including channels and cannot ship alone.

NDS Spee-D® Channel Drain System — High-Capacity Guide, Installation & Case Study

Guide • NDS Spee-D® Channel Drain System

NDS Spee-D® Channel Drain System: Lightweight Strength for Residential & Light Vehicular Surfaces

The NDS Spee-D® Channel Drain System is a high-capacity yet lightweight trench drain solution designed for driveways, patios, walkways, and pool surrounds. Its patented flying buttress design and anchoring flanges provide exceptional structural integrity while keeping installation straightforward.

Installing NDS Spee-D Channel Drain in driveway
Spee-D® Channel Drain installation in progress

Key Features

  • Strong Yet Lightweight: At ~4¾″ wide × 3¾″ high, available in 4 ft and 10 ft sections, cuttable for custom fits.
  • Anchored Installation: Bottom flanges keep the drain secured in place to prevent shifting.
  • Fully Customizable Layout: Configure with elbows, tees, crosses, outlets, couplers, and caps.
  • Versatile Grate Options: Choose from plastic, galvanized steel, or cast iron to match style and load capacity.
  • Handles Moderate Loads: Plastic grates support light vehicles under 20 mph; iron grates upgrade to Class C.
NDS Spee-D Channel Drain product close-up
Spee-D® Channel Drain with grate installed

Applications

  • Driveways: Keep entryways clear of pooling water with vehicle-ready grates.
  • Patios: Maintain dry, usable surfaces after storms or cleaning.
  • Walkways: Reduce slip hazards while preserving aesthetics.
  • Pool Decks: Manage splash-out to protect coping and grout lines.

Installation Overview

Overview: Dig, set, connect, and cover—the modular design simplifies the process.
  1. Excavate & Prep: Create a trench slightly wider than the channel.
  2. Place Channel Sections: Cut to fit as needed and align with couplers.
  3. Anchor with Flanges: Use built-in flanges to keep channels from floating during backfill.
  4. Attach Outlets: Connect to drainage lines, catch basins, or dry wells.
  5. Finish Surface: Backfill with concrete, pavers, or asphalt flush to grate height.
Cutting NDS Spee-D Channel Drain section to custom length
Spee-D® Channel cut-to-length flexibility

Case Study: Residential Driveway Retrofit

Location: Suburban home with sloped driveway • Problem: Water routinely pooled at the garage entrance, staining concrete and creating icy patches in winter.

Solution: An NDS Spee-D® Channel Drain System was installed across the driveway apron with cast iron grates for Class C load support. The system tied into an existing stormwater line, ensuring efficient water removal even during heavy rains.

  • Install time: 1 workday (two-person crew).
  • Outcome: No more pooling; driveway and garage remain dry.
  • Homeowner notes: “It looks neat, and the cast iron grates give us peace of mind with vehicles.”

Maintenance Tips

  • Check grates quarterly and clear debris buildup.
  • Use a hose or pressure washer for quick cleaning.
  • Inspect outlet connections annually to confirm proper flow.

FAQs

Can Spee-D handle cars?

Yes. Plastic grates support automobiles and light trucks under 20 mph; cast iron grates upgrade to Class C.

Is it easy to cut?

Yes. Spee-D® channels come in 4 ft and 10 ft lengths that can be cut for custom layouts.

Does it shift over time?

No. Anchoring flanges prevent shifting and floating during installation and use.

Spec Snapshot

  • Channel Size: ~4¾″ wide × 3¾″ high
  • Lengths: 4 ft & 10 ft sections (cut-to-length)
  • Structure: Flying buttress walls + anchoring flanges
  • Accessories: Elbows, tees, crosses, outlets, couplers, end caps
  • Grate Options: Plastic, galvanized steel, cast iron (various colors/styles)
  • Traffic Rating: Autos/light trucks with plastic grates; Class C with cast iron
  • Applications: Driveways, patios, pool decks, and walkways
