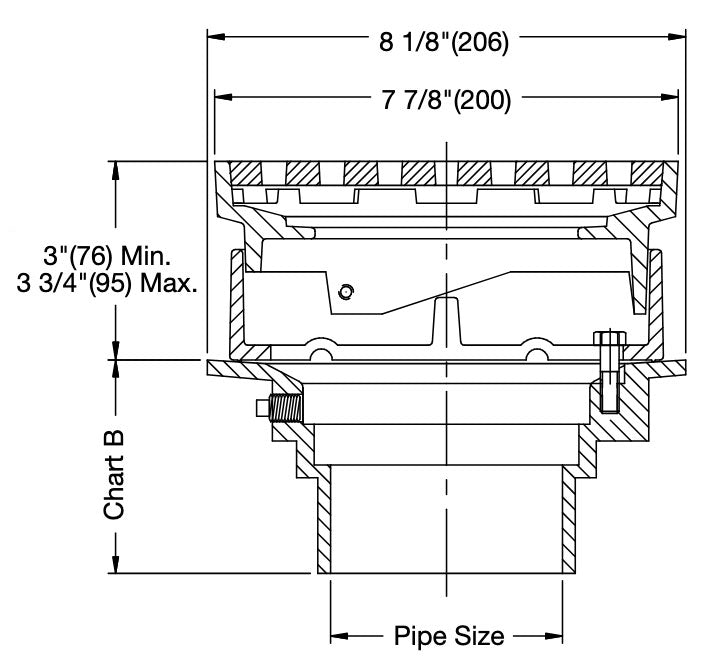

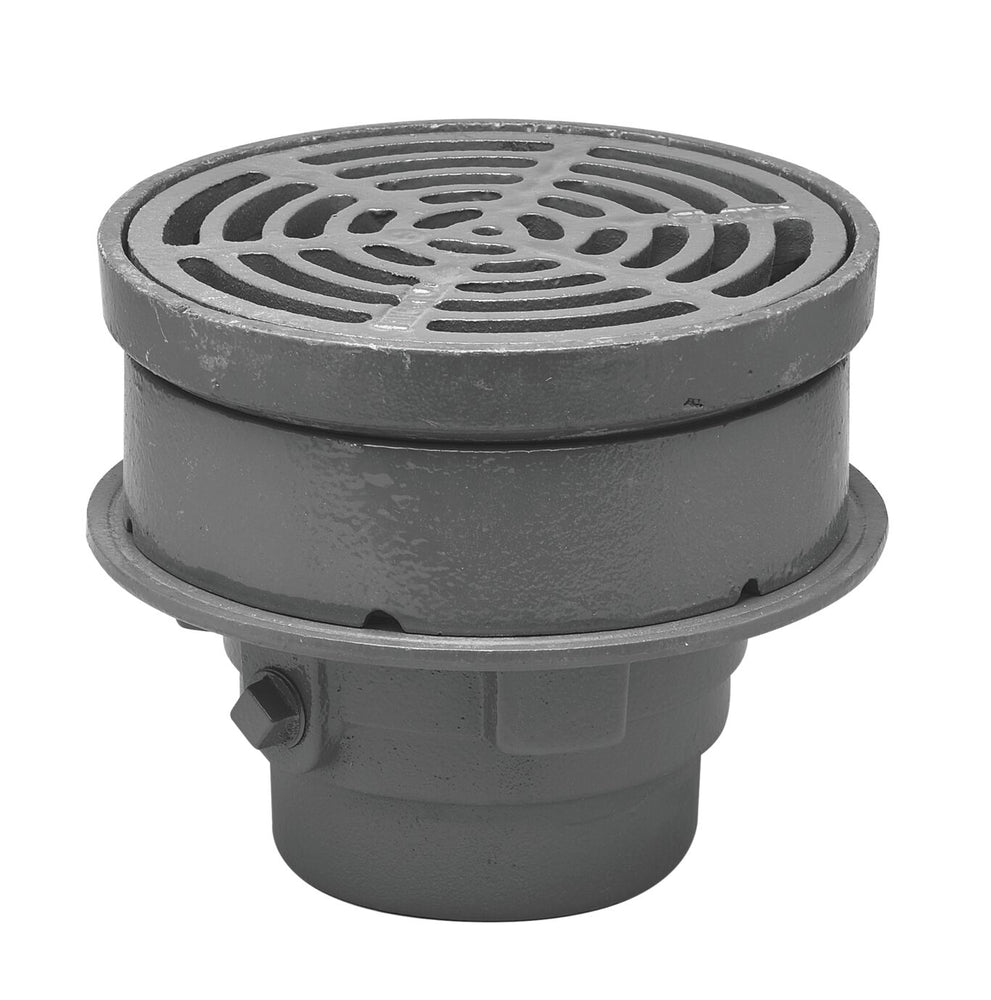

The Watts FD-320 is a high-end area drain designed for commercial environments requiring heavy-duty drainage performance. It features an epoxy-coated cast iron body with an anchor flange and a membrane clamp with weepholes to manage perimeter seepage. The drain includes an 8″ diameter adjustable top that allows field alignment with finished floor levels and is paired with a heel-proof ductile iron grate. The standard outlet is a no-hub connection for easy compatibility with conventional piping systems.

Key Features:

• 8″ (203 mm) diameter adjustable top for finish floor height alignment

• Epoxy-coated cast iron body with anchor flange and weepholes for durability and seepage control

• Heel-proof ductile iron grate designed for heavy commercial traffic

• Standard no-hub outlet with varied outlet size options

• Rated for extra-heavy duty use with features that support load classifications and installation flexibility

Downloads:

• Specification Sheet
