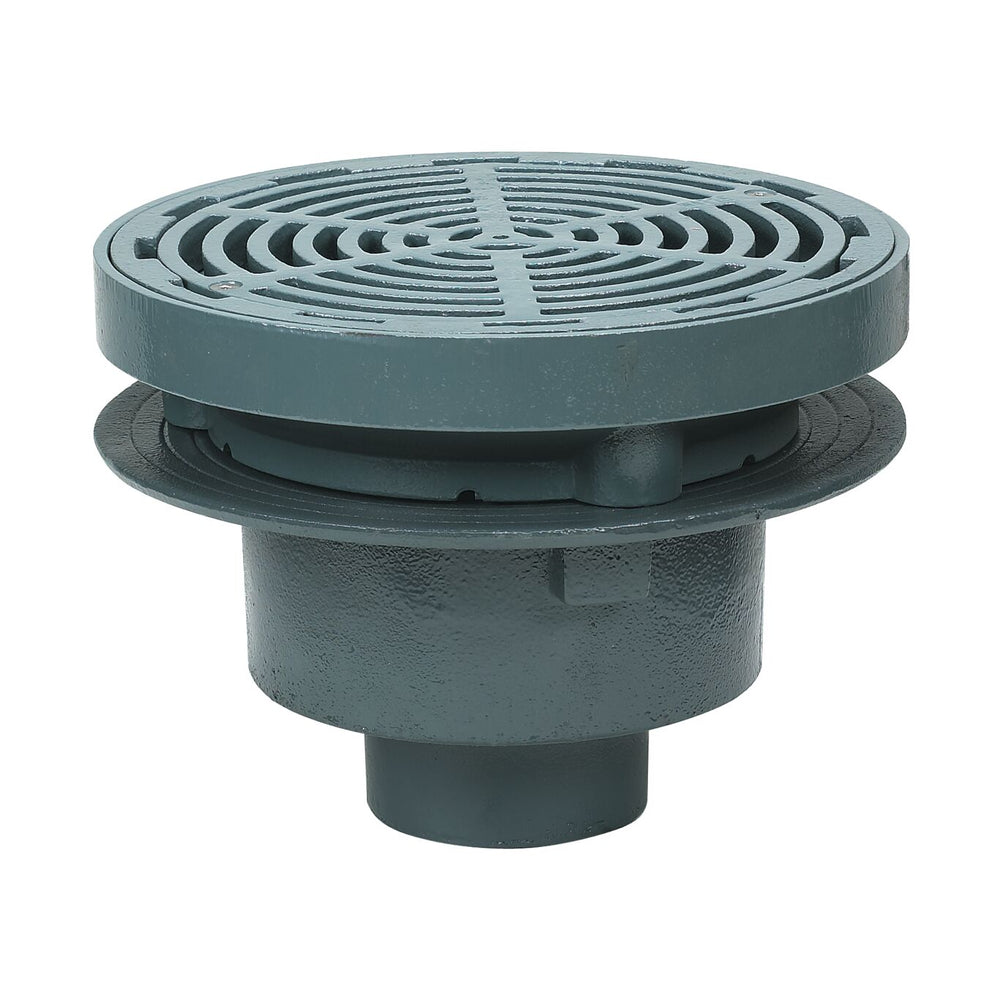

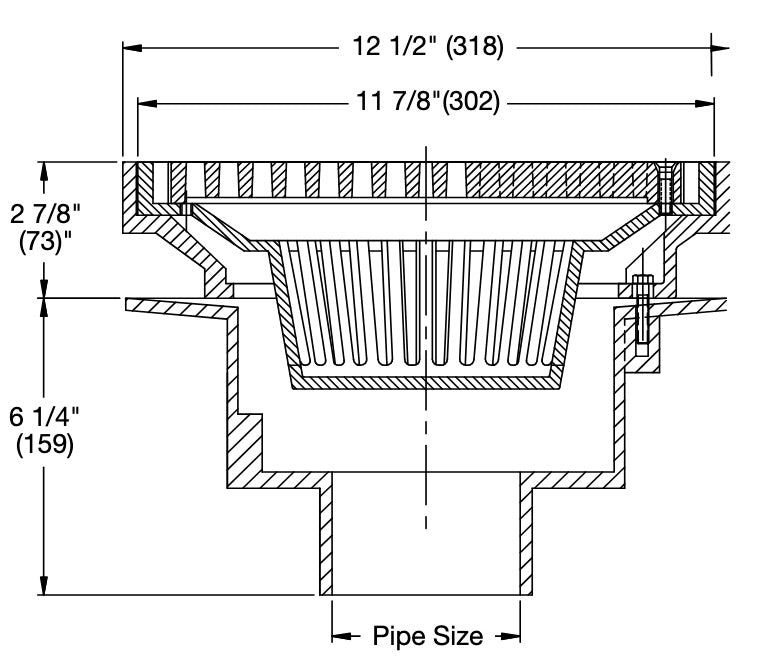

The Watts FD-340-Y-SET is an epoxy-coated cast-iron area drain designed for heavy commercial traffic environments. It features an anchor flange, a membrane clamp with weepholes to manage perimeter seepage, a fixed 12½″ diameter round top, a loose-set heel-proof ductile iron grate supported by a removable bucket, and a standard no-hub outlet connection.

Key Features

• Fixed 12½″ diameter round top with heel-proof ductile iron grate supported by sediment bucket

• Epoxy-coated cast-iron body with anchor flange and dual weepholes for improved drainage integrity

• Designed for heavy-duty (HD) load environments with enhanced traffic resilience

• Standard no-hub outlet with multiple outlet sizes and optional finishes available

• Suitable for large-scale commercial or industrial floor applications requiring durable drainage

Downloads:

• Specification Sheet
