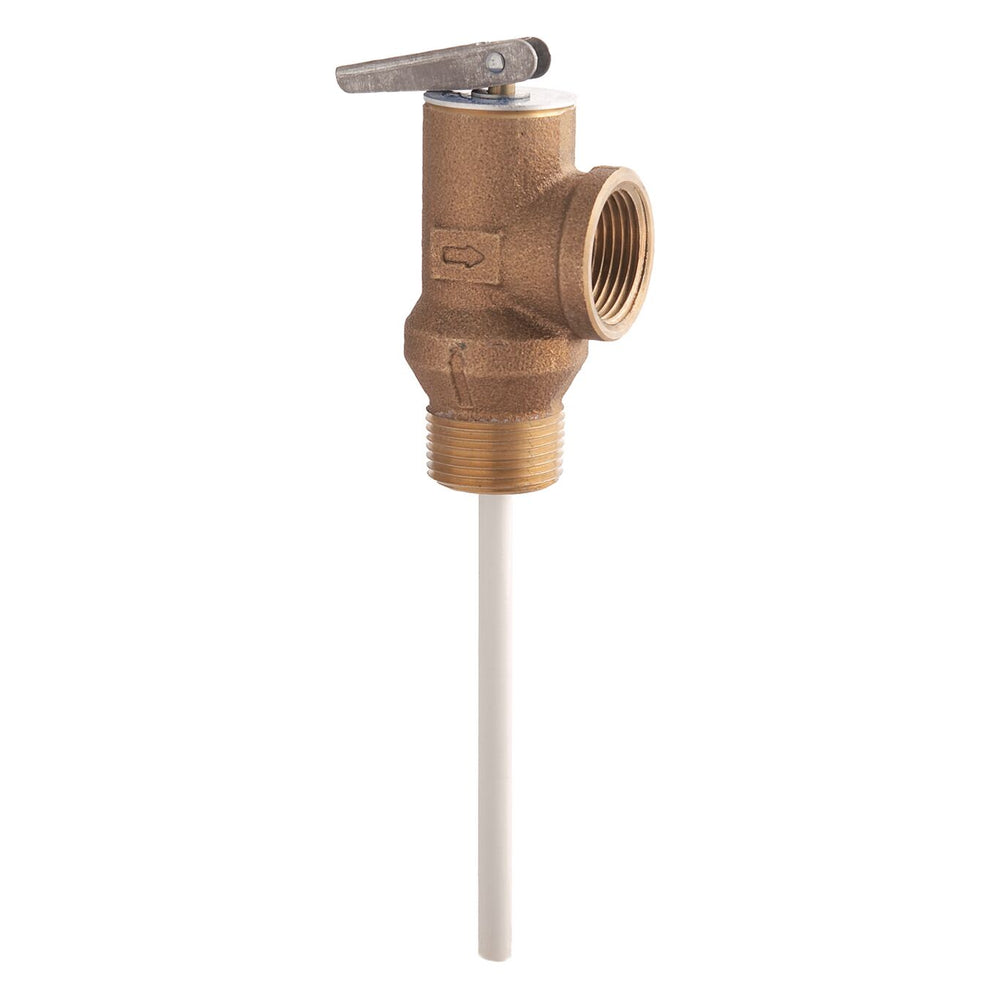

Watts 100XL-090210 - Part of the 100XL Series
$354.38
FREE SHIPPING
SKU 0066082
This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, 8 inch extension thermostat with special thermo-bonded coating, and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief is 90 psi (10.6 bar).
Features- Pressure relief to 90 psi
- Brass body
- ASME rated and CSA listed
- Unique thermostat with special thermo-bonded coating
| Specifications | |
|---|---|
| Body Material | Brass |
| Brand | Watts |
| EAN | 098268007046 |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 90 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0066082 |
| Pressure Range | 75 to 150 PSI |
| Pressure Relief Setting-PSI | 90 |
| Protection Type | Temperature And Pressure |
| Series | 100XL |
| Shank Length | 1 1/8 IN |
| Temperature Relief-Fahrenheit | 210 |
| Thermostat Probe Length | 3 IN |
