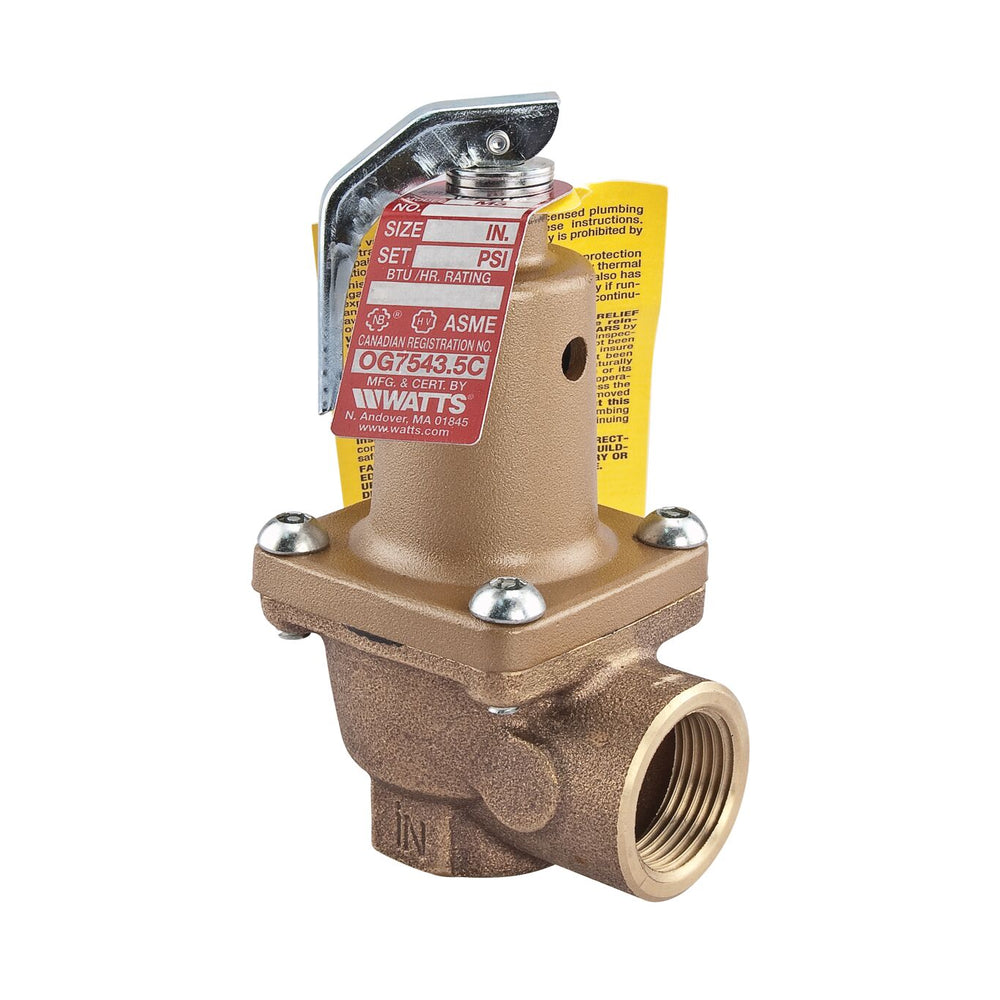

Watts 174A-105 1 - Part of the 174A Series
$1,063.65
FREE SHIPPING
SKU 275265
This pressure relief valve has a 1 inch NPTF female inlet and outlet and a 105 psi pressure relief setpoint. The valve can be used for hot water space heating boiler applications to protect against excessive pressure.
Features- Bronze body construction
- Automatic reseating
- Non-mechanical seat to disc alignment
- Set pressure 105 psi
| Specifications | |
|---|---|
| Body Material | Bronze |
| Brand | Watts |
| EAN | 098268013481 |
| Inlet Connection Size | 1 IN |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Working Pressure-PSI | 79 |
| Outlet Connection Size | 1 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0275265 |
| Pressure Range | 30 to 150 PSI |
| Pressure Relief Setting-PSI | 105 |
| Series | 174A |
