SITEDRAIN 306-W Sheet Drain

SITEDRAIN 306-W Sheet Drain

SITEDRAIN 306-W Sheet Drain 4' x 50' Roll - American Wick Drain

$675.38


FREE SHIPPING
SKU 10190

Free Shipping - Please submit a Quote Request for quantities larger than listed below.

Quantity Price Per Unit

(Free Shipping)
1 $675.38
2+ $641.61
3+ $607.84
10+ $574.07

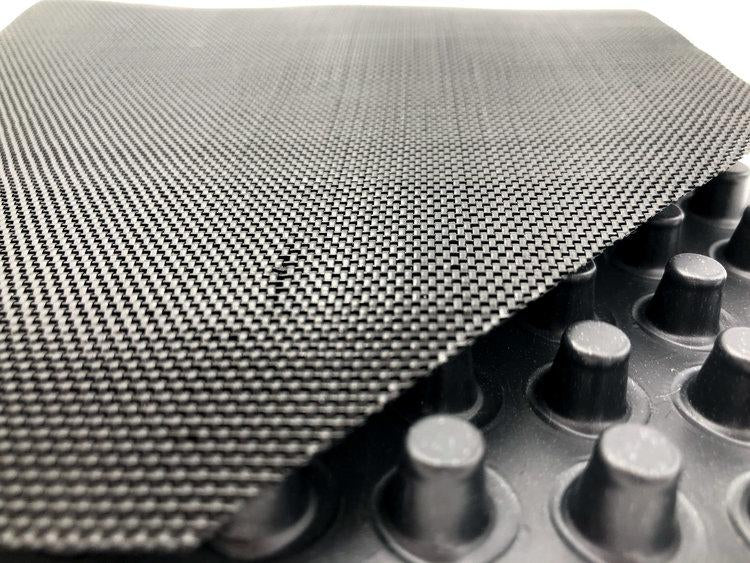

SITEDRAIN Sheet 306-W geocomposite drain is composed of a dimpled polymeric core with a woven monofilament geotextile bonded to the dimple side.

The geotextile allows water to pass through while retaining backfill materials. The solid core allows water collection from one side and provides a continuous flow path to designated drainage exits.

SITEDRAIN Sheet 306-W is an economical solution for single-sided subsurface drainage applications requiring very high strength, moderate flow capacity, and the performance properties of a woven monofilament geotextile.

Looking for another drain?

Call now and speak with one of our product specialists:

(800) 604-5537

Frequently Asked Questions

PRODUCT SPECS

SITEDRAIN - AMERICAN WICK DRAIN

SHIPPING TIME

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

Orders ship from both our Nevada and North Carolina warehouses where the product is manufactured. Most orders ship on average of 5 business days after the order is placed (M-F) if the order is placed before 11:00 AM EST.

Transit times displayed in the map are listed in business days, are approximate and are specific to the American Wick Drain product lines. The day that the order is shipped is not counted as a transit day. Most orders ship via LTL freight. For more precise shipping time for this product please call: (800) 604-5537

The transit times displayed on the map are for our free shipping option.

SITEDRAIN PRODUCT CHART

INSTALLATION &
PRODUCT BROCHURE

American Wick Drain SITEDRAIN prefabricated drainage products may be installed in a variety of civil

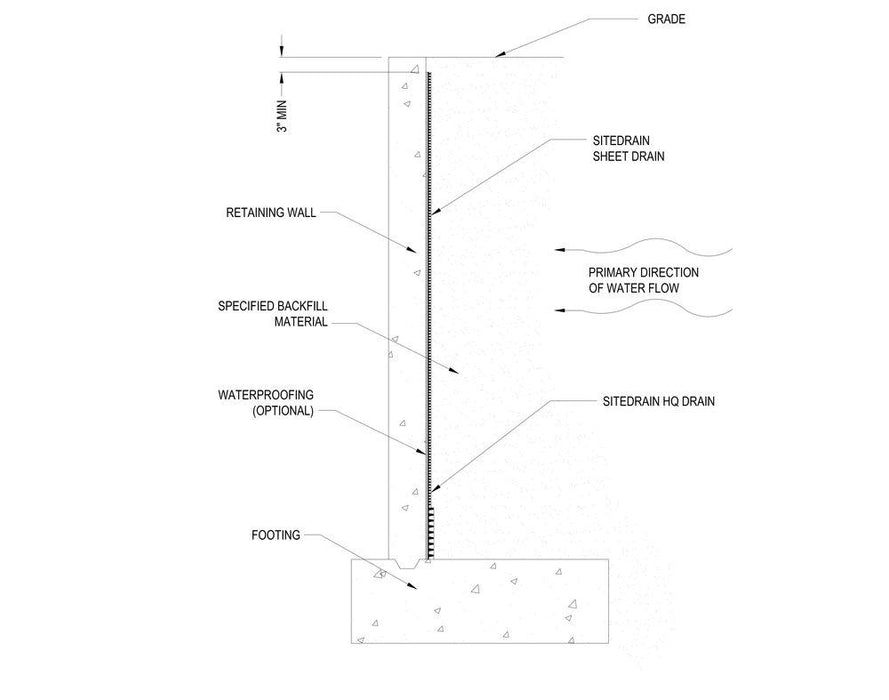

construction applications including: retaining walls, shoring walls, MSE walls, bridge abutments, landfills, split slabs, underslab, cut-slopes, trench drains and cutoff drains.

SITEDRAIN Product
Brochure Download
SITEDRAIN Installation
Guide Download

Applications

AWD geocomposite drainage solutions are available for most civil engineered and site work drainage applications. AWD SITEDRAIN geocomposite drainage products incorporate a wide range of standard or custom geotextiles to meet your design needs. Whether you need basic protection, AASHTO M 288 compliance or a custom-built solution, AWD has a product for your design and your budget.

 SITEDRAIN is approved by State DOT agencies across the USA for subsurface drainage applications to protect highways, bridge approaches and abutments and tunnels. All AWD SITEDRAIN products are available with a wide range of geotextiles including AASHTO M 288 Class 1, 2 or 3 classifications.

AWD strip drains are perfect for providing a low cost, effective solution to managing excess water in residential and commercial green areas. The increased open area geocomposite drainage products offer ensures maximum collection of subsurface water in minimal time. Retrofitting drainage in green areas can be messy and invasive, but AWD strip drain products provide installers with a minimally invasive solution to control excess water and the cost of installation.

Excess moisture in an athletic playing surface creates many challenges. Excess moisture can lead to damaged playing surfaces, a loss of playing time and most critically, reduced safety for players. AWD geocomposite drainage products ensure that subsurface water is quickly and efficiently collected and conveyed away from the playing surface to ensure maximum safety with minimum downtime.

Our geocomposite drainage products can be used to alleviate excess moisture problems in a residential setting. AWD sheet drain products can be used to protect basement walls from excess moisture and when combined with AWD combination drains, provide a first in class solution to a common everyday problem.

These solutions provide an efficient and affordable way to collect and convey onsite stormwater for secondary reuse or detention/retention. AWD products may also contribute to Sustainable Sites (SS) category credits in the Rainwater Management category of LEED v4.

  • Bioretention / Bioswale
  • Blindside Wall
  • Brick & Stone Pavers
  • Bridge Abutment
  • Cut-Off Drains
  • Cut-Slope Drains
  • Golf Course
  • Green Roof
  • Lawn & Grass
  • Natural Athletic Field
  • Parking & Plaza Deck
  • Planters
  • Playgrounds
  • Residential Basements
  • Retaining Wall
  • Roadway Edge Drain
  • Soil Consolidation
  • Soil Nail Wall
  • Soldier Pile & Lagging Wall
  • Spillway
  • Structural Wall
  • Synthetic Turf Surfaces
