Truncated Domes ADA Access Tile - 3' x 5' Mat - Cast in Place

$377.17


FREE SHIPPING
SKU ACC-R-3660-YW

Truncated Domes are the ideal underfoot audible and tactile detectable warning surface to alert visually impaired pedestrians of their proximity to potentially hazardous walking transitions, or obstacles.

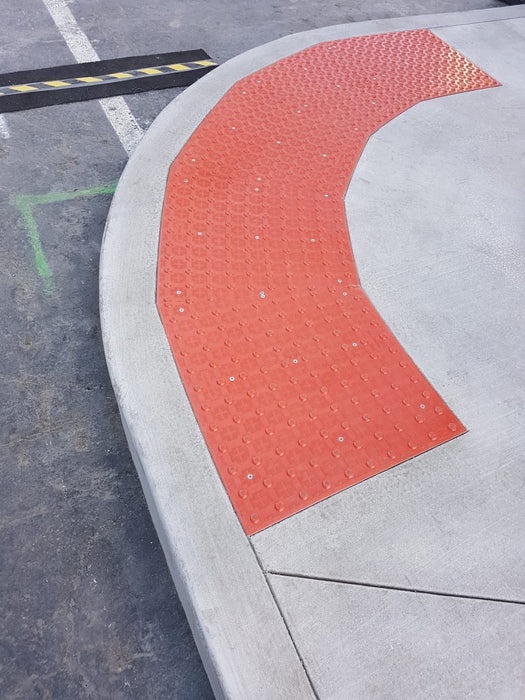

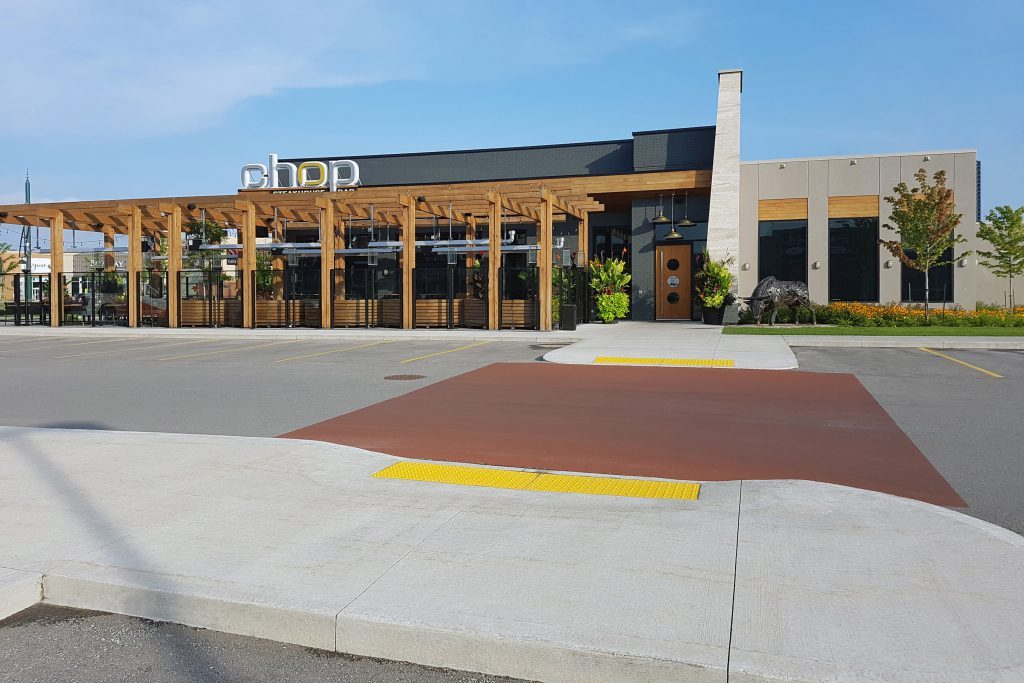

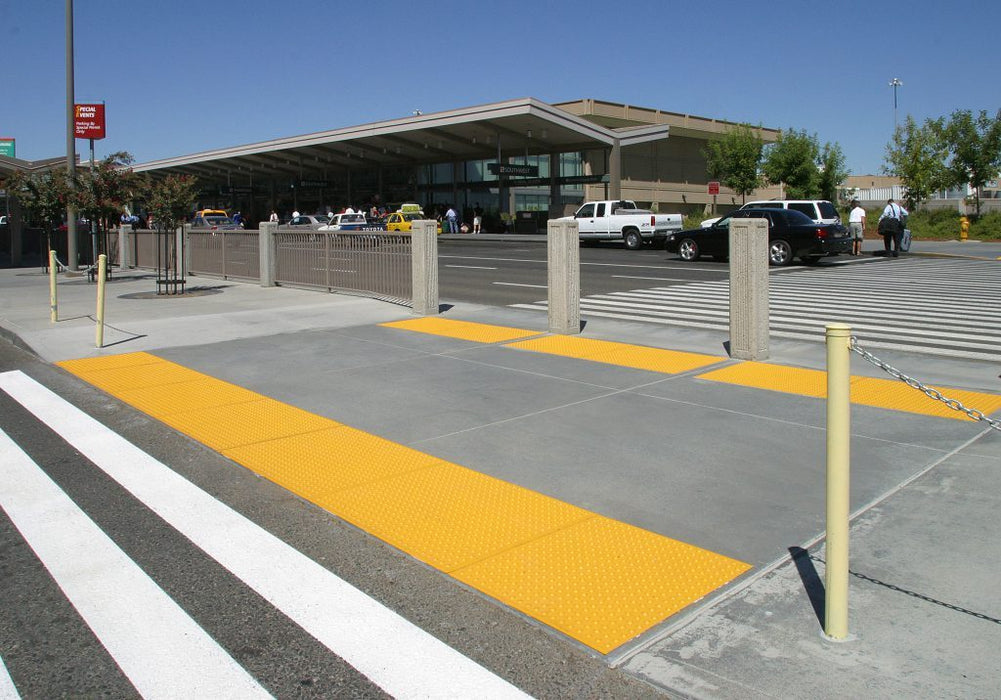

Variable surface ADA tiles are commonly placed in and near sidewalk curb ramps, crosswalks, reflecting pools, top of stair landings, transit platform edge dropoffs, wheelchair ramps, and by vehicle roadways.

The Cast In Place replaceable tiles are designed for application in wet-set concrete installations and are geared for projects requiring durable low-cost ADA compliant tiles.

These tiles if worn or damaged can be swapped out and replaced per unit in mere minutes by removing the anchor screws using a common T-27 Torx Bit driver.

For details on product availability and bulk pricing call us:

(800) 604-5337

Minimum Order = 5 Tiles

PRODUCT SPECS

  • Model: ACC-R-3660
  • Size: 3' X 5' per tile
  • Tile Anchors Included Per Tile: 24
  • Free Shipping
  • Need a written quote?
        Request Online
  • Volume Pricing Available on Large Orders
  • Questions?
    Call (800) 604-5537

CAST IN PLACE TILE -  HIGHLIGHTS

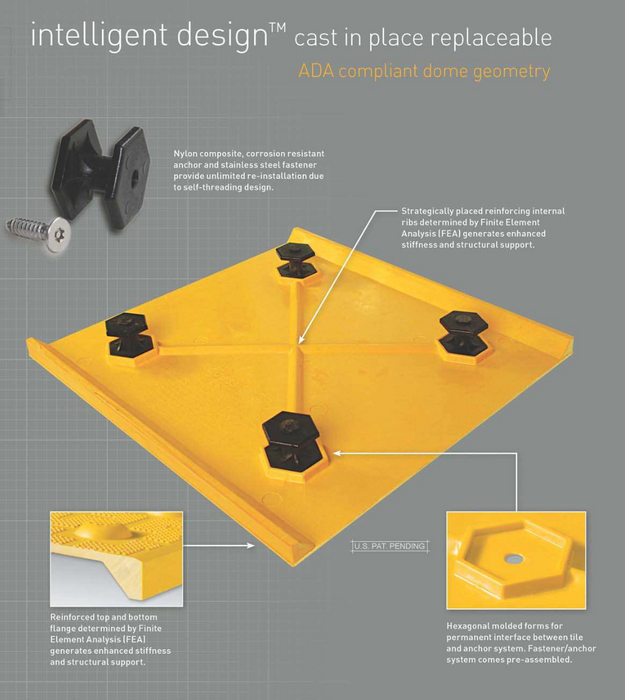

  • Tile geometry allows for consistent dome spacing between adjoining tiles.
  • High density, diamond grip™ pyramid micro texture designed for exceptional slip resistance in wet and dry conditions.
  • Nylon composite, corrosion resistant anchor and stainless-steel fastener provide unlimited re-installation due to self-threading design.
  • Strategically placed reinforcing internal ribs & reinforced top and bottom flange designs both determined by use of Structural Finite Element Analysis (FEA) to enhanced stiffness and structural support.
  • Supports 102.41 tons/sq. ft. of compression. Much stronger than pipe and won't crush over time.
  • Hexagonal molded forms for permanent interface between tile and anchor system. Fastener/anchor system comes pre-assembled.

Full Installation Guide

Download

Technical Spec Sheet

Download

Submittal Package

Download

BRIGHT COLORS FOR MAX VISIBILITY

Yellow and other bright colors like orange and red reflect light making them easier for the eye to see even with severe visual impairment.  This is why most of the ADA products sold are typically bright colors such as:

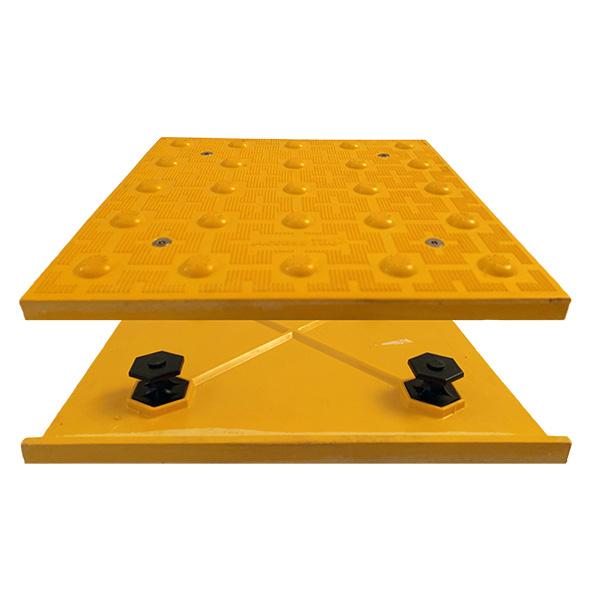

Federal Yellow -YW.

The following color options are also available for the Cast In Place Tiles:

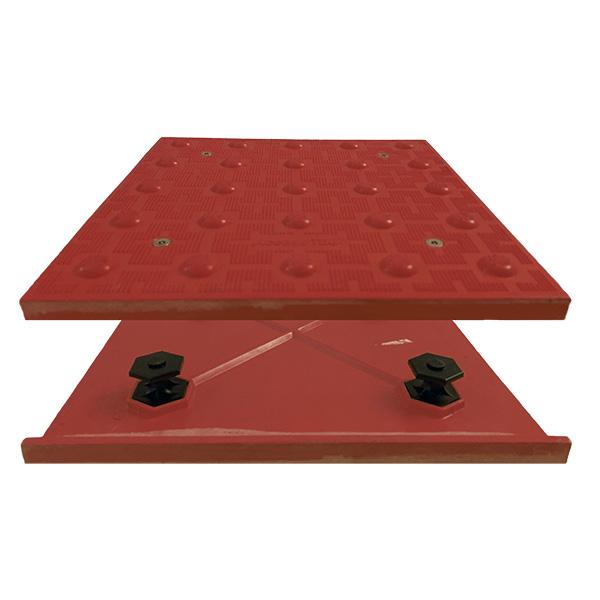

Brick Red - RD

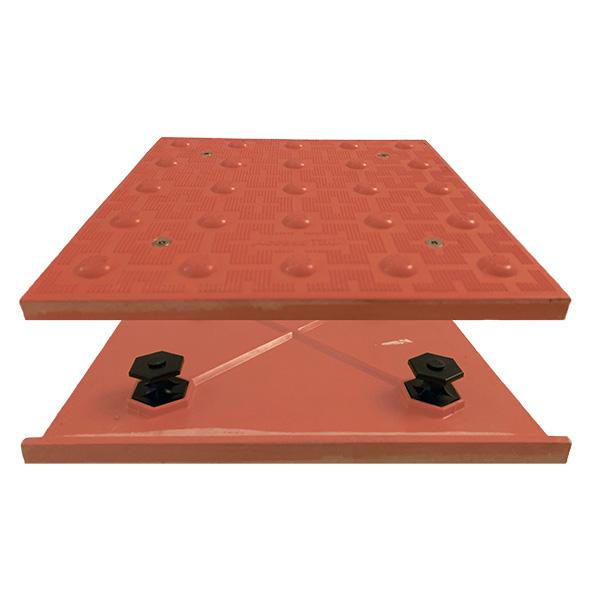

Colonial Red - COL

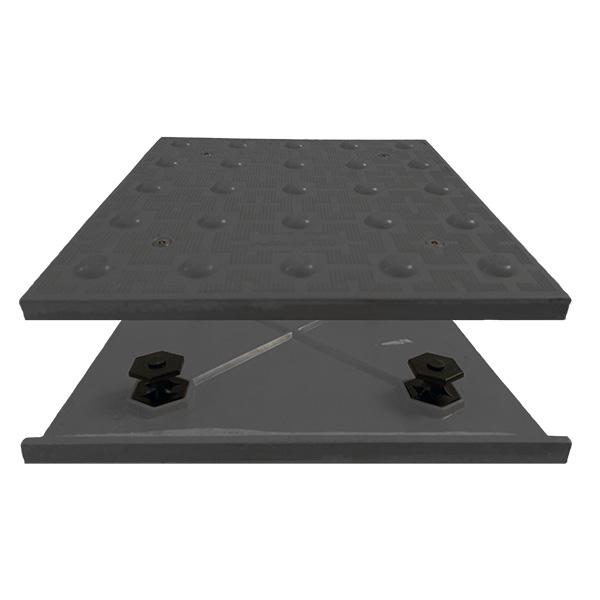

Dark Gray - DG
Onyx Black - BK

INSTALLATION &
MAINTENANCE GUIDE

Full step by step installation and maintenance guides for our Cast In Place and Surface Mount Access Tiles can be found on our Installation and Maintenance Page.

Installation Instructions for Access Tile's ADA Compliant Tiles - FULL GUIDE HERE

SHIPPING

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically om 3-4 business days if the order is placed before 12:00pm noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

FREQUENTLY ASKED QUESTIONS

Questions about our Access Tile products?  Visit our FAQ section here.
