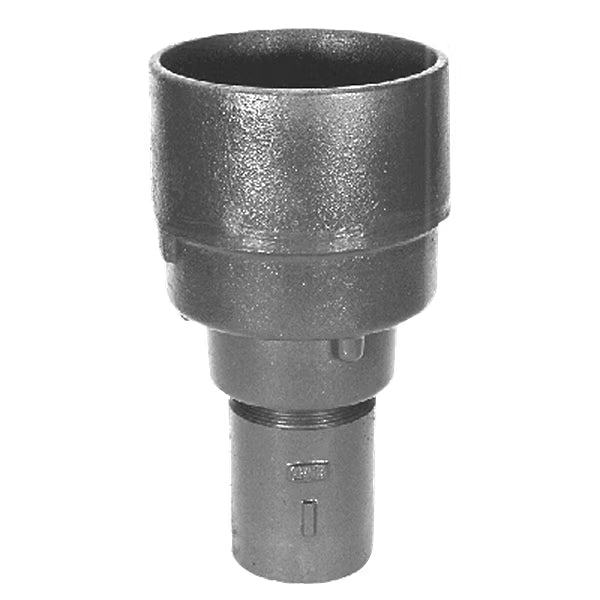

The Zurn Z325 is a durable indirect waste funnel designed for long-lasting performance and effective backflow prevention. Its heavy-duty, dura-coated cast-iron body provides superior corrosion resistance, while the integral backwater valve helps protect against unwanted wastewater backup.

The unit is typically installed partially recessed into the floor, with the valve assembly housed within the floor structure and the top of the funnel flush or slightly above the finished floor surface for a clean, functional appearance.

Key Features

• Dura-coated cast-iron body for long-term strength and corrosion resistance

• Integrated plastic ball float to automatically prevent backflow

• Bronze backwater valve bushing for reliable operation

• Replaceable neoprene seat for easy maintenance and extended service life

• Available in a variety of outlet sizes to meet installation needs

Downloads:

• Specification Sheet

Product Codes: Z325-2NH, Z325-3NH, Z325-4NH, Z325-6NH, Z325-2NH-DB, Z325-3NH-DB, Z325-4NH-DB, Z325-6NH-DB, Z325-2NH-G, Z325-3NH-G, Z325-4NH-G, Z325-6NH-G, Z325-2NH-S, Z325-3NH-S, Z325-4NH-S, Z325-6NH-S
