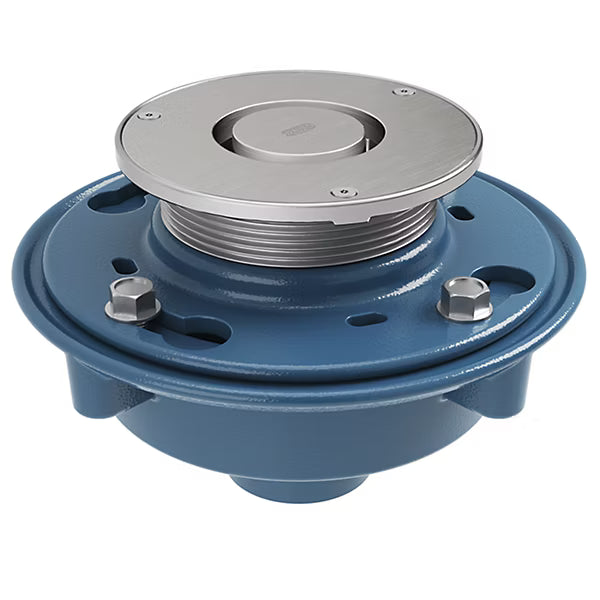

Zurn Z415-LR - Ligature-Resistant "Type LR" Round Floor Drain

Zurn Z415-LR - Ligature-Resistant "Type LR" Round Floor Drain

Zurn Z415-LR - Ligature-Resistant "Type LR" Round Floor Drain

Submit Quote Request for Pricing
$0.00


FREE SHIPPING
SKU Z415-LR

The Zurn Z415-LR is a ligature-resistant floor and shower drain specifically designed for behavioral health, correctional, and mental health care settings. It combines reliable drainage functionality with a safety-oriented design that helps reduce the risk of self-harm, while still performing under everyday use.

*Please submit a quote request below for pricing and availability on this product.

Key Features

  • Tapered Radial Baffle Design — The patented radial baffle resists looping, minimizing the ability to wedge objects or strings.

  • Smooth, Cut-Resistant Surface & Vandal-Proof Fasteners — The strainer has polished, smooth edges and vandal-proof screws to prevent tampering or disassembly.

  • Reliable Drainage & Durable Materials — Rated for 5 GPM at ½″ head, with a Dura-coated cast iron body, adjustable collar, membrane clamp, and light duty/heel-proof design suitable for foot traffic in healthcare settings.

Downloads:

Product Codes: Z415LR-2NH, Z415LR-3NH, Z415LR-4NH, Z415LR-6NH, Z415LR-2NL, Z415LR-3NL, Z415LR-4NL, Z415LR-6NL, Z415LR-2IP, Z415LR-3IP, Z415LR-4IP, Z415LR-6IP, Z415LR-2IC, Z415LR-3IC, Z415LR-4IC, Z415LR-6IC

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z415-LR – Ligature-Resistant “Type LR” Round Floor Drain: Security Meets Functionality

Discover how the Zurn Z415-LR combines reliable drainage and safety design for high-risk facilities like behavioral health and secure settings.

The Zurn Z415-LR is a ligature-resistant floor drain designed to reduce the potential for self-harm in secure environments while maintaining dependable drainage performance. Its design includes a tapered radial baffle to resist looping, smooth surfaces to prevent wedging, vandal-resistant fasteners, and robust plumbing components.

Zurn Z415-LR schematic
Zurn Z415-LR – Dimensional & Component Schematic

Design Features & Safety Elements

  • Tapered radial baffle helps resist looping of cords or straps for ligature resistance.
  • Smooth, low-profile strainer geometry minimizes wedging and potential attachment points.
  • Vandal-resistant fasteners and tamper-resistant assembly for added security.
  • Dura-Coated cast iron body for corrosion resistance and structural durability.
  • Adjustable collar & membrane clamp to match substrate and waterproofing elevations.
  • Typical drainage performance: 5 GPM at ½″ head.

Where & Why It’s Used

Ideal for behavioral health facilities, psychiatric wards, correctional institutions, and other high-security environments where minimizing ligature risk is essential.

In these settings, floor drains are critical safety elements. The Z415-LR’s geometry helps reduce vulnerable attachment points while reliably routing wastewater.

Zurn company logo
Zurn – Leader in Secure & Innovative Drainage Solutions

Technical Specifications

Drainage Rate: 5 GPM @ ½″ head (typical)

Body: Dura-Coated cast iron

Strainer Design: Smooth, low-profile, ligature-resistant

Fasteners: Vandal-resistant

Adjustability: Invertible membrane clamp & adjustable collar

Applications: Secure, high-risk environments

Use Case: Behavioral Health Unit Upgrade

During a wet-area renovation in a behavioral health unit, traditional drains presented tie-off risks. By specifying Zurn Z415-LR drains with tapered radial baffles, secure fasteners, and smooth geometry, the facility achieved both safety and dependable drainage. Staff reported easier cleaning and fewer risk surfaces in patient bathrooms.

Frequently Asked Questions

What does “Type LR” mean?
“Type LR” stands for Ligature-Resistant Round—indicating the round strainer geometry and security-focused design to reduce potential attachment points.
Does the safety design reduce drainage performance?
No. The Z415-LR is engineered for both safety and function and is typically rated around 5 GPM at ½″ head.
Can it integrate with membranes and varying slab heights?
Yes. It includes an invertible membrane clamp and an adjustable collar (often with seepage slots) to accommodate different elevations.
Are the fasteners tamper-resistant?
Yes—vandal-resistant fasteners help prevent disassembly or tampering in secure settings.
