Zurn Z415H - Body Assembly with “Type H” Strainer

Zurn Z415H - Body Assembly with “Type H” Strainer

Zurn Z415H - Body Assembly with “Type H” Strainer

$2,643.96


FREE SHIPPING
SKU ZN415-2NH-6H

The Zurn Z415H finish-floor drain is crafted to blend seamlessly with decorative floor surfaces while delivering reliable performance. Ideal for interiors like bathrooms, showers, spas, or lobbies, it supports flooring aesthetics without compromising on drainage capability.

Key Features

  • Flush, Low-Profile Grate: Designed to sit nearly level with surrounding tile, stone, or other finished floors, creating a subtle, integrated appearance.

  • Durable, Moisture-Resistant Construction: Built to endure daily use in wet environments with components selected for corrosion resistance and robustness.

  • Waterproofing Integration & Debris Protection: Contains features to secure the waterproofing membrane and includes grate or strainer geometry that resists debris ingress, helping maintain clear flow and simplify maintenance.

Downloads:

Product Codes: Z415H-2IC, Z415H-3IC, Z415H-4IC, Z415H-2IG, Z415H-3IG, Z415H-4IG, Z415H-2IP, Z415H-3IP, Z415H-4IP, Z415H-2NH, Z415H-3NH, Z415H-4NH, Z415H-2NL, Z415H-3NL, Z415H-4NL, ZB415H-2IC, ZB415H-3IC, ZB415H-4IC, ZB415H-2IG, ZB415H-3IG, ZB415H-4IG, ZB415H-2IP, ZB415H-3IP, ZB415H-4IP, ZB415H-2NH, ZB415H-3NH, ZB415H-4NH, ZB415H-2NL, ZB415H-3NL, ZB415H-4NL, ZN415H-2IC, ZN415H-3IC, ZN415H-4IC, ZN415H-2IG, ZN415H-3IG, ZN415H-4IG, ZN415H-2IP, ZN415H-3IP, ZN415H-4IP, ZN415H-2NH, ZN415H-3NH, ZN415H-4NH, ZN415H-2NL, ZN415H-3NL, ZN415H-4NL,

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z415H – Body Assembly with “Type H” Strainer

The Z415H is a versatile finish-floor/shower drain built on Zurn’s durable Z415 cast-iron body and furnished with an adjustable “Type H” round strainer—a clean, dependable choice for commercial interiors.

In technical terms, the Z415H combines a Dura-Coated cast-iron body with bottom outlet, a combination invertible membrane clamp and adjustable collar with seepage slots, and a secured, adjustable Type H strainer that incorporates a clamp device at the finished floor. In plain English: it’s a tough, finish-friendly drain that ties neatly into waterproofing, manages incidental moisture, and sets flush with tile or resinous floors.

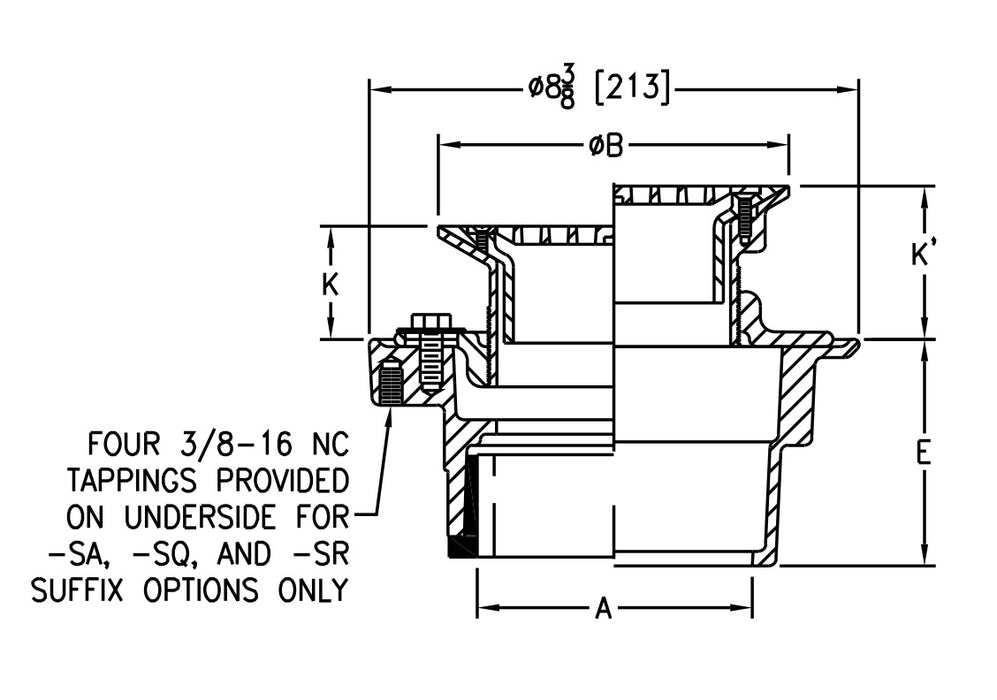

Zurn Z415H schematic showing Z415 cast-iron body, invertible clamp, adjustable collar with seepage slots, and Type H round adjustable strainer with clamp device
Z415H – Dimensional & Component Schematic

Key Features

  • Dura-Coated cast-iron body with bottom outlet for long service life.
  • Invertible membrane clamp + adjustable collar with seepage slots for secure waterproofing and under-tile moisture relief.
  • “Type H” round strainer: adjustable, light-duty, with an integral clamp/heel-proof grate to keep the walking surface safe and tidy.
  • Finish options: polished bronze (ZB) or polished nickel bronze (ZN) to coordinate with surrounding fixtures.
  • Outlet families/sizes: No-Hub, IP (threaded), Neo-Loc, Inside Caulk/Integral Gasket in typical 2"–4" sizes—verify on submittal.

Where Z415H Excels

Specify for restrooms, locker/shower rooms, education & healthcare cores, hospitality, and retail—spaces that demand clean aesthetics, reliable drainage, and straightforward upkeep.

Benefits in Plain English

  • Cleaner installs—clamp + seepage paths reduce trapped moisture and edge staining.
  • Flush finish—the adjustable head dials in elevation with the final floor.
  • Easy service—secured top supports routine cleanouts without loose parts.
Zurn brand logo
Zurn – Finish-Floor Drainage

Specifications at a Glance

Body: Z415 cast iron, Dura-Coated; bottom outlet

Interface: Invertible membrane clamp + adjustable collar with seepage slots

Top: Type H round, adjustable, light-duty; clamp device at finished floor; heel-proof grate

Finishes: ZB (polished bronze) / ZN (polished nickel bronze)

Outlets: 2"–4" typical (No-Hub / IP / Neo-Loc / IC / IG; confirm on submittal)

Applications: Interior finish floors & showers in commercial spaces

Always confirm dimensions, outlet family/size, head size, finish, and furnished options on the project submittal.

Installation Highlights

1) Rough-In & Elevation

Set the body to rough height; maintain slope to drain and leave travel for final head adjustment.

2) Membrane Tie-In

Clamp the waterproofing at the invertible collar. Keep seepage slots clear to relieve incidental moisture beneath the finish.

3) Final Set & Service

Adjust the Type H head flush, water-test, and document a simple cleaning cadence for custodial teams.

Case Study: Healthcare Core Refresh

A clinic retrofit required drains that integrated cleanly with new resinous floors and simplified upkeep. Specifying Zurn Z415H provided the clamp device at the finish for reliable waterproofing and the heel-proof top for safety. After turnover, facilities reported fewer perimeter-staining issues and faster cleanouts on routine rounds.

Frequently Asked Questions

What defines the “Type H” top?
Zurn’s Type H head is a round, adjustable, light-duty strainer with a clamp device at the finished floor and a heel-proof grate—clean looks with dependable flow and safer footing.
Which sizes/outlets are typical?
Pair common outlets (2", 3", 4") and connection families (No-Hub, IP threaded, Neo-Loc, IC/IG) to your riser and code requirements—verify on the project submittal.
How do the seepage slots help?
They create weep paths that relieve incidental moisture under tile or coatings, helping reduce edge discoloration and preserve the finish system.
