Zurn Z415J - Body Assembly with “Type J” Strainer

Zurn Z415J - Body Assembly with “Type J” Strainer

Zurn Z415J - Body Assembly with “Type J” Strainer

$1,762.97


FREE SHIPPING
SKU ZN415-2NH-8J

The Zurn Z415J finish-floor drain is designed to disappear into your flooring while keeping water moving efficiently. Ideal for bathrooms, shower rooms, spa areas, and other interiors where both appearance and drainage matter, it blends into the textures and lines of your finished floors without calling attention to itself.

Key Features

  • Flush, Low-Profile Grate: The grate is crafted to sit nearly level with the surface of the finished floor—be it tile, stone, or decorative surfaces—so that it does not disrupt the visual continuity.

  • Robust Wet-Area Construction: Built from materials selected for durability in wet conditions and resistance to corrosion, withstanding foot traffic and daily use.

  • Waterproofing & Debris Control: Includes details to integrate securely with the waterproof membrane, and a grate/strainer arrangement that blocks debris and helps maintain clear flow and reduce clogging.

  • Includes Type J Heel Proof Strainer

Downloads:

Product Codes: Z415J-2IC, Z415J-3IC, Z415J-4IC, Z415J-2IG, Z415J-3IG, Z415J-4IG, Z415J-2IP, Z415J-3IP, Z415J-4IP, Z415J-2NH, Z415J-3NH, Z415J-4NH, Z415J-2NL, Z415J-3NL, Z415J-4NL, ZB415J-2IC, ZB415J-3IC, ZB415J-4IC, ZB415J-2IG, ZB415J-3IG, ZB415J-4IG, ZB415J-2IP, ZB415J-3IP, ZB415J-4IP, ZB415J-2NH, ZB415J-3NH, ZB415J-4NH, ZB415J-2NL, ZB415J-3NL, ZB415J-4NL, ZN415J-2IC, ZN415J-3IC, ZN415J-4IC, ZN415J-2IG, ZN415J-3IG, ZN415J-4IG, ZN415J-2IP, ZN415J-3IP, ZN415J-4IP, ZN415J-2NH, ZN415J-3NH, ZN415J-4NH, ZN415J-2NL, ZN415J-3NL, ZN415J-4NL,

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z415J – Body Assembly with “Type J” Strainer

The Z415J pairs Zurn’s proven Z415 cast-iron drain body with an adjustable “Type J” round strainer, delivering a neat finish and reliable service in wet-area interiors.

In technical terms, the Z415J is a finish-floor/shower drain assembly that combines a Dura-Coated cast-iron body with bottom outlet, a combination invertible membrane clamp and adjustable collar with seepage slots, and a secured, adjustable Type J strainer. In plain English: it’s a tough, finish-friendly drain that ties cleanly into waterproofing, manages incidental moisture, and sets flush with tile or resinous flooring.

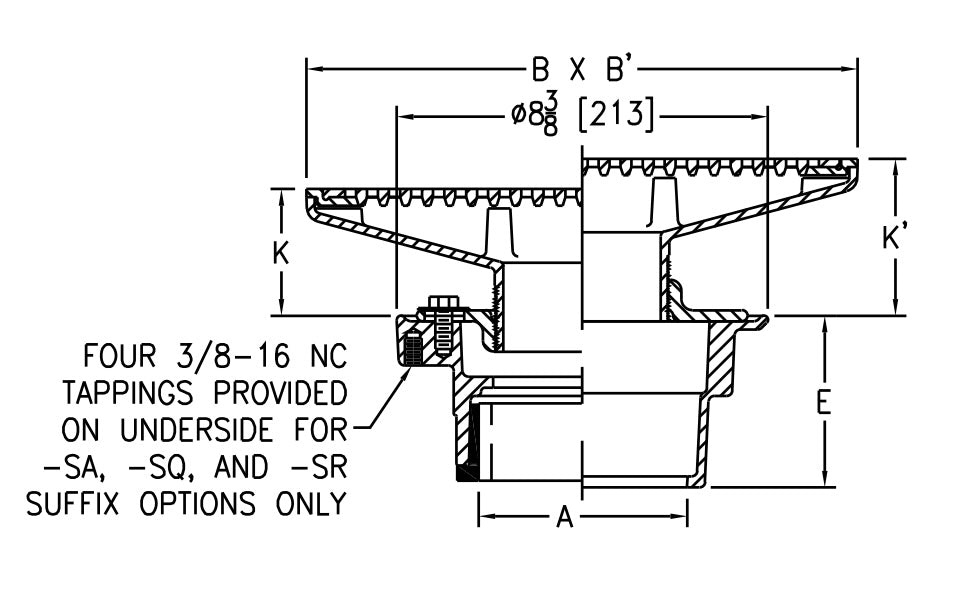

Zurn Z415J schematic showing cast-iron body, invertible clamp, adjustable collar with seepage slots, and Type J round adjustable strainer
Z415J – Dimensional & Component Schematic

Key Features

  • Dura-Coated cast-iron body (Z415 family) with bottom outlet for long service life.
  • Invertible membrane clamp + adjustable collar with seepage slots—secure waterproofing tie-in and under-tile moisture relief.
  • “Type J” round strainer: adjustable, light-duty, secured grate for a clean, flush finish.
  • Finish options typically include polished bronze (ZB) or polished nickel bronze (ZN) to match visible hardware.
  • Outlet families/sizes to match common risers (No-Hub / IP threaded / Neo-Loc; 2"–4" typical—verify on submittal).

Where Z415J Excels

Ideal for commercial restrooms, locker/shower rooms, education and healthcare corridors, and hospitality. The Type J head maintains a refined look while the clamp/collar assembly protects finishes from trapped moisture.

Benefits (Plain English)

  • Cleaner installs—weep/seepage paths help reduce perimeter staining.
  • Flush finish—adjustable top dials in elevation with tile or coatings.
  • Easy upkeep—secured grate supports routine cleaning without loose parts.
Zurn brand logo
Zurn – Finish-Floor Drainage

Specifications at a Glance

Body: Z415 cast iron, Dura-Coated; bottom outlet

Interface: Invertible clamp + adjustable collar with seepage slots

Top: Type J round, adjustable, light-duty strainer; secured

Finishes: ZB (polished bronze) / ZN (polished nickel bronze)

Outlet options: Typical 2"–4" in No-Hub / IP threaded / Neo-Loc (confirm on submittal)

Applications: Interior finish floors & showers in commercial spaces

Always verify dimensions, outlet family/size, head size, finish, and furnished options on the project submittal.

Installation Highlights

1) Rough-In & Elevation

Set the body to rough height; maintain slope to drain and leave travel for the adjustable top.

2) Membrane Tie-In

Clamp the waterproofing to the invertible collar. Keep seepage slots clear to relieve incidental moisture beneath the finish.

3) Final Set & Service

Adjust the Type J head flush; water-test and document a simple cleaning cadence for custodial teams.

Case Study: University Restroom Upgrade

A campus modernization specified Zurn Z415J to improve finish quality and maintenance. The clamp + seepage design limited perimeter staining beneath large-format tile, while the adjustable Type J top delivered consistent flush alignment across differing tile thicknesses. Facilities reported fewer odor/staining tickets and faster cleanouts in the first term.

Frequently Asked Questions

What defines the “Type J” top?
Zurn’s Type J head is a round, adjustable, light-duty strainer that secures to the body and sets flush with the finished floor for a clean, safe surface.
Which sizes/outlets are typical?
Pair common outlets (2", 3", 4") and connection families (No-Hub, IP threaded, Neo-Loc) to match the riser. Confirm details and available head sizes on the submittal.
How do the seepage slots help?
They create weep paths to relieve incidental moisture under tile or resinous coatings, helping reduce edge discoloration and extend finish life.
