Zurn Z415K - Body Assembly with “Type K” Strainer

Zurn Z415K - Body Assembly with “Type K” Strainer

Zurn Z415K - Body Assembly with “Type K” Strainer

$3,261.95


FREE SHIPPING
SKU ZN415-2H-5K

The Zurn Z415K finish-floor drain is engineered to provide dependable water management while blending seamlessly into decorative interiors. Perfect for showers, lobbies, spas, or other finished spaces, it offers effective drainage without interrupting the aesthetic continuity of your flooring.

Key Features

  • Flush, Low-Profile Grate: Designed to lie nearly flush with surrounding decorative flooring—tile, stone, or specialty finishes—so the drain becomes visually unobtrusive.

  • Robust Wet-Area Construction: Built with materials that resist moisture, wear, and corrosion, ensuring long life even under frequent use in wet environments.

  • Waterproofing & Debris Protection: Includes features to integrate securely with waterproofing membranes and a grate/strainer design that helps block debris, maintaining clear flow and reducing clogging.

Downloads:

Product Codes: Z415K-2IC, Z415K-3IC, Z415K-4IC, Z415K-2IG, Z415K-3IG, Z415K-4IG, Z415K-2IP, Z415K-3IP, Z415K-4IP, Z415K-2NH, Z415K-3NH, Z415K-4NH, Z415K-2NL, Z415K-3NL, Z415K-4NL, ZB415K-2IC, ZB415K-3IC, ZB415K-4IC, ZB415K-2IG, ZB415K-3IG, ZB415K-4IG, ZB415K-2IP, ZB415K-3IP, ZB415K-4IP, ZB415K-2NH, ZB415K-3NH, ZB415K-4NH, ZB415K-2NL, ZB415K-3NL, ZB415K-4NL, ZN415K-2IC, ZN415K-3IC, ZN415K-4IC, ZN415K-2IG, ZN415K-3IG, ZN415K-4IG, ZN415K-2IP, ZN415K-3IP, ZN415K-4IP, ZN415K-2NH, ZN415K-3NH, ZN415K-4NH, ZN415K-2NL, ZN415K-3NL, ZN415K-4NL,

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z415K – Body Assembly with “Type K” Strainer

The Z415K is a rugged floor & shower drain that pairs a Dura-Coated cast-iron body with an adjustable “Type K” angular, light-duty strainer—a dependable, finish-friendly choice for commercial interiors.

In technical terms, the Z415K uses a bottom-outlet cast-iron body with a combination invertible membrane clamp and an adjustable collar with seepage slots, furnished with a Type K angular strainer (secured, light-duty) in bronze or nickel-bronze finishes. It’s a durable drain that ties cleanly into waterproofing, manages incidental moisture, and finishes flush with tile or resinous flooring.

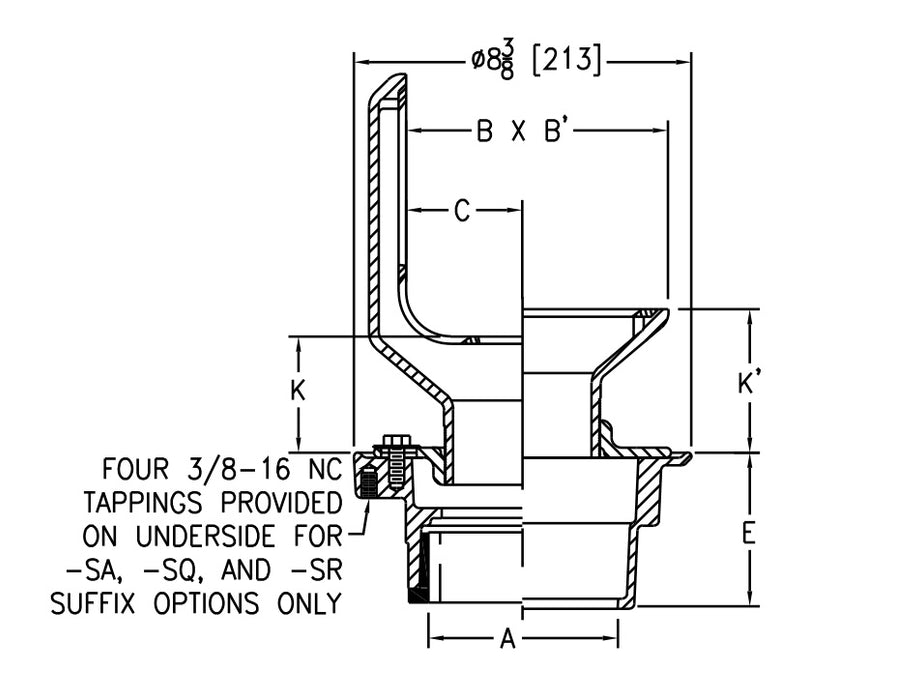

Zurn Z415K schematic showing cast-iron body, clamp collar with seepage slots, and Type K angular adjustable strainer
Z415K – Dimensional & Component Schematic

Key Features

  • Dura-Coated cast-iron body with bottom outlet for long-term service in wet areas.
  • Invertible membrane clamp + adjustable collar with seepage slots—secure waterproofing tie-in with built-in weep paths.
  • “Type K” strainer: angular, adjustable, light-duty top with secured flush-type angle grate for a clean surface look.
  • Finish options: polished bronze (ZB) or polished nickel bronze (ZN) to match visible hardware.
  • Common outlet families/sizes: No-Hub / IP (threaded) / Neo-Loc, typically 2", 3", 4" (verify on submittal).

Where Z415K Excels

Ideal for restrooms, locker/shower rooms, hospitality, and education/healthcare corridors. The Type K angular grate offers a refined surface aesthetic, while the clamp/collar design protects finishes and simplifies rework.

Benefits

  • Cleaner installs—weep/seepage paths help relieve under-tile moisture and reduce perimeter staining.
  • Flush finish—the adjustable head dials in final elevation with tile or coatings.
  • Easy upkeep—secured grate supports routine cleaning without loose parts.
Zurn brand logo
Zurn – Finish-Floor Drainage

Specifications at a Glance

Body: Z415 cast iron, Dura-Coated; bottom outlet

Interface: Invertible clamp + adjustable collar with seepage slots

Top: Type K angular, adjustable, light-duty strainer; secured flush-type angle grate

Finishes: Polished bronze (ZB) / polished nickel bronze (ZN)

Outlet options: 2"–4" typical (No-Hub / IP threaded / Neo-Loc; confirm on submittal)

Applications: Interior finish floors & showers in commercial spaces

Always confirm dimensions, outlet family/size, head size designation (e.g., -5K or -7K), finish, and furnished options on the project submittal.

Installation Highlights

1) Rough-In & Elevation

Set the body to rough height; maintain slope to drain and leave travel for top adjustment.

2) Membrane Tie-In

Clamp the waterproofing to the invertible collar. Keep seepage slots clear to relieve incidental moisture under the finish.

3) Final Set & Service

Adjust the Type K head flush; water-test and document a simple cleaning cadence for custodial teams.

Case Study: Hospitality Core Modernization

A boutique hotel refreshed guest-floor restrooms and showers using Zurn Z415K. The angular, flush-type grate delivered the clean look the designer wanted, while the clamp + seepage design minimized perimeter staining. Post-turnover, facilities reported faster cleanouts and consistent flush alignment across varying tile thicknesses.

Frequently Asked Questions

What defines the “Type K” top?
Zurn’s Type K head is an angular, adjustable, light-duty strainer with a secured, flush-type angle grate—great for neat surface lines in public interiors.
What head sizes exist for Type K?
Common designations include -5K and -7K. Match the head size to the room scale and expected flow; verify on the submittal.
Which outlet should I specify?
Choose to match the riser and local standards—No-Hub for shielded couplings, IP threaded where specified, or Neo-Loc gasketed outlets. Confirm sizes (2"–4") and pairings on the project submittal.
