Zurn Z415N - Body Assembly with “Type N” Strainer

Zurn Z415N - Body Assembly with “Type N” Strainer

Zurn Z415N - Body Assembly with “Type N” Strainer

$903.99


FREE SHIPPING
SKU Z415-2NH-7N

The Zurn Z415N finish floor / shower drain is engineered to combine long-term performance with refined aesthetics. Ideal for both residential and commercial wet spaces—such as bathrooms, locker rooms, and spas—it offers reliable drainage while integrating harmoniously with finished floor surfaces.

Key Features

  • Dura-Coated Cast Iron Body with Bottom Outlet: Built for strength and corrosion resistance in wet, high-use environments.

  • Type N Strainer with Deep Flanged Grate: Offers a refined, light-duty strainer design that blends with surrounding floors while allowing efficient flow.

  • Combination Invertible Membrane Clamp & Adjustable Collar with Seepage Slots: Facilitates secure membrane sealing, accommodates different floor heights, and supports water entry around the edge when needed.

Downloads:

Product Codes: Z415N-2NH-7N, Z415N-2NH-9N, Z415N-3NH-7N, Z415N-3NH-9N, Z415N-4NH-7N, Z415N-4NH-9N, Z415N-6NH-9N, Z415N-2NL-7N, Z415N-3NL-7N, Z415N-4NL-7N, Z415N-6NL-7N, Z415N-2NL-9N, Z415N-3NL-9N, Z415N-4NL-9N, Z415N-6NL-9N, Z415N-2IP-7N, Z415N-3IP-7N, Z415N-4IP-7N, Z415N-6IP-7N, Z415N-2IP-9N, Z415N-3IP-9N, Z415N-4IP-9N, Z415N-6IP-9N, Z415N-2IC-7N, Z415N-3IC-7N, Z415N-4IC-7N, Z415N-6IC-7N, Z415N-2IG-7N, Z415N-3IG-7N, Z415N-4IG-7N, Z415N-6IG-7N

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z415N – Body Assembly with “Type N” Strainer

A versatile finish-floor/shower drain built on Zurn’s Z415 cast-iron body and furnished with a “Type N” round, light-duty strainer featuring a deep flanged grate—ideal for clean aesthetics and dependable service in commercial interiors.

In technical terms, the Z415N combines a Dura-Coated cast-iron body (bottom outlet), a combination invertible membrane clamp and adjustable collar with seepage slots, and a Type N adjustable strainer with a deep flanged grate. In plain English: it’s a durable drain that ties neatly into your waterproofing, manages incidental moisture, and finishes flush with tile or resinous floors.

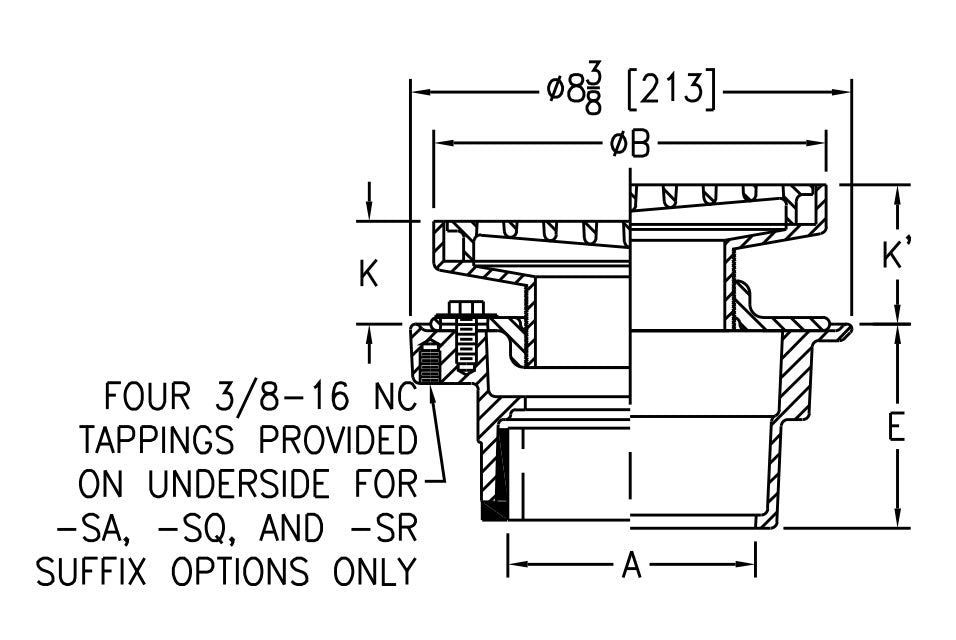

Zurn Z415N schematic showing Z415 cast-iron body, clamp collar with seepage slots, and Type N round adjustable strainer with deep flanged grate
Z415N – Dimensional & Component Schematic

Key Features

  • Dura-Coated cast-iron body with bottom outlet for long service life.
  • Invertible membrane clamp + adjustable collar with seepage slots for secure waterproofing and better moisture relief under finishes.
  • “Type N” strainer—round, light-duty, adjustable—with a deep flanged grate for clean looks and reliable flow.
  • Finish options commonly include Dura-Coated (Z), polished bronze (ZB), or polished nickel bronze (ZN) to match design intent.
  • Outlet families/sizes available to match typical risers (e.g., No-Hub, threaded IP, Neo-Loc; 2", 3", 4"—some series also 6").

Where Z415N Excels

A go-to choice for restrooms, locker/shower rooms, education & healthcare corridors, hospitality, and retail—anywhere a refined surface and straightforward maintenance are essential.

Benefits (Plain English)

  • Cleaner installs—clamp + seepage paths protect finishes and help reduce perimeter staining.
  • Flush finish—the adjustable Type N top dials in elevation with the final floor.
  • Easy upkeep—secured round grate supports routine cleaning without loose parts.
Zurn brand logo
Zurn – Finish-Floor Drainage

Specifications at a Glance

Body: Z415 cast iron, Dura-Coated; bottom outlet

Interface: Invertible clamp + adjustable collar with seepage slots

Top: Type N round, adjustable, light-duty strainer with deep flanged grate

Finishes: Z (Dura-Coated), ZB (polished bronze), ZN (polished nickel bronze)

Outlet options: Typical 2"–4" (No-Hub / IP threaded / Neo-Loc; verify on submittal)

Applications: Interior finish floors & showers in commercial spaces

Always confirm dimensions, outlet family/size, head size (e.g., 7" or 9" Type N), finish, and furnished options on the project submittal.

Installation Highlights

1) Rough-In & Elevation

Set the body to rough height; maintain floor slopes to the inlet and center the round top in the layout.

2) Waterproofing Tie-In

Clamp the membrane at the invertible collar. Keep seepage slots clear for under-tile moisture relief.

3) Adjust & Commission

Set the Type N strainer flush, water-test, and establish a cleaning cadence (hair/sand/debris) matched to site conditions.

Case Study: Retail Restroom Refresh

A national retailer upgraded older cores with Z415N assemblies to reduce staining and speed maintenance. The clamp + seepage design improved moisture management beneath large-format tile, while the adjustable Type N top made final elevation simple across varying tile thicknesses. After the first quarter, facilities reported fewer odor/staining tickets and faster cleanouts.

Frequently Asked Questions

What defines the “Type N” top?
Zurn’s Type N head is a round, adjustable, light-duty strainer with a deep flanged grate—a clean look with dependable flow for public interiors.
Which sizes are typical?
Common Type N head sizes are 7" and 9". Pair with outlet families (No-Hub/IP/Neo-Loc) and pipe sizes per your submittal.
How do seepage slots help?
They create weep paths that relieve incidental moisture under tile or coatings, helping reduce perimeter discoloration and preserving the finish system.
