Zurn Z453 - Deep Seal Trap Drain with “Type B” Strainer

Zurn Z453 - Deep Seal Trap Drain with “Type B” Strainer

Zurn Z453 - Deep Seal Trap Drain with “Type B” Strainer

$1,588.97


FREE SHIPPING
SKU ZN453B-2NH-5B

The Zurn Z453 offers reliable, long-lasting drainage for shower and wet floor applications where deep seal performance is required. Built around a uniform-diameter integral trap, it is designed to maintain trap seal depth and resist odors even under variable flow conditions.

Key Features

  • Deep-Seal Integrated Trap: A uniform-diameter, integral trap provides dependable odor control and ensures consistent trap seal performance.

  • Dura-Coated Cast Iron Body & Seepage Pan: Rugged construction resists corrosion, mechanical stress, and long-term exposure; the integrated seepage pan helps capture incidental water movement around strainers.

  • Type “B” Adjustable Polished Nickel-Bronze Strainer: A decorative, adjustable, light-duty strainer suited for finished floors, allowing alignment with surround tile while maintaining flow.

Downloads:

Product Codes: Z453-2NH-5B, Z453-3NH-5B, Z453-4NH-5B, Z453-2NH-6B, Z453-3NH-6B, Z453-4NH-6B, Z453-2NH-7B, Z453-3NH-7B, Z453-4NH-7B, ZB453-2NH-5B, ZB453-3NH-5B, ZB453-4NH-5B, ZB453-2NH-6B, ZB453-3NH-6B, ZB453-4NH-6B, ZB453-2NH-7B, ZB453-3NH-7B, ZB453-4NH-7B, ZN453-2NH-5B, ZN453-3NH-5B, ZN453-4NH-5B, ZN453-2NH-6B, ZN453-3NH-6B, ZN453-4NH-6B, ZN453-2NH-7B, ZN453-3NH-7B, ZN453-4NH-7B

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z453 – Deep Seal Trap Drain with “Type B” Strainer

A robust integral trap floor drain designed to improve odor control in finish-floor applications. The Z453 combines a deep water-seal trap, clamp-style waterproofing interface with seepage paths, and a secured “Type B” nickel-bronze strainer for a clean, durable finish.

In technical terms, the Z453 integrates a deep-seal trap into the drain body and uses a clamp collar to tie in membranes or coatings while providing seepage management. It’s a heavy-duty floor drain that blocks sewer gas, protects your finish, and stays easy to service.

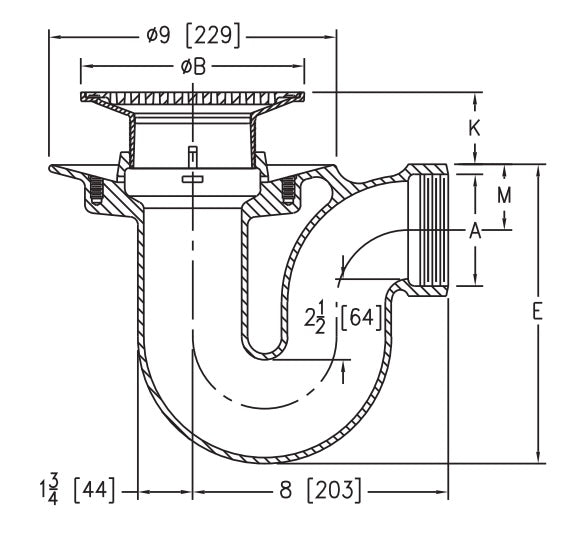

Zurn Z453 deep seal trap drain schematic showing integral trap, clamp collar with seepage paths, and Type B strainer
Z453 – Dimensional & Component Schematic

Key Features

  • Deep water-seal trap helps prevent sewer-gas migration in low-flow areas.
  • Clamp collar with seepage paths to integrate waterproofing and manage incidental moisture.
  • “Type B” strainer (nickel-bronze, secured; heel-safe patterns available—verify on submittal).
  • Dura-Coated cast-iron body for long-term durability in commercial interiors.
  • Outlet compatibility: furnished in common families (e.g., No-Hub / Neo-Loc / threaded—confirm sizes on project submittal).

Where Z453 Excels

Specify Z453 in restrooms, locker/shower rooms, education and healthcare corridors, and food service areas where odor control, clean finishes, and serviceability are essential.

Benefits

  • Fewer odor complaints due to the deeper trap seal.
  • Installer-friendly membrane tie-in at the clamp collar.
  • Neat appearance—secured strainer sits flush and resists tampering.
Zurn brand logo
Zurn – Integral Trap Floor Drainage

Specifications at a Glance

Type: Integral deep-seal trap floor drain

Body: Dura-Coated cast iron

Waterproofing: Clamp collar with seepage paths

Strainer: “Type B” nickel-bronze; secured/heel-safe options

Outlets: No-Hub / Neo-Loc / IP threaded (sizes per submittal)

Applications: Restrooms, showers, public corridors, education, food service

Always confirm dimensions, outlet type/size, strainer style, and furnished options on the project submittal.

Installation Highlights

1) Set Body & Slope

Place the drain to rough elevation; verify floor slopes direct water to the inlet and allow for trap access.

2) Clamp Membrane

Integrate waterproofing at the clamp collar; seepage paths help manage incidental moisture beneath tile or resinous finishes.

3) Finish & Commission

Install the Type B strainer, set flush, and water-test. Establish a regular cleaning cadence based on site conditions.

Case Study: Community Aquatic Center

An aquatic center experienced odor complaints around changing areas with intermittent rinse cycles. Replacing legacy drains with Zurn Z453 improved odor control through the deeper trap seal, while the clamp interface provided a more reliable tie-in to resinous flooring. After one season, facility staff reported fewer service tickets and a cleaner perimeter around drain locations.

Frequently Asked Questions

What does a “deep seal” trap do?
The deeper water column holds the trap seal longer between rinses or low-use periods, helping prevent sewer gas from entering occupied spaces.
Is the Z453 suitable for resinous floors?
Yes. The clamp collar provides a mechanical tie-in for membranes or coatings, and built-in seepage paths help manage incidental moisture beneath the finish.
Which outlet should I select?
Match your riser piping and local standards. No-Hub pairs with shielded couplings; Neo-Loc offers a mechanical seal; IP threaded suits threaded systems. Confirm the available sizes and pairings on the Z453 submittal.
