Zurn Z532 - 12" Wide Flange Floor Drain

Zurn Z532 - 12" Wide Flange Floor Drain

Zurn Z532 - 12" Wide Flange Floor Drain

$3,358.95


FREE SHIPPING
SKU Z532-2NH

The Zurn Z532 is a 12-inch diameter wide-flange floor drain tailored for latex deck applications and other finish systems requiring a durable, flush drainage solution. Its robust construction and versatile design features make it ideal for use where structural compatibility, maintenance ease, and aesthetic integration matter.

Key Features

  • Wide Flange & Latex Troweling Collar: Designed with a trowel flange plate that simplifies embedding into deck materials, providing secure integration with membrane systems.

  • Heavy-Duty Cast Iron Body & Top Options: Comes standard with a Dura-coated cast iron body, with optional tops available in cast iron, polished bronze, or polished nickel bronze to suit architectural finishes.

  • Slotted Grate & Suspended Sediment Bucket: Equipped with a slotted heavy-duty grate to allow effective flow, and a suspended bucket beneath the grate to trap debris and simplify cleaning.

Downloads:

Product Codes: Z532-2IC, Z532-3IC, Z532-4IC, Z532-2IG, Z532-3IG, Z532-4IG, Z532-2IP, Z532-3IP, Z532-4IP, Z532-2NH, Z532-3NH, Z532-4NH, Z532-2NL, Z532-3NL, Z532-4NL, ZB532-2IC, ZB532-3IC, ZB532-4IC, ZB532-2IG, ZB532-3IG, ZB532-4IG, ZB532-2IP, ZB532-3IP, ZB532-4IP, ZB532-2NH, ZB532-3NH, ZB532-4NH, ZB532-2NL, ZB532-3NL, ZB532-4NL, ZN532-2IC, ZN532-3IC, ZN532-4IC, ZN532-2IG, ZN532-3IG, ZN532-4IG, ZN532-2IP, ZN532-3IP, ZN532-4IP, ZN532-2NH, ZN532-3NH, ZN532-4NH, ZN532-2NL, ZN532-3NL, ZN532-4NL,

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z532 – 12" Wide Flange Floor Drain

A finish-floor drain with a 12" wide flange designed to simplify waterproofing tie-ins and provide a clean, durable surface finish. The Z532 pairs a rugged body with an adjustable top and service-friendly strainer options for long-term performance in commercial interiors.

In technical terms, the Z532 uses a wide-flange body and clamp interface (with seepage paths) to integrate membranes or resinous floors, while the adjustable top dials in final elevation. It’s a tough drain that makes waterproofing easier and keeps the finish looking sharp—ideal for restrooms, locker rooms, and public corridors.

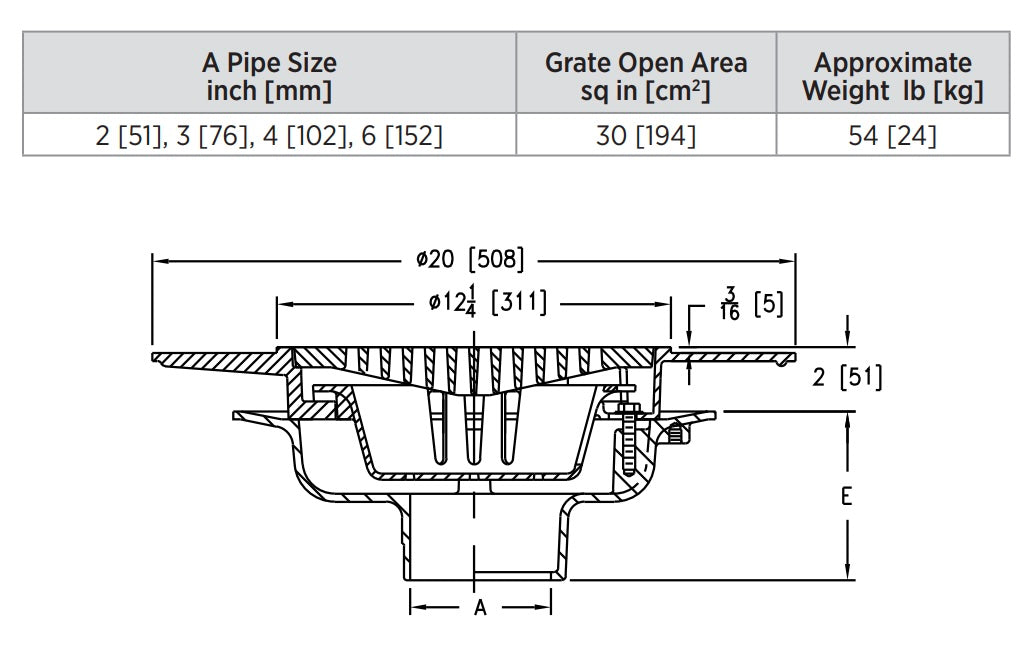

Zurn Z532 wide flange floor drain schematic showing body, 12-inch flange, clamp/adjustable collar and strainer assembly
Z532 – Dimensional & Component Schematic

Key Features

  • 12" wide flange provides generous surface for membrane or coating tie-in and cleaner transitions.
  • Adjustable collar/top to fine-tune height and keep the strainer flush with finished floors.
  • Seepage paths/slots at the clamp interface to manage incidental moisture beneath finishes.
  • Service-friendly strainer options (heel-safe, medium-duty) for routine cleanouts.
  • Outlet families: compatible with common No-Hub and Neo-Loc connections (verify sizes on submittal).
  • Public-space ready: top-secured/vandal-resistant hardware options where required.

Where Z532 Excels

Choose Z532 for commercial restrooms, locker rooms, education facilities, and retail/public corridors that demand reliable drainage and a tidy finish. The wide flange simplifies waterproofing and helps reduce callbacks from edge cracking or membrane pull-back.

Benefits at a Glance

  • Easier waterproofing with extra flange real estate for installers.
  • Cleaner final look—adjustable top aligns to tile/resinous floors.
  • Simpler maintenance thanks to accessible, heel-safe strainers.
Zurn brand logo
Zurn – Finish Floor Drainage

Specifications at a Glance

Type: 12" wide-flange finish floor drain

Body: Heavy-duty cast construction (Dura-Coated cast iron family)

Top: Adjustable collar/top for finished-floor alignment

Waterproofing: Clamp interface with seepage paths

Strainer: Heel-safe, serviceable (medium-duty)

Outlets: No-Hub / Neo-Loc (sizes per submittal)

Always confirm dimensions, outlet type/size, strainer style, and furnished options on the project submittal.

Installation Highlights

1) Set & Support

Place the drain body at rough elevation; ensure the 12" flange is clean and level for a reliable membrane tie-in.

2) Membrane Tie-In

Integrate the waterproofing with the clamp; seepage slots help manage incidental moisture beneath the finish.

3) Final Adjust

Use the adjustable collar to set the top flush to tile/epoxy; secure the heel-safe strainer and water-test the assembly.

Case Study: High-School Locker Room Refresh

A district modernized locker rooms with resinous floors over a moisture barrier. Specifying Zurn Z532 gave installers a wider flange for the membrane tie-in, reducing edge bubbling and callbacks. The adjustable top made it easy to hit finished height, and custodial staff reported quicker cleanouts through the heel-safe strainer.

Frequently Asked Questions

What does “wide flange” do for me?
The 12" flange offers more surface area to bond membranes or coatings, helping create a cleaner, more forgiving transition at the drain edge.
Is the top adjustable after flooring?
Yes. The adjustable collar/top allows fine elevation tuning to keep the strainer flush with tile or resinous finishes—verify range on the submittal.
Which outlet should I specify?
Match your riser piping and local standards. No-Hub suits cast-iron couplings; Neo-Loc provides a mechanical seal. Confirm available sizes on the Z532 submittal.
