Diamond Grid Stabilization Panel

Diamond Grid Stabilization Panel

Diamond Grid Stabilization Panel

$3,991.56


FREE SHIPPING
SKU DG-598SF

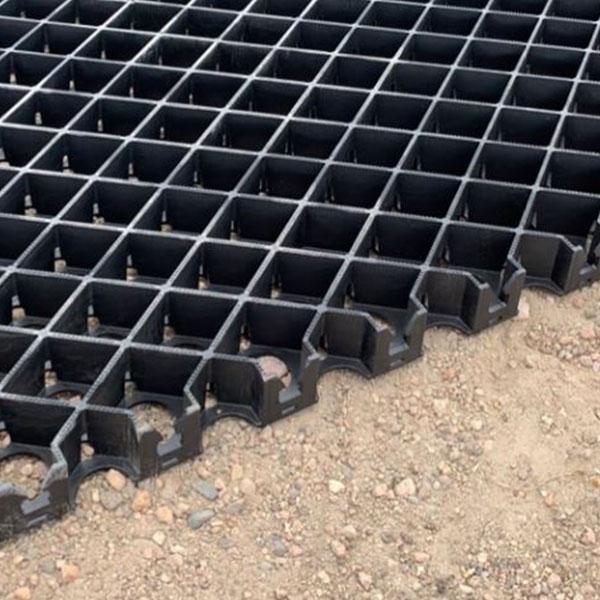

Diamond Grid Used extensively for ground stabilization all types of driveways, hardstands and shed flooring. These interlocking panels are proven to withstand heavy loads under constant use in mining, agriculture, and commercial construction.
The premier cost-effective solution for erosion control, soil and turf stabilization, and roadway construction. It's unique in that its been engineered to handle extreme weights and is 96% permeable.
Diamond Grid is also an alternative to traditional concreting, with a comparable load-bearing capacity at 60% less cost.

CONTACT US>  if you require a written quote or are needing to meet a particular project Spec.

PRODUCT SPECS

  • Material: 100% recycled, UV treated Polypropylene

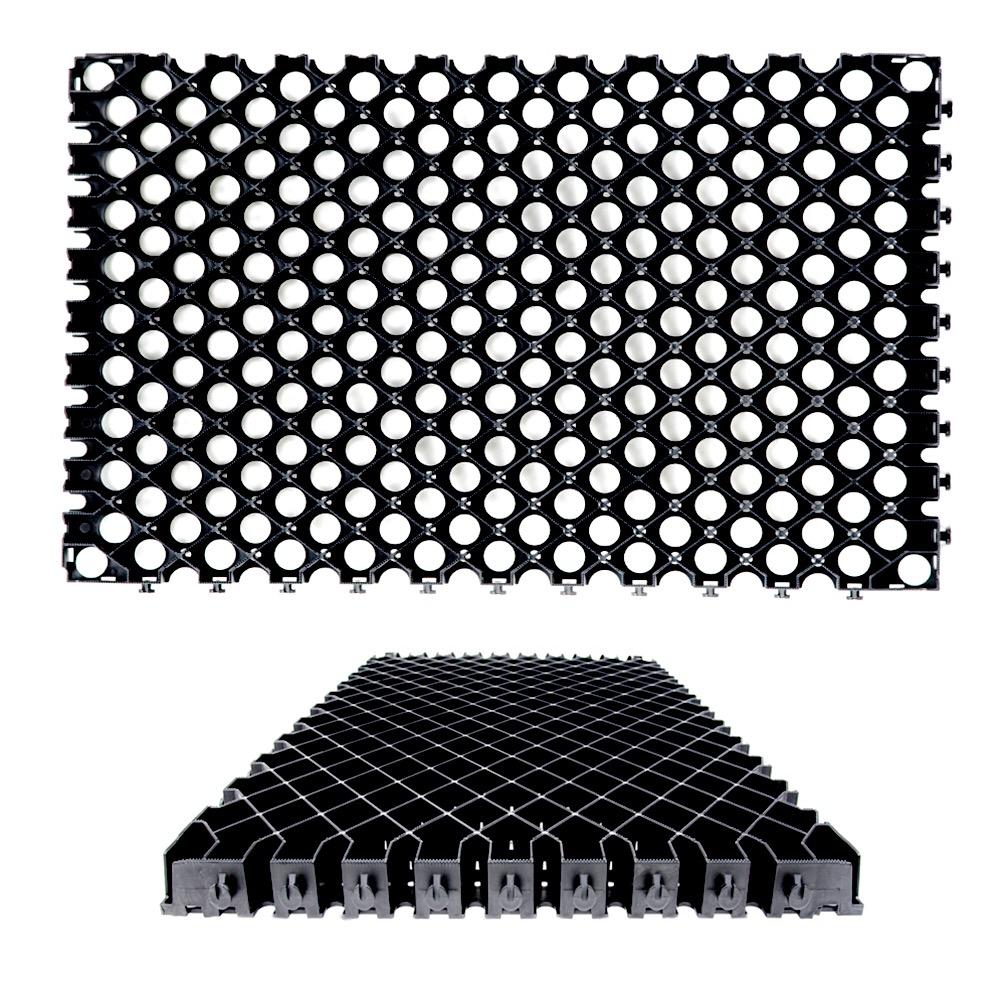

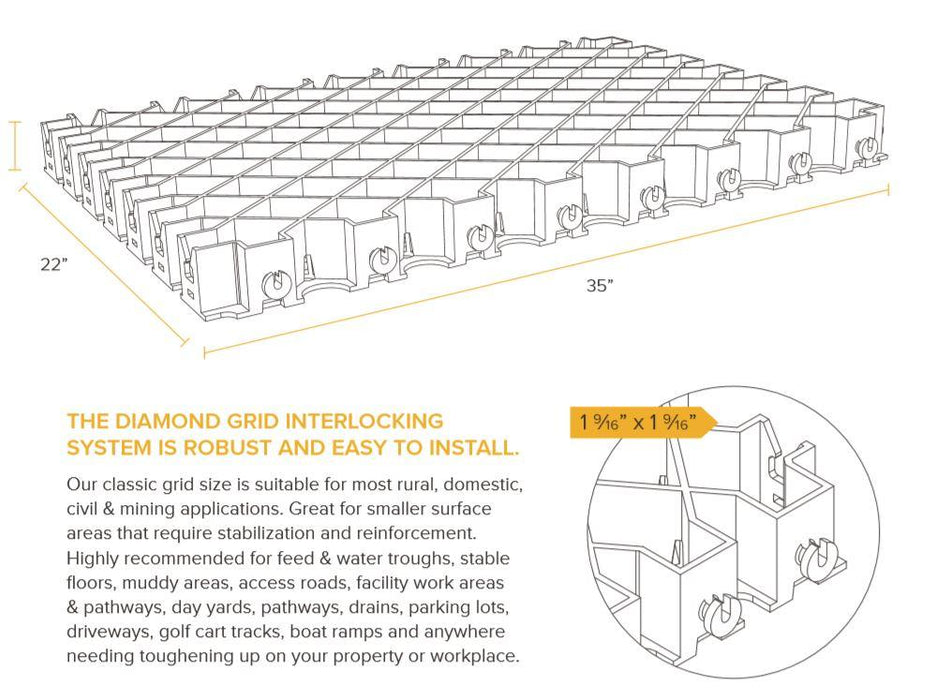

  • Panel Size : Full Size Standard Grid Panels: 35" x 22" - 5.34 sq/ft
    Sample Grid Panels: 10 inch by 8 inch partial panel

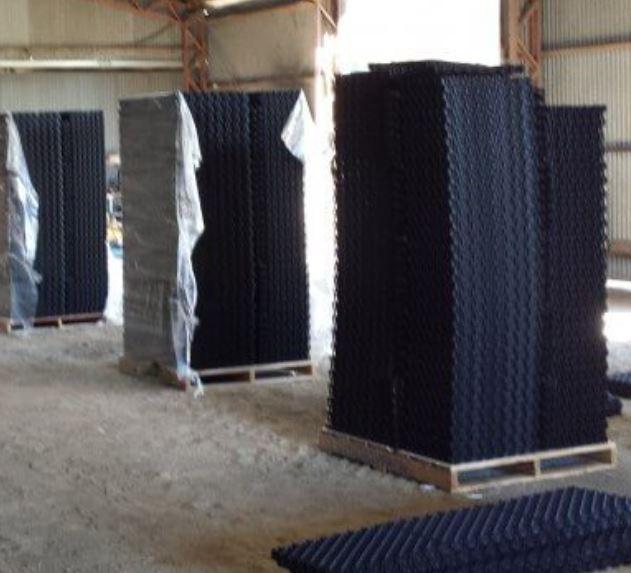

  • Pallet Size : Full Pallet: 112 Standard Panels - 598 sq/ft
  • Free Shipping
  • Need a written quote? Request Online
  • Volume Pricing Available on Orders Over $10,000
  • Questions?  Call (800) 604-5537

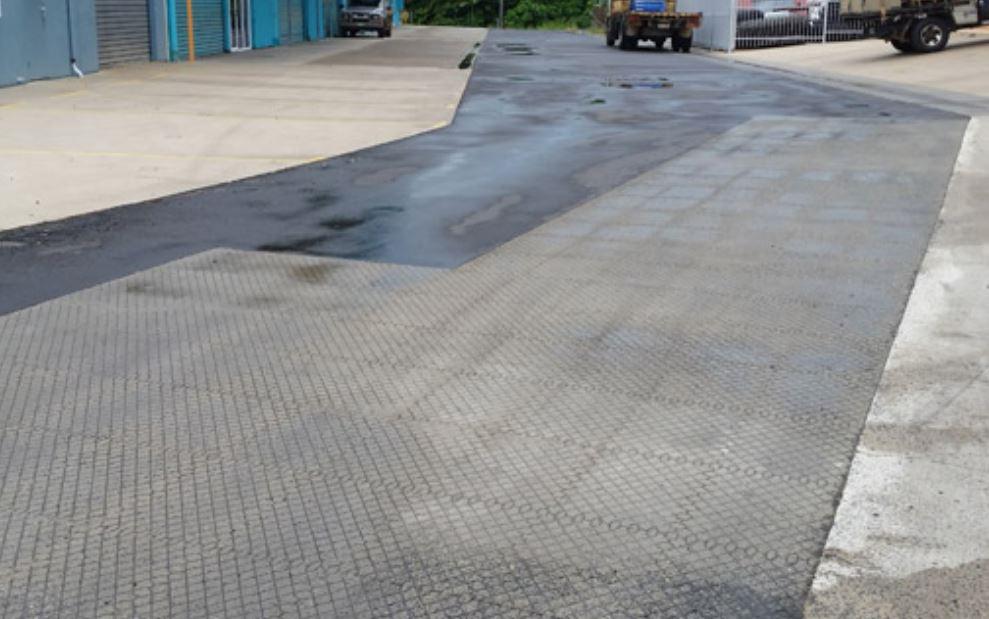

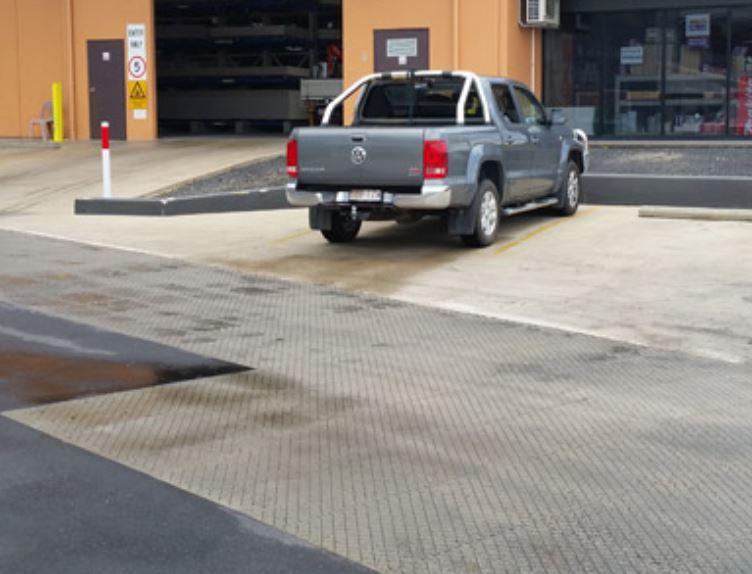

DIAMOND GRID GROUND
STABILIZATION IN ACTION

HIGHLIGHTS

Diamond Grid Measurements and Attributes at a glance

APPLICATIONS

Diamond Grid is currently used in the following applications:

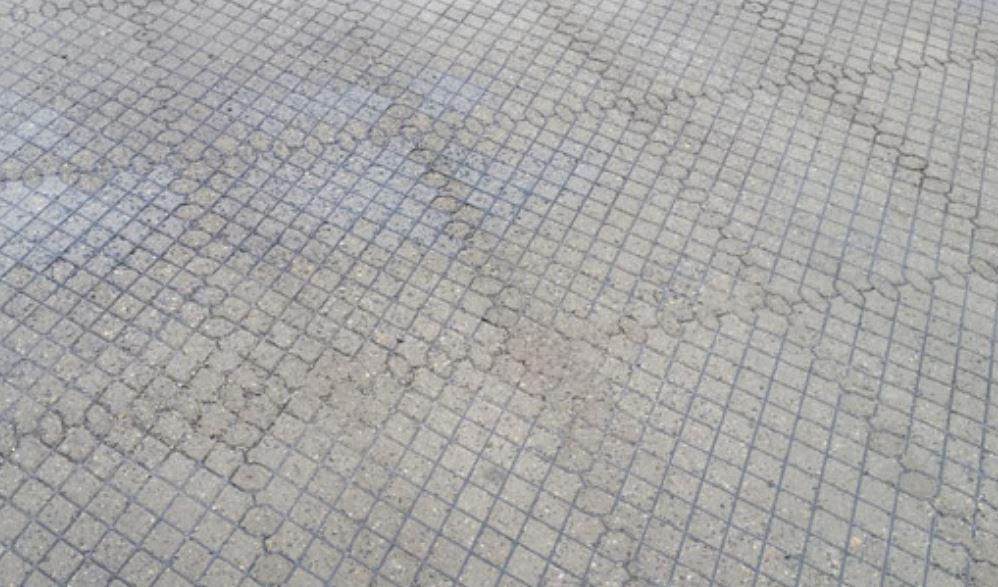

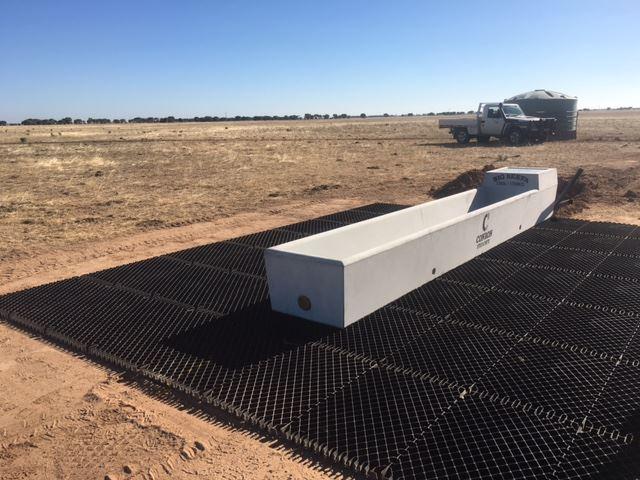

Shed Flooring, Feed & Water Troughs, Pathways, Camp Paths, Mine Access Roads, Parking Lots, Golf Courses, Driveways, Stable Floors, Bike Tracks, Concrete Car Ports, Creek Crossings, Cattle Yards, Fire Trails, Haul Shelters, Haul Roads, Hardstands, Day Yards, Boat Ramps, Bitumen Reinforcements, Airstrips, and Arenas.

ROAD PROJECT BEFORE & AFTER

INSTALL VIDEO

INSTALLATION &
MAINTENANCE

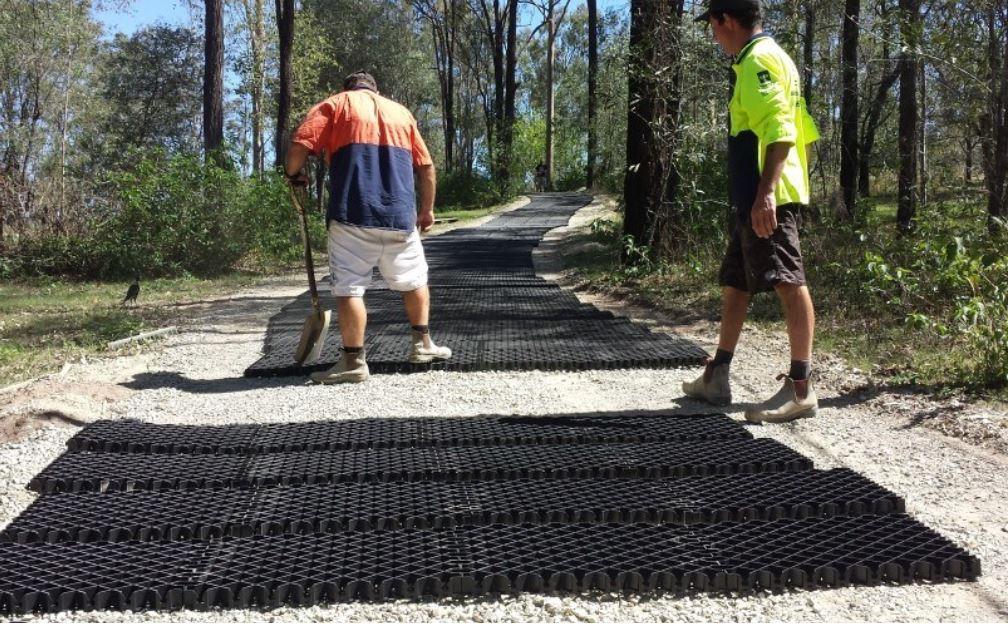

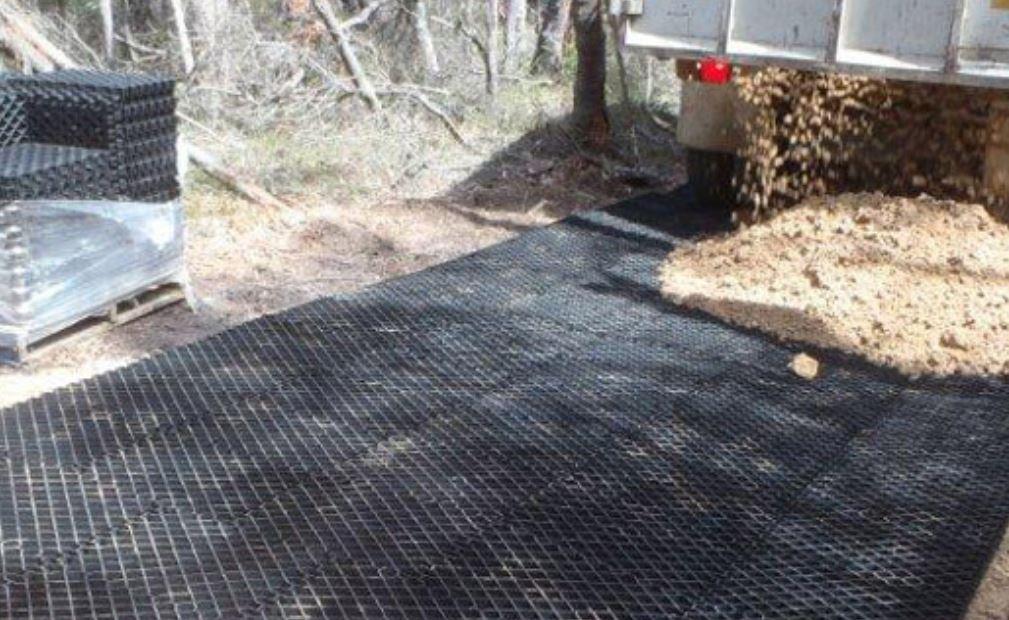

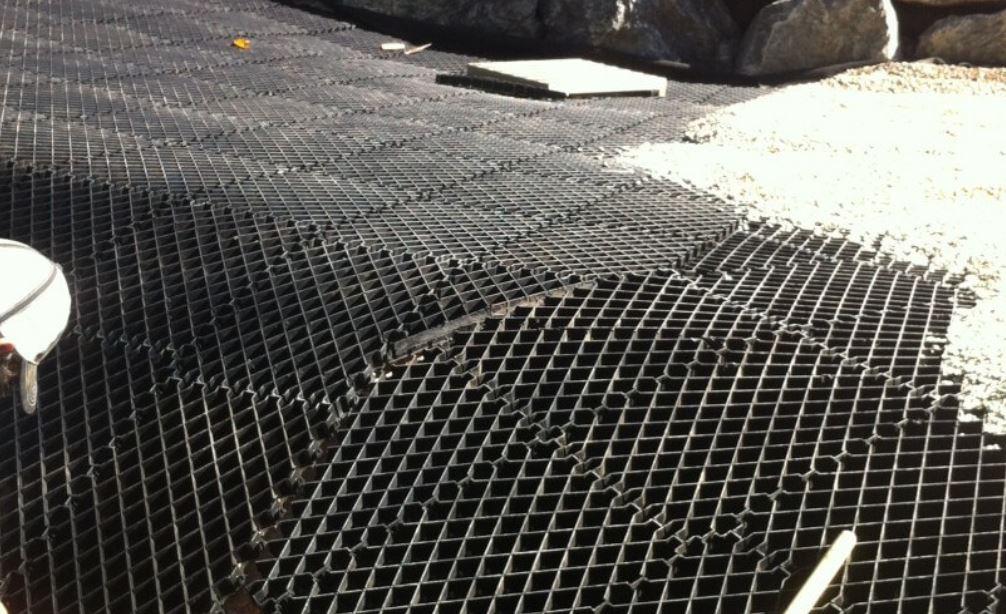

Installation is as easy as grading the area, placing the grid down and then filling in/over the Diamond Grid with your substrate

Diamond Grid Product Brochure Download
Diamond Grid Installation Guide Download

SHIPPING

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

Orders ship from the Illinois warehouse where a full stock product is maintained. Most orders ship same day (M-F) if order is placed before 11:00 AM EST.

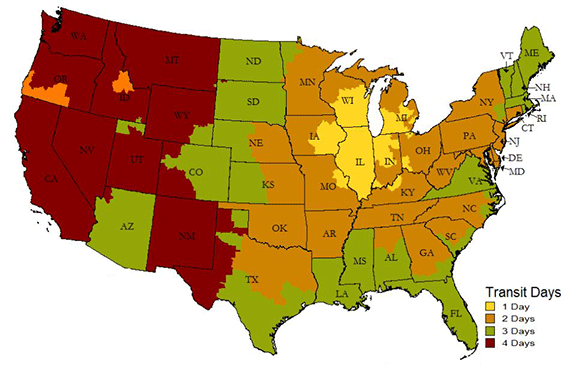

Transit times displayed in the map are listed in business days, are approximate and are specific to the Diamond Grid Product Line. The day that the order is shipped is not counted as a transit day. Most Diamond Grid orders ship via LTL freight. For expedited shipping rates please call: (800) 604-5537

The transit times displayed on the map are for our free shipping option.

SHIPPING NATIONWIDE

*Contiguous 48 States Only
