Truncated Domes ADA Access Tile - 2' x 4' Mat - Surface Mount

$223.67


FREE SHIPPING
SKU ACC-S-2448-YW

Truncated Domes are a commonly used underfoot detectable warning surface to alert visually impaired pedestrians of their proximity to potentially hazardous walking transitions. When using a White Cane the person has both an audible and tactile sense of the obstacles around. Variable surface ADA tiles are commonly placed in and near:

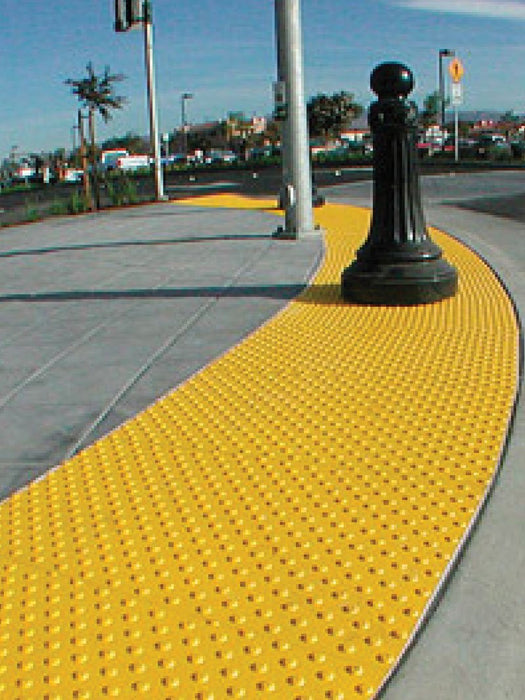

  • Sidewalk curb ramps
  • Crosswalks
  • Parking areas

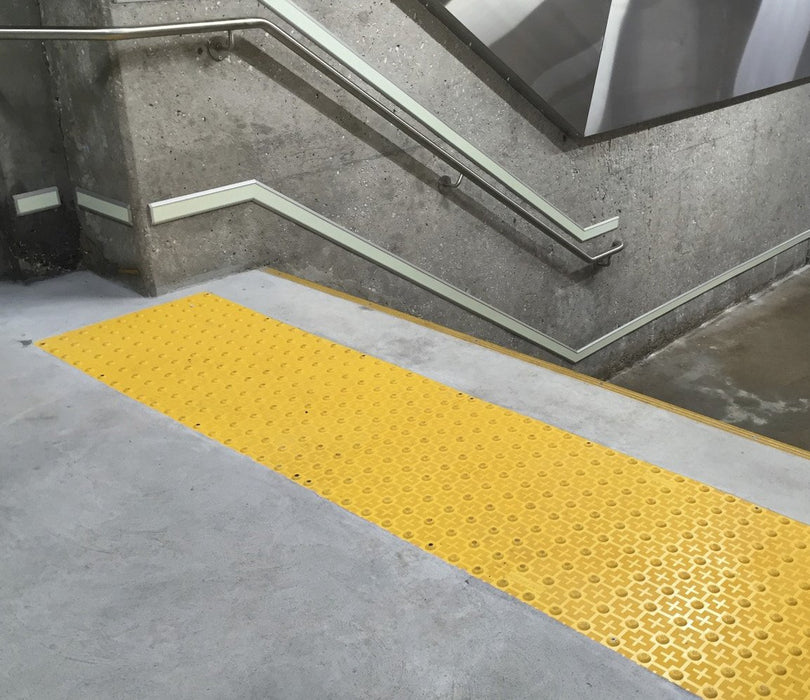

  • Top of stair landings
  • Transit platform edge dropoffs
  • Wheelchair ramps
  • Escalator approaches

All of Access Tile Truncated Domes are certified ADA compliant.

The Surface Mount tiles can be installed at any time and do not need to be placed in wet-set concrete. These units are considered a "Retrofit" on existing pathways.  Installation requires drilling of anchors and application of Tactile Seal & Bond adhesive on the entire back along with an ~1/4" bead around edges of each tile.

*One Tube of Adhesive is included per tile, however, this is typically used up when bonding the tile to the ground substrate, and additional Tactile Bond & Seal are typically required for sealing of the tile perimeter.

RULE OF THUMB: ~1 additional tube consumed for every two 2'x4' size tiles.

For details on product availability and bulk pricing call us:

(800) 604-5337

Minimum Order = 5 Tiles

PRODUCT SPECS

  • Model: ACC-S-2448
  • Size: 2' X 4' per tile
  • Free Shipping
  • Need a written quote?
        Request Online
  • Volume Pricing Available on Large Orders
  • Questions?
    Call (800) 604-5537

SURFACE MOUNTED  -  HIGHLIGHTS

  • Tile geometry allows for consistent dome spacing between adjoining tiles.
  • High density, diamond grip™ pyramid micro texture designed for exceptional slip resistance in wet and dry conditions.
  • Tamper-proof, countersunk, stainless-steel Axius® fastener set flush with truncated dome surface
  • Audible detectability technology engineered for sound amplification.
  • Textured surface to allow optimum adhesive bond.
  • Maximized strength load transfer design, bosses, located directly under domes transfer loads directly to substrate.
  • Adhesive location identified on the reverse side of tile for easy error-free installation.
  • Tiles are Slip resistant, corrosion resistant, and abrasion resistant

Full Installation Guide

Download

Technical Spec Sheet

Download

Submittal Package

Download

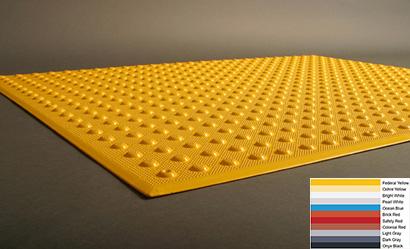

BRIGHT COLORS FOR MAX VISIBILITY

Yellow and other bright colors like orange and red reflect light making them easier for the eye to see even with severe visual impairment.  This is why most of the ADA products sold are typically bright colors such as:

Federal Yellow -YW.

The following color options are also available for the Surface Attached Tiles. Call us if you cannot find the color you're looking for.

Ochre Yellow - OCR
Brick Red - RD
Colonial Red - COL
Ocean Blue - BL
Bright White - WH
Light Gray - LG
Dark Gray - DG
Onyx Black - BK

INSTALLATION &
MAINTENANCE GUIDE

Full step by step installation and maintenance guides for our Cast In Place and Surface Mount Access Tiles can be found on our Installation and Maintenance Page.

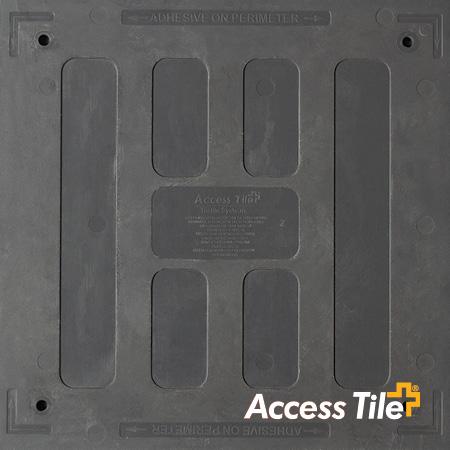

Adhesion location identified on the reverse side of the tile for easy, error-free installation

Installation Instructions for Access Tile's ADA Compliant Tiles - FULL GUIDE HERE

SHIPPING

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions.

Shipping estimates shown on the map pertain to this specific product only. Orders typically om 3-4 business days if the order is placed before 12:00pm noon EST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

FREQUENTLY ASKED QUESTIONS

Questions about our Access Tile products?  Visit our FAQ section here.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Chad Kempton
Truncated Domes

This is a good product for temporary cross walks.
