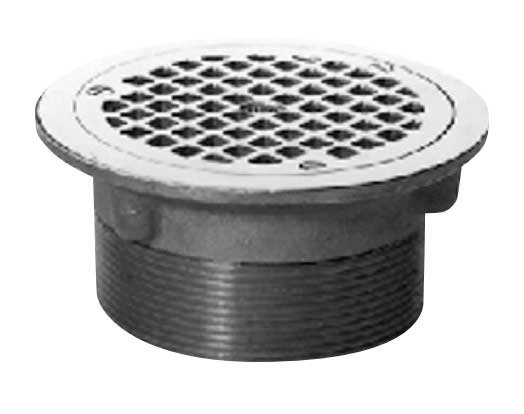

Zurn Z400H - “Type H” Round Strainer with Clamp Device

Zurn Z400H - “Type H” Round Strainer with Clamp Device

Zurn Z400H - “Type H” Round Strainer with Clamp Device

$2,324.96


FREE SHIPPING
SKU ZN400-6H

The Zurn Z400H is a finish-floor drain engineered to combine aesthetic subtlety with dependable performance. Ideal for interiors such as bathrooms, showers, spas, and executive areas, it ensures effective water control while maintaining a sleek, integrated look with your flooring.

Key Features

  • Flush, Low-Profile Grate: Designed to sit nearly level with finished floor surfaces—such as tile, stone, or premium flooring materials—minimizing visual disruption.

  • Solid, Moisture-Resistant Construction: Made to withstand regular exposure to water, foot traffic, and daily use in wet areas, built with materials that resist corrosion and wear.

  • Waterproofing Integration & Debris Prevention: Features designed to secure the waterproofing membrane and a grate or strainer system to block debris, helping maintain clear flow and reduce clogging.

Downloads:

Product Codes: Z400H-2IH, Z400H-3IH, Z400H-4IH, Z400H-2IG, Z400H-3IG, Z400H-4IG, Z400H-2IP, Z400H-3IP, Z400H-4IP, Z400H-2NH, Z400H-3NH, Z400H-4NH, Z400H-2NL, Z400H-3NL, Z400H-4NL, ZB400H-2IH, ZB400H-3IH, ZB400H-4IH, ZB400H-2IG, ZB400H-3IG, ZB400H-4IG, ZB400H-2IP, ZB400H-3IP, ZB400H-4IP, ZB400H-2NH, ZB400H-3NH, ZB400H-4NH, ZB400H-2NL, ZB400H-3NL, ZB400H-4NL, ZN400H-2IH, ZN400H-3IH, ZN400H-4IH, ZN400H-2IG, ZN400H-3IG, ZN400H-4IG, ZN400H-2IP, ZN400H-3IP, ZN400H-4IP, ZN400H-2NH, ZN400H-3NH, ZN400H-4NH, ZN400H-2NL, ZN400H-3NL, ZN400H-4NL,

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z400H – “Type H” Round Hinged Strainer

The Z400H is a round, adjustable, light-duty strainer head with a hinged, secured grate—engineered for finish-floor and shower applications and designed to pair with Zurn Z415 drain bodies.

In technical terms, Z400H is furnished as a “Type H” round head with a secured hinged grate and an adjustable shank. Standard tops are commonly available in polished bronze (ZB) or polished nickel bronze (ZN). In plain English: it’s the service-friendly round top that opens for fast cleaning, stays put between service visits, and sets flush with tile, terrazzo, or resinous floors.

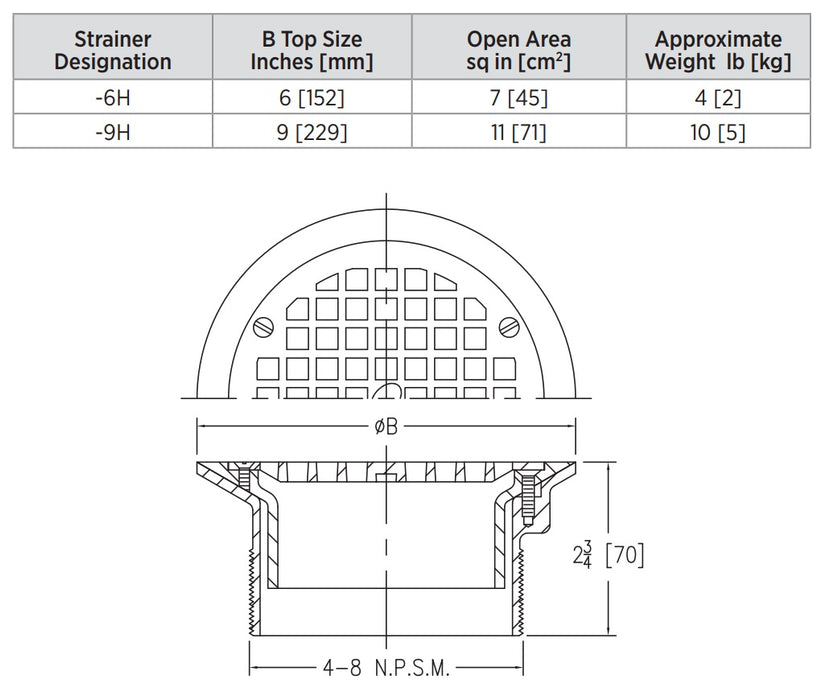

Zurn Z400H Type H round hinged strainer—dimensional schematic
Z400H – Dimensional & Component Schematic

Key Features

  • Type H round head — adjustable, light-duty top with a secured hinged grate for quick access.
  • Clean aesthetics — round profile centers easily and yields a crisp perimeter in patterned floors.
  • Finish options — ZB polished bronze or ZN polished nickel bronze to coordinate with surrounding trim.
  • Pairs with Z415 bodies — mates to Zurn’s Z415 floor/shower drain body for a complete assembly.
  • Maintenance-ready — hinged design speeds routine cleanouts and helps prevent lost grates.

Where Z400H Excels

Ideal for showers, locker rooms, hospitality restrooms, and amenity spaces where frequent cleaning is expected. The hinged, secured grate simplifies service while the adjustable shank dials in a flush finish for smooth traffic and easy mopping.

Benefits (Plain English)

  • Faster upkeep — hinge-open access reduces cleanout time and labor.
  • Neat transitions — round frame aligns cleanly with tile and terrazzo layouts.
  • Spec-friendly — finish options and secured hardware support facility standards.
Zurn brand logo
Zurn – Finish-Floor Drainage

Specifications at a Glance

Head Type: Type H round, adjustable, light-duty

Grate: Secured hinged top for quick access

Finishes: ZB polished bronze / ZN polished nickel bronze

Compatibility: Fits Z415 floor & shower drain bodies

Use Cases: Interior finish floors & showers

Options: Top-secured or vandal-resistant variants per project spec (verify availability)

Always confirm head diameter, finish, furnished options, and duty rating on the project submittal.

Installation Highlights

1) Head & Finish

Select the ZB or ZN top to match adjacent trim and hardware.

2) Alignment & Elevation

Set the Z415 body; adjust the Z400H top flush to the finished surface for a clean perimeter and easy cleaning.

3) Service & Security

Use the hinged grate for routine debris removal; specify secured/vandal-resistant options where required.

Case Study: Hotel Spa Showers

A boutique hotel spa standardized on Z400H heads for steam and shower rooms. The hinged, secured grate sped nightly cleanouts, while the round profile delivered flush transitions with mosaics. Outcomes included shorter maintenance cycles and cleaner drain perimeters during peak seasons.

Frequently Asked Questions

What defines a “Type H” strainer?
Type H is a round, adjustable, light-duty head furnished with a secured hinged grate to simplify access and cleaning.
Which finishes are typical?
Tops are commonly offered in polished bronze (ZB) and polished nickel bronze (ZN). Confirm height and open-area values for your selected head size on the submittal.
Does Z400H fit my Z415 drain body?
Yes—Z400-series heads are designed for use with Z415 floor/shower drain bodies. Verify outlet family and accessory requirements in your project documents.
