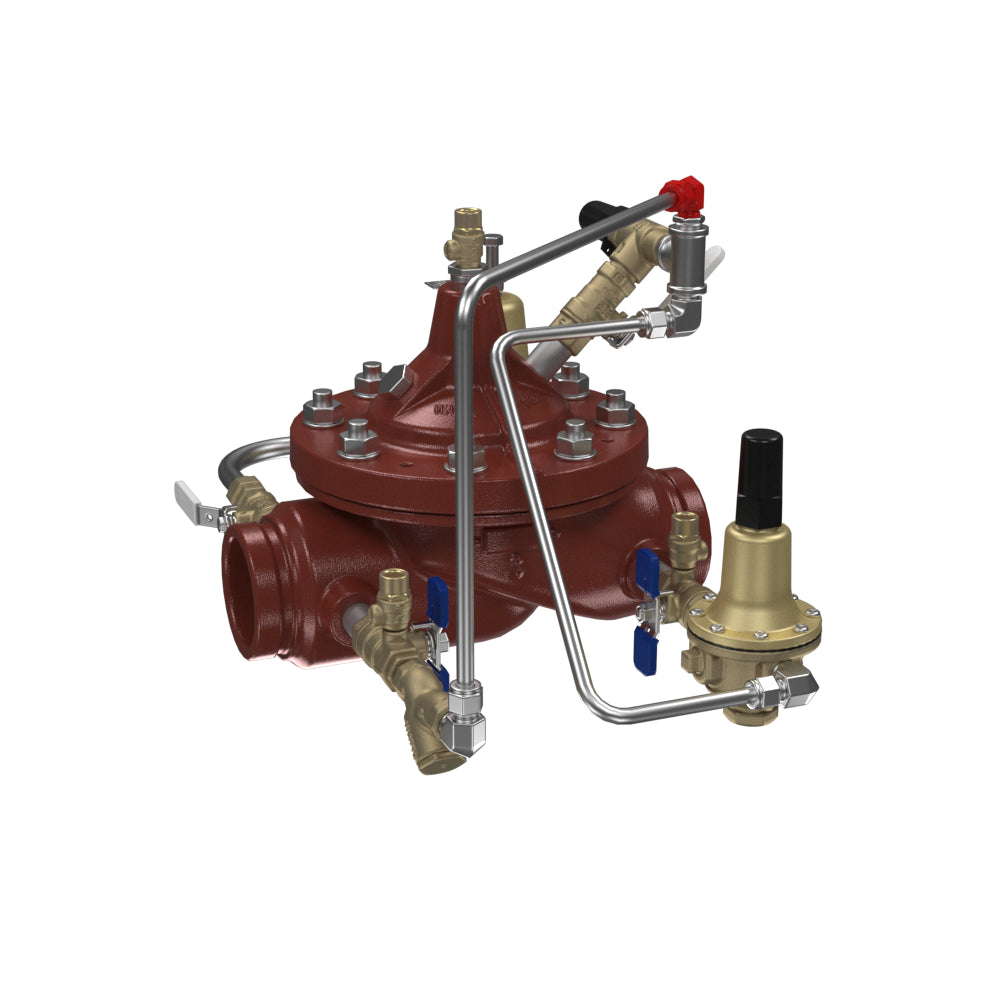

This 1 1/2 inch ACV is armed with ArmorTek^®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits the possibility of damaging high inlet pressure from passing through the valve to downstream piping. This Mustang valve style has a globe body pattern with grooved end connections, pressure range of 30-300 psi, configured with inlet and outlet gauge ports, Buna elastomers, position indicator, and stainless steel tubing. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve with 50-145 psi adjustment range.

• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
• Globe body pattern with grooved end connections
• Low-flow bypass range 50-145 psi
• Inlet/outlet gauge ports, gauge not included
• Includes position indicator
• SS tubing

• Submittal Package - Automatic Control Valve LFM115-74
