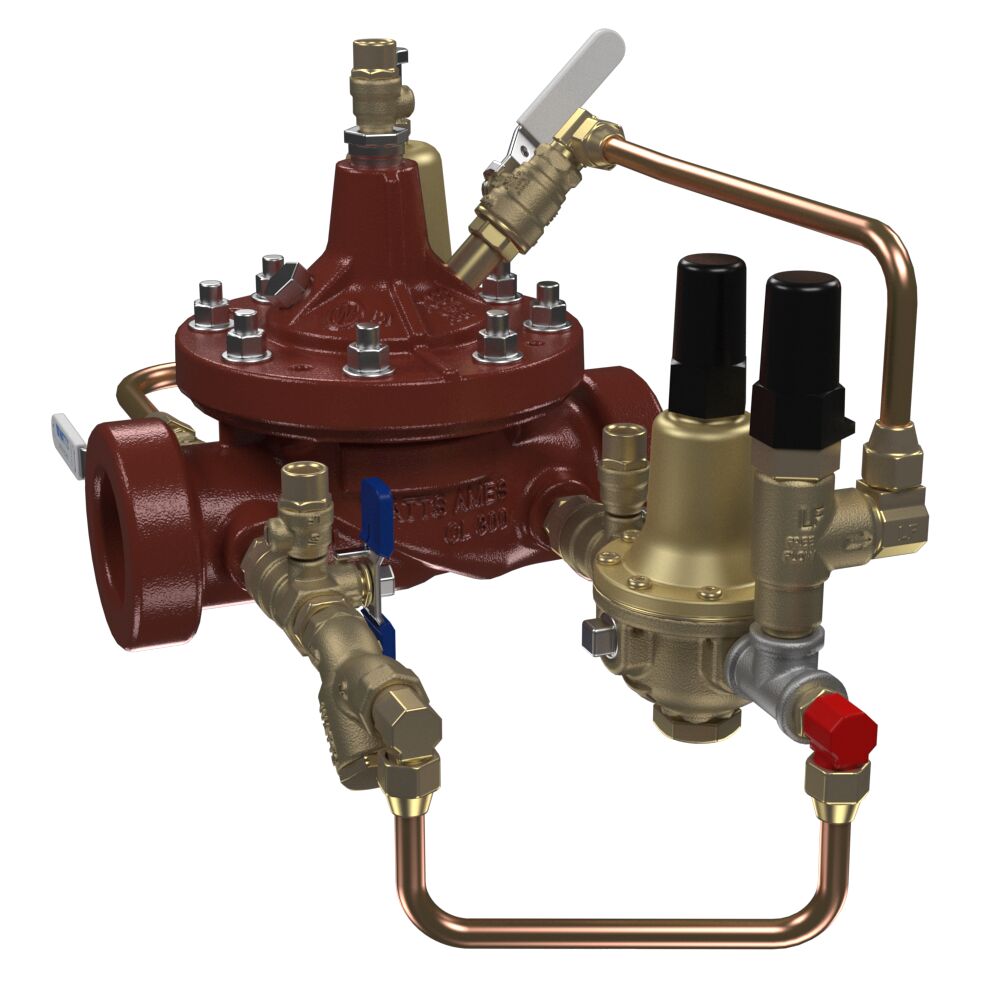

Watts LFM115-74 THD 25-75 P/G P/G 2 - Part of the LFM115-74 Series
$7,725.90
FREE SHIPPING
SKU 1GE00128
This Watts 2 inch, globe, Threaded, ArmorTek epoxy coated Pressure Reducing Valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve. 25-75PSI adjustment range, with Position Indicator.
Features- Pressure Reducing Valve (30-300psi)
- 25 - 75psi Low Flow By-Pass Range
- I/O Gauges & Position Indicator
- ArmorTek Coating
| Specifications | |
|---|---|
| Adjustable Reduced Pressure Range | 30-300 psi |
| Adjustable Reduced Pressure Range-BAR | 2.1-20.7 bar |
| ArmorTek Technology | Yes |
| Body Material | Ductile Iron |
| Brand | Watts |
| Coating | Bonded Epoxy |
| EAN | 098268634891 |
| Inlet Connection Size | 2 IN |
| Inlet Connection Type | Female Threaded |
| Lead Free | Yes |
| Maximum Operating Temperature-Fahrenheit | 225 |
| Maximum Working Pressure-PSI | 400 |
| Outlet Connection Size | 2 IN |
| Outlet Connection Type | Female Threaded |
| Part Number | 1GE00128 |
| Pilot Control System Fitting Material | Brass |
| Pilot Control System Tubing Material | Copper |
| Series | LFM115-74 |
| Trim Material | 316 Stainless Steel |
| Valve Style | Mustang |
| Warranty Name | Standard Watts Warranty |
