Watts LFMMV-HTK 3/4 - Part of the LFMMV Series
FREE SHIPPING

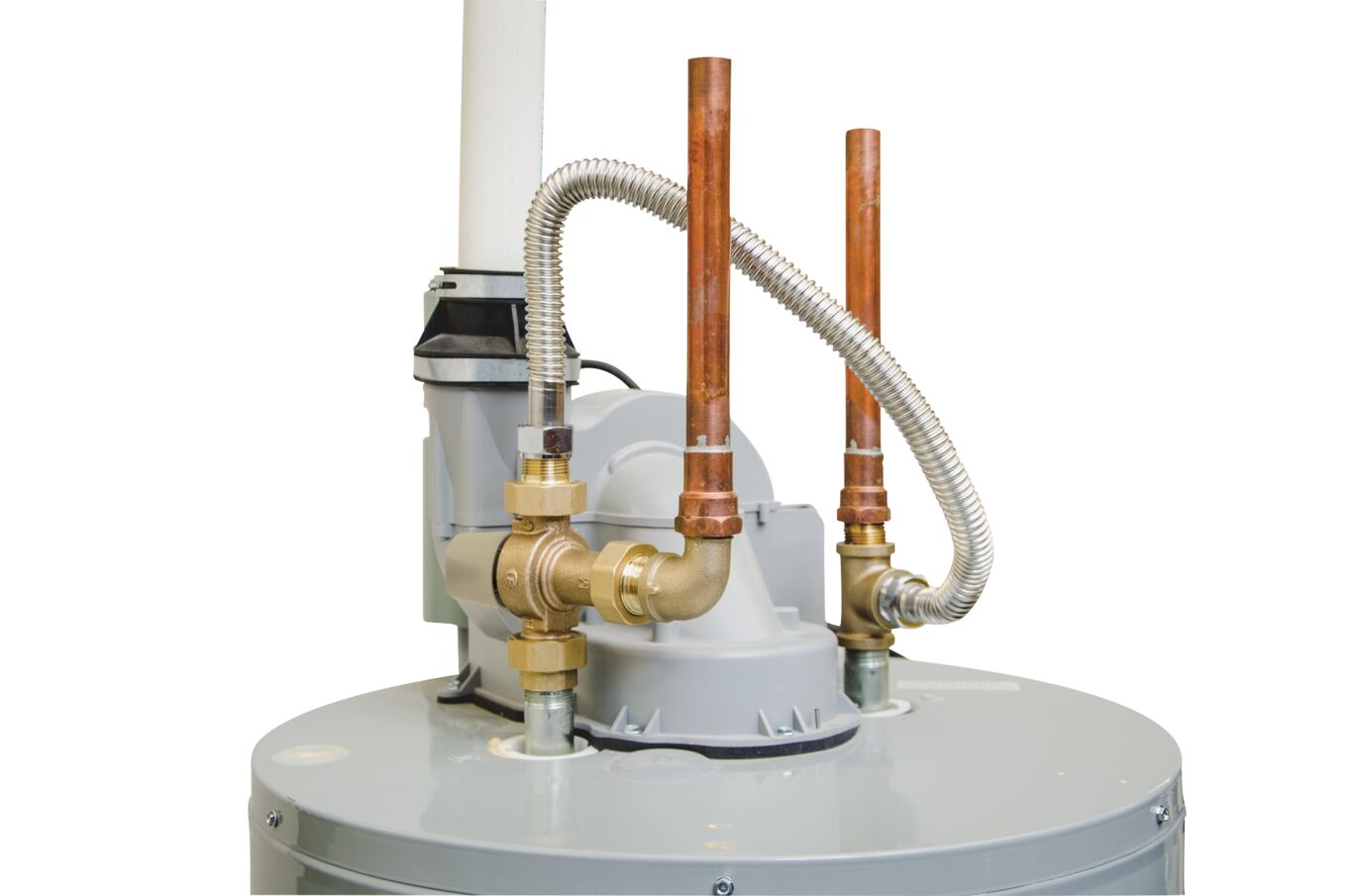

This 3/4 inch lead free thermostatic hot water mixing valve kit is designed for residential, commercial or institutional environments for supplying tempered water. This kit contains a 3/4 inch mixing valve, Model LLMMV, stainless steel hose, a tee and an elbow. The thermostatic mixing valve consists of a lead free brass body, threaded union end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The double throttling design controls both hot and cold water supply to the mixed outlet. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar) and maximum temperature rating is 200 degrees F (93 degrees C).
Features- Lead free brass construction
- Thermal actuation technology for precise temperature control
- Includes a stainless steel hose, tee and elbow
- ASSE 1070, ASSE 1017 and UPC listed
| Specifications | |
|---|---|
| Body Finish | Rough Bronze |
| Body Material | Lead Free Copper Silicon Alloy |
| Brand | Watts |
| Buy American Act Compliant | YES |
| Capacity | 20 GPM at 125 PSI |
| Cold Inlet Temperature Range | 39 to 80 degree F |
| Cold Water Bypass | No |
| Cold Water Inlet Connection Size | 3/4 IN |
| EAN | 098268086263 |
| Factory Set Temperature-Fahrenheit | 105 |
| Flow Rate | 0.5 to 13 GPM |
| Hot Inlet Temperature Range | 120 to 180 degree F |
| Hot Water Inlet Connection Size | 3/4 IN |
| Lead Free | YES |
| Maximum Pressure Differential | 25 percent |
| Maximum Working Pressure-PSI | 125 |
| Minimum Differential Temperature-Fahrenheit | 5 |
| Minimum Static Pressure-PSI | 30 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Size-Metric | 19 MM |
| Part Number | 0559178 |
| Series | LFMMV |
| Temperature Adjustment Range | 80 to 120 degree F |
| Wi-Fi Enabled | No |
