Chute Wear Liner

Name: Chute Wear Liner
Brand: Mainline Materials - V
SKU: MM-HDPE-18-40-100
Price: 320.14 USD
Availability: InStock

$320.14

FREE SHIPPING

SKU MM-HDPE-18-40-100

Material Width & Thickness

Quantity

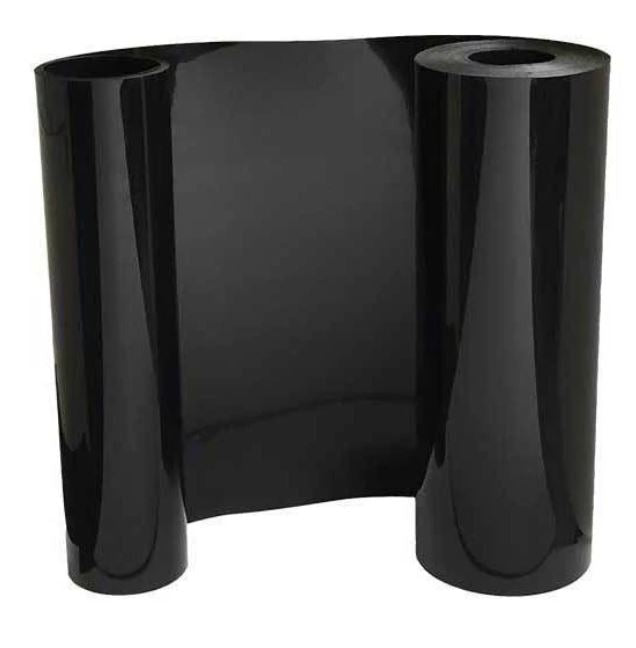

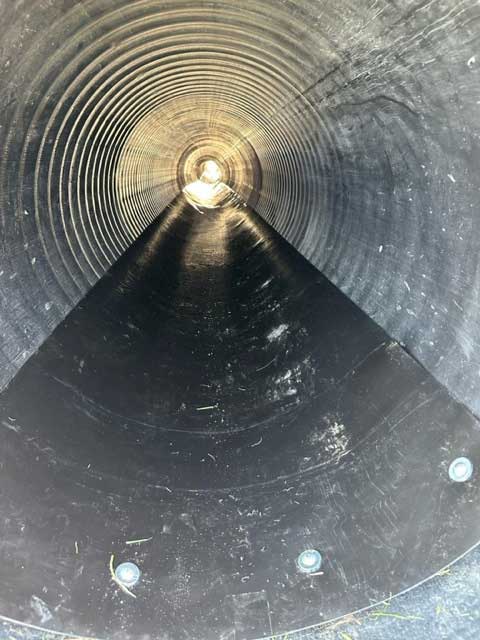

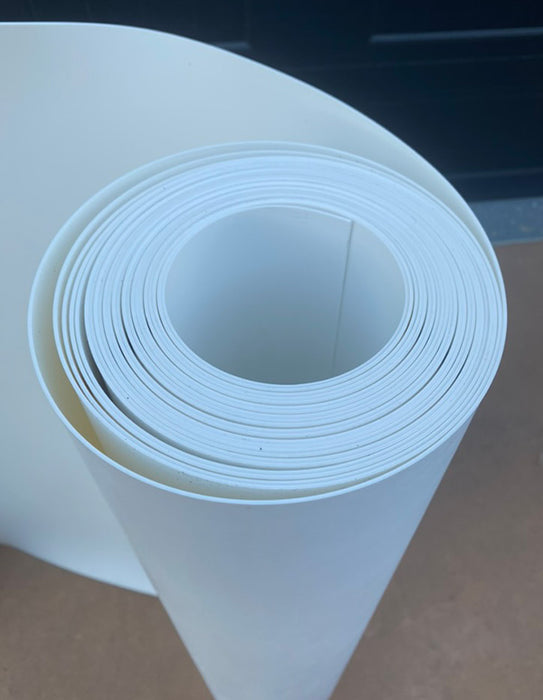

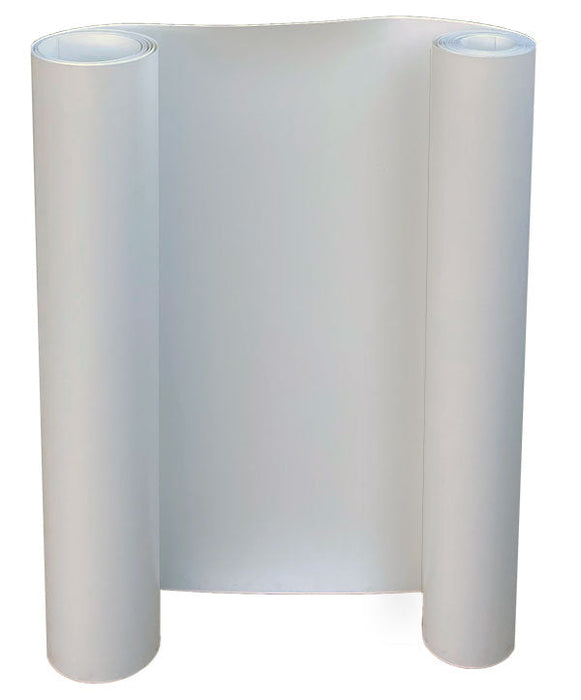

Our Chute Wear Liner is a HDPE plastic that is used to line chutes due to it being smooth and durable. It is UV resistant, and can be used in cold and hot climates. The seems can be easily connected to form a longer continuous liner if needed.

Our Chute Wear Liner is also waterproof and can be used in applications which subject the liner to continual exposure to liquids. It is available in widths from 18" to 60" and a number of thicknesses. Our chute liner is made in America.

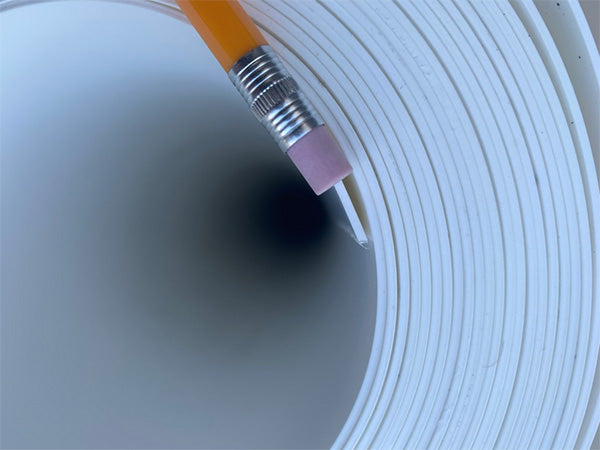

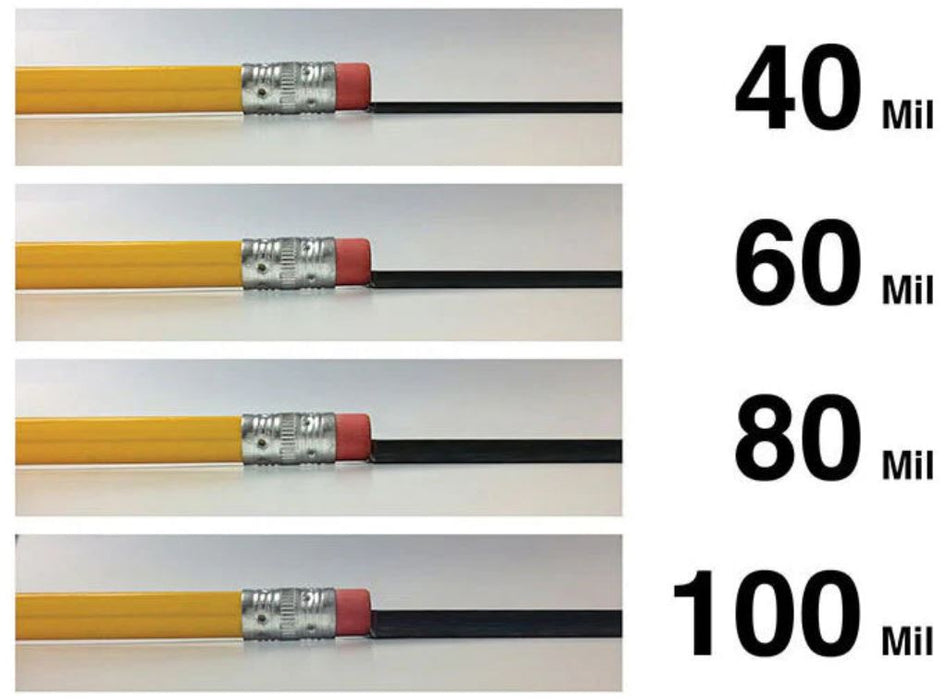

Material Thickness:
40 mil = 3/64”
60 mil = 1/16”
80 mil = 5/64”
100 mil = 3/32”

Note: Our HDPE plastic is only available in roll widths up to 96 inches (8 feet).

Please note that we are unable to provide custom roll lengths.

RELATED PRODUCT:

We also offer rigid HDPE in 48" x 96" sheets in both black and white colors.

View pricing and product info >

HDPE-Sheet-Turn.jpg__PID:509aeb57-539c-4136-894b-cc370725d541

Product Info

Model: HPDE
Material: High Density Polyethylene (HDPE)
Size: Various

Free Shipping
Need a written quote? Request Online
Questions? Call (800) 604-5537

Product Benefits

Waterproof
Commercial Grade
UV Resistant
Non-Biodegradable
Will Not Rot or Mildew
Resistant to Rodent and Insect Damage
100 Year Material Lifespan
Made in the USA

Connecting HDPE Pieces

There are two ways to connect multiple pieces of HDPE together. One method is to overlap the HDPE and use our double sided seam tape to connect the two pieces. The other method is to butt the ends together and use our 17 mil single sided seam tape to create a solid connection.

hdpe-tape_x700__PID:4c8fa401-60db-429d-8466-7ab1567455d4

17-mil-HDPE-seam-tape-.jpg__PID:d29d8466-7ab1-4674-95d4-6009217cdb46

Overlap Method
(for underground installations)

The overlap method is best used when connecting two pieces of HDPE in a buried application. Due to the overlap, a ridge is exposed which is not ideal when installed in exposed vertical or flat installations in high traffic areas as there is a possibility of an object catching on the ridge and pulling the two pieces apart.

In a below ground installation, the large overlap area provides a more water resistant connection as well as enhanced protection against tree and plant root intrusion.

View Tape Pricing and Seaming Instructions >

End to End Method (for exposed installations)

When installing HDPE on a wall, floor or anywhere that is exposed, the end to end method provides a secure connection and does not leave any ridges exposed to potential catching by a person or object.
