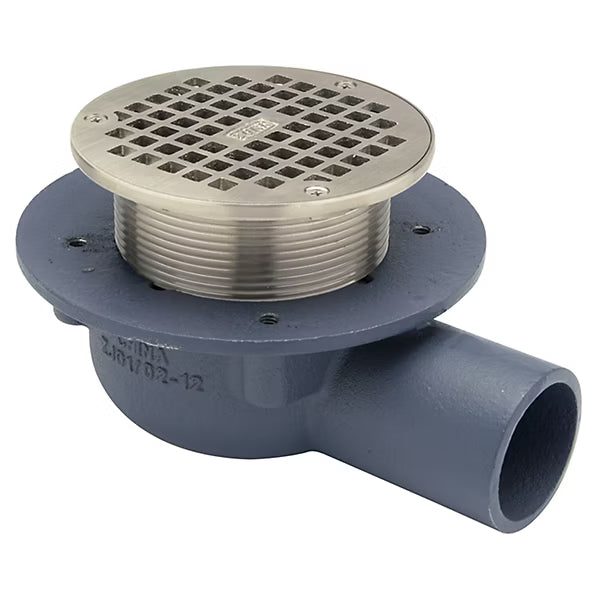

Zurn Z460B - Shallow Body Floor Drain with Side Outlet and “Type B” Strainer

Zurn Z460B - Shallow Body Floor Drain with Side Outlet and “Type B” Strainer

Zurn Z460B - Shallow Body Floor Drain with Side Outlet and “Type B” Strainer

$1,065.98


FREE SHIPPING
SKU ZN460B-1.5NH-5B

The Zurn Z460B is a finish-floor / shower drain engineered to balance visual subtlety with lasting performance. Ideal for showers, wet rooms, bathrooms, and refined interior environments, it provides effective drainage while preserving the elegance of your finished flooring.

Key Features

  • Flush, Low-Profile Grate Design: The drain’s grate is crafted to sit nearly level with surrounding floor surfaces—such as tile, stone, or decorative materials—minimizing visual disruption.

  • Robust, Wet-Area Construction: Built with materials selected for durability and resistance to corrosion, moisture, and regular use in wet conditions.

  • Waterproofing Integration & Debris Protection: Designed to interface securely with the floor’s waterproofing membrane and includes grate or strainer geometry that helps block debris, ensuring clear flow and easier upkeep.

Downloads:

Product Codes: ZN460B-1.5NH-5B, ZN460B-2NH-5B, ZN460B-1.5NH-6B, ZN460B-2NH-6B, ZN460B-1.5NH-7B, ZN460B-2NH-7B, ZB460B-1.5NH-5B, ZB460B-2NH-5B, ZB460B-1.5NH-6B, ZB460B-2NH-6B, ZB460B-1.5NH-7B, ZB460B-2NH-7B, ZB460-2IP-5B-VP-G, ZB460-2NH-5B-C-CP

Frequently Asked Questions

View Our Full Selection of Zurn Drains →

Shipping

  • All items ship for free (standard ground, see map)
  • Call: (800) 604-5537 for pricing and shipping questions. Shipping estimates shown on the map pertain to this specific product only.
  • Orders typically ship in 1-3 business days. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.
NDS-Transit-Map_6d8f0af4-e4db-4159-a7a4-4ca8b8ba8710.gif__PID:713ed80e-353f-4d48-9ae6-2b8b0e0a3d58

Zurn Z460B – Shallow Body Floor Drain with Side Outlet and “Type B” Strainer

A low-profile shallow-pour floor/shower drain built for tight assemblies. Z460B combines a Dura-Coated cast-iron body with a side outlet, clamping capability, and a “Type B” light-duty strainer—delivering fast installs and clean finishes where slab depth is limited.

In technical terms, the Z460B is a shallow body drain with seepage slots and an integral threaded connection for the strainer; it’s offered with No-Hub (NH) or IP (threaded) side outlets in 1½" and 2" sizes. In plain English: it’s a short, sturdy drain that fits where others won’t, ties neatly to waterproofing, and keeps maintenance simple.

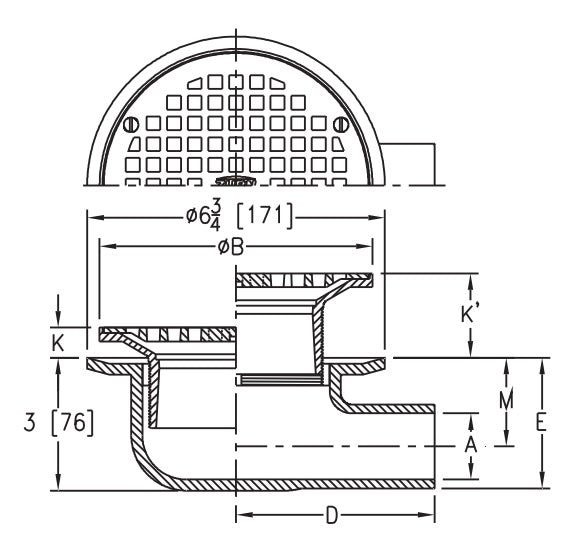

Zurn Z460B shallow body floor drain schematic showing side outlet, shallow body, seepage slots and Type B strainer
Z460B – Dimensional & Component Schematic

Key Features

  • Shallow body for tight floor builds and retrofit projects.
  • Side outlet in No-Hub or IP threaded to match piping constraints.
  • “Type B” light-duty strainer (polished nickel bronze; heel-safe patterns available—verify on submittal).
  • Seepage slots at the clamp interface help manage incidental moisture beneath the finish.
  • Dura-Coated cast-iron body for long service life.
  • Compatible strainers: accepts Z400 series options to suit finish and security needs.

Where Z460B Excels

Ideal for balconies, podiums, showers, and renovations with shallow pours or limited recess. The side outlet simplifies horizontal routing, while the shallow body reduces slab coring and coordination conflicts.

Benefits (Plain English)

  • Fits the space when depth is scarce.
  • Speeds installs with outlet choices that match your riser.
  • Protects finishes—seepage management and serviceable top reduce callbacks.
Zurn corporate logo
Zurn – Shallow-Pour Drainage

Specifications at a Glance

Type: Shallow-body floor/shower drain

Body: Dura-Coated cast iron

Outlet: Side outlet – NH No-Hub or IP threaded

Sizes: 1½" and 2" outlets

Strainer: “Type B” light-duty, P(N)B finish; compatible with Z400 series variants

Options: Common accessories include -C clamp collar, -CP chrome-plated top, -G galvanized body, -VP vandal-proof, -Y sediment bucket (verify availability)

Always verify dimensions, outlet family/size, strainer style, and furnished options on the project submittal.

Installation Highlights

1) Rough-In & Orientation

Set the shallow body at elevation; orient the side outlet toward the horizontal run to minimize fittings.

2) Membrane Tie-In

Integrate the waterproofing at the clamp; seepage slots manage incidental moisture beneath tile or resinous finishes.

3) Top & Test

Install the Type B strainer, set flush, and water-test. Add -VP hardware where tamper resistance is required.

Case Study: Balcony Retrofits with No Extra Core

A hospitality renovation needed balcony drains without deep coring. The team selected Zurn Z460B in 1½" IP threaded to tie into existing laterals. The shallow body fit the thin topping, the clamp interface simplified membrane connection, and maintenance appreciated the accessible, light-duty Type B top. Result: quicker installs and no waterproofing call-backs through the first rainy season.

Frequently Asked Questions

When should I choose No-Hub vs. IP threaded outlets?
No-Hub (NH) pairs with shielded couplings on cast-iron systems; IP threaded suits threaded connections or repairs. Match to your riser material and local standards.
Is the “Type B” strainer heel-safe?
“Type B” is a light-duty, secured strainer in nickel-bronze; heel-safe patterns are available—confirm the exact selection and open area on your submittal.
What sizes are available?
The Z460B body is commonly furnished in 1½" and 2" side-outlet configurations with a choice of NH or IP outlets; typical strainer diameters include 5", 6", and 7" (verify availability and pairings on the cut sheet).
